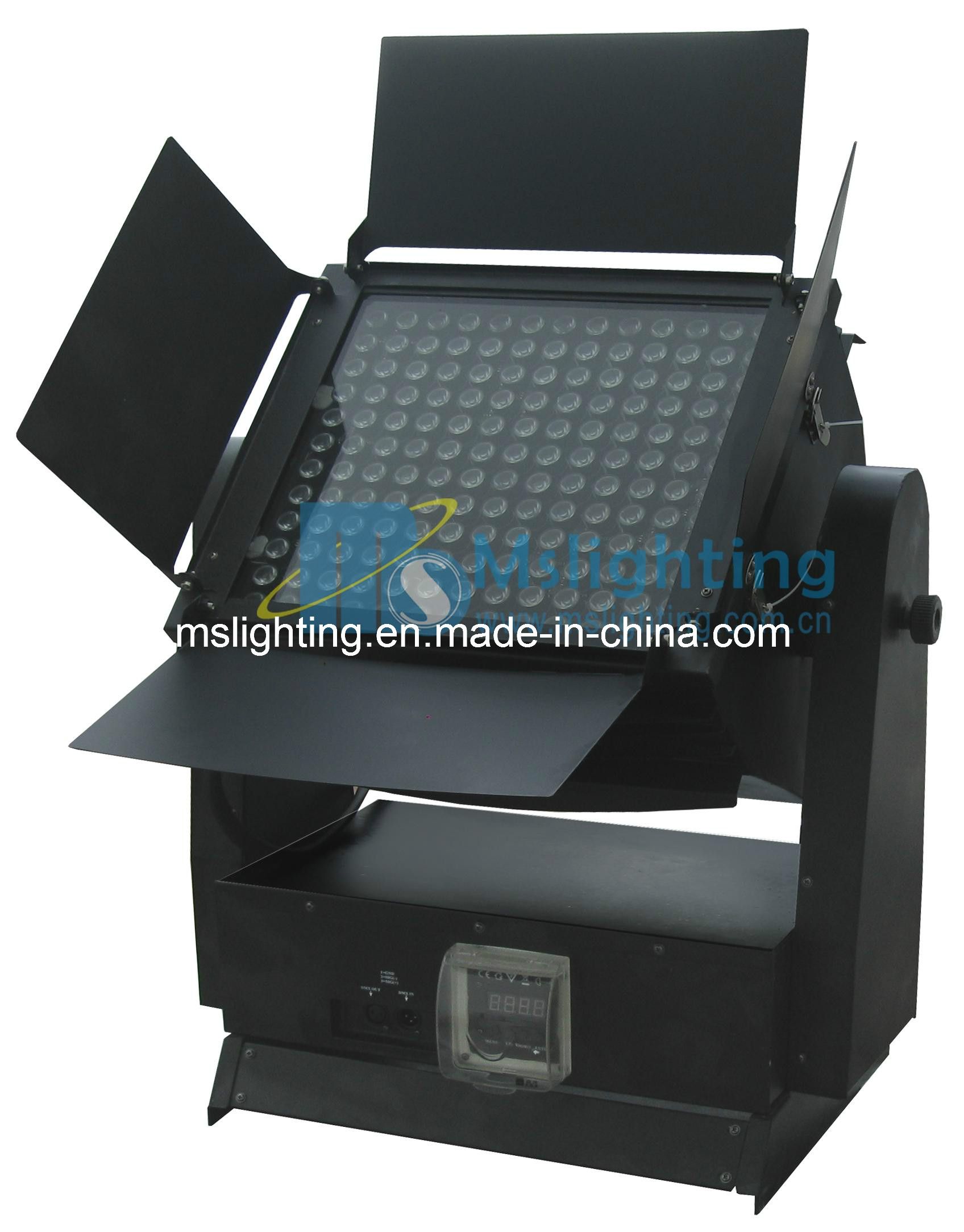

LED Disco Light, DMX LED Light, LED Effect Light, LED Stage Light,
This light adopts in 60*10WRGBW/A 4IN1 Multi-Color LED Light sources. Waterproof IP 65 It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The cover is aluminum alloy with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
|
Specification: |
|
Model |
LED 011G (60*10W RGBW/A 4-IN-1 MULTI-CHIP LED) |
|
DMX Channel |
7CH/4CH |
|
Control panel |
Digital 4 characters alphanumeric |
|
Housing Color |
Black |
|
Operating voltage |
100-230V AC |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity |
|
Connector |
3-PinXLR (In and Out) |
|
NO. of LED |
60*10W RGBW 4-IN-1 MULTI-CHIP LE D LAMP |
|
LED Life Time |
80000-100, 000 hours |
|
Beam Angle |
25° /30° |
|
Power Consumption |
720W |
|
Light Projecting Distance |
5-150M |
|
IP Rating |
Outdoor IP 65 |
|
Operating Temperature |
-20° c-+45° c |
|
Packing Dimension |
79*63*83CM |
|
Gross Weight |
45.00KGS |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGBW colors; continuously variable intensity (256× 256× 256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3. Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, flash, speed/luminance the adjustable |
|
5.7channel Mode and 4channel Mode would change each other in every light |
|
6.7CH Mode DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_ Blue (1-255, Dimmer, from dart to light) |
|
CH 5_ White/AMBER (1-255, Dimmer, from dart to light) |
|
CH 6_ Strobe & Color change/ color gradual change open |
|
CH 7 _ Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
7.4CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_ Blue (1-255, Dimmer, from dart to light) |
|
CH 4_ White/Amber (1-255, Dimmer, from dart to light) |
|
8. Control modes |
0: sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
|
8. Adjustingcolor' s gradual change manual |
|
|
9. Adjustinggradual change' s speed |
