Voltage: AC90V-250V (50/60Hz);
Rated Power: 170W;
LED lamp: Edison 3W high power LED with long life 50000-100000 hours, high luminous efficiency, no radiation and low power consumption etc;
LED Qty: 54LEDS (12red +14green +14 blue +14 white);
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Projection distance: 30M

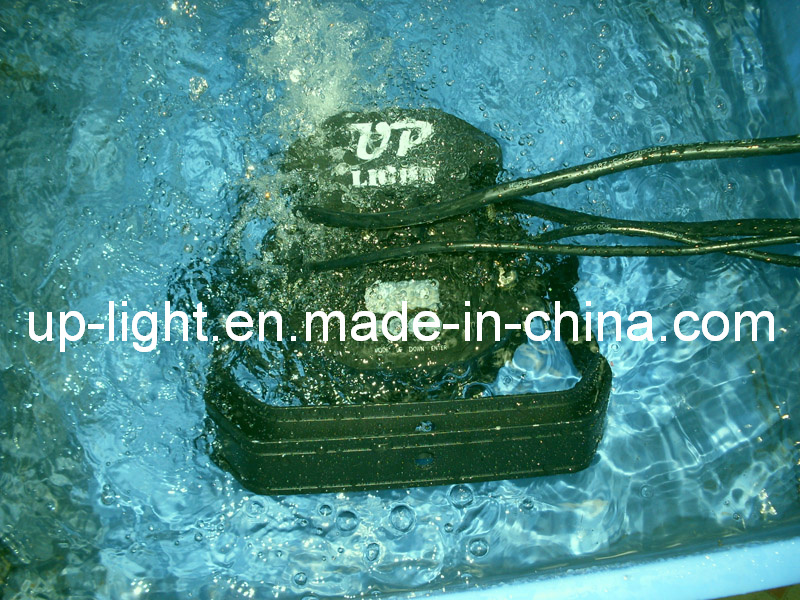

Waterproof grade: IP66
Control Mode: DMX512 signal 3-pins connection control / master-salve control / sound control with self-programming mode, self-running mode, extral control mode;
Channel: 4ch, 8ch two channel modes;
Color: RGBW color mixing system with color rainbow and HSL color mixing adjustment which is the most favorite color mixing way for lighting technician;
Len: High optical transmission acrylic lens;
Beam angle: Standard 15 ° , and 8 ° , 25 ° , 30 ° , 45 ° , 60 ° Is optional;
Dimmer: 0~100% linear dimmer;
Strobe: Multi-function strobe effects from 1 to 25 times per second with color rainbow and can show multi-colors by
Adjusting white LED;
Material: Aluminum alloy plus plastic;
Maximum working terperature: 45° C
Maximum surface temperature: 60 ° C
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert,
DJ effect, disco effect, club effect, party effect etc;
Dimensions: 290*235*235 (mm)
Package size: 300*300*400 (mm)
Gross weight: 9.5kg
|
Channel |
function |
|
Ch 1 |
Lamp on |
|
Ch 2 |
RED |
|
Ch 3 |
GREEN |
|
Ch 4 |
BLUE |
|
Ch 5 |
White |
|
Ch 6 |
Flashing |
|
Ch 7 |
RGB Macro speed function |
|
Ch 8 |
RGB Macro function |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
