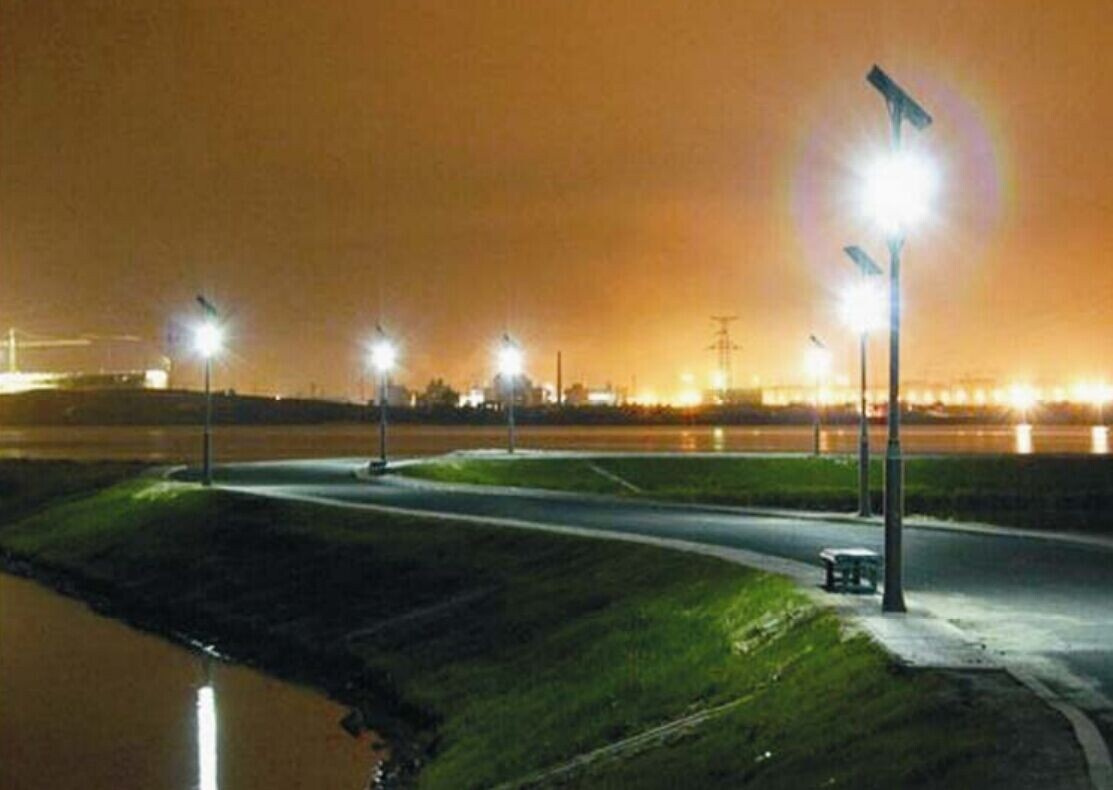

50W Led solar street light
Lamp power: 50W
Panel: 150W
Pole: 7m
Battery: 200AH
Controller: 10A/12V
We can produce LED street lights from 30W to 150W.
Item |
Description |
Pole and
Solar panel bracket |
Height:7m.
Diameter:70/180mm,3.5mm thickness,
flange:320*320*16mm
hot deep galvanized Plastic electrostatic spraying,
working life≥25 years. |
Led Lamp |
lighting source:50W
size:580*245*70mm
weigh: 5.6kg
aluminum alloy die-casting molding with toughened glass
working life>50000 hours. |
Panel |
maximum power:150W
polysilicon solar panel
working temperature:-40ºC--85ºC
Power tolerance:±5%
working life ≥20 years |
Battery |
200AH
Gel-battery
working life≥3 years |
Battery
Box |
200AH battery box/engineering plastics,
working life≥20 years |
Controller |
10A/12V working life≥3 years
protection:
@Overheating @Over discharging @Over charging
@Load overload @Load short circuit
@PV reverse polarity @Battery reverse polarity |
The cage |
material: Iron |
