50w led high bay light led industrial high bay lighting 100w led high bay light
Product Feature:
1. Use high-brightness Cree led as the lighting source, using a unique multi-chip integrated single source design, choose imported semiconductor chip, has the feature of good thermal conductivity, low light decay, pure light color and less shadow
2. Wide voltage input and constant current for led to work, doesn't affect the brightness and lifetime of the lighting
3. Unique 6063 stamping aluminum heat sink design, combine with high thermal grease and vent fin cooling design, effectively conduct the heat, so reduce temperature of the body, fully ensure lifetime of the lighting source and power supply. Surface of the radiator has anodic oxidation processing ,beautiful and compact design;
4. In the led body has attached U structure copper pipe ,greatly accelerate the heat conduction and prolong life time of the leds;
5. Green and environmental protection. No ultraviolet, no infrared, no thermal radiation and mercury pollution ;
6. As a kind of cold light source, led light will not lead to color fading;
7. Using high-quality reflectors, has downy light, high light efficiency ;
8. High CRI ,light the object more clear and more real, have different color temperature for choice ;
9. Fast response, no flash, low glare, immediately reach to the max luminous flux output when light on;
10. Solid-state light source, strong shock resistance, convenient for transportation and installation, good safety ;
Application
Workshop ,factory, warehouse, highway toll station , petrol station ,supermarket, exhibition hall, gymnasium and some other place that need high light .

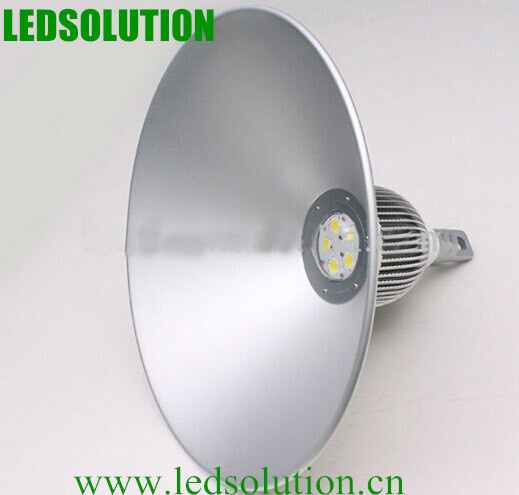

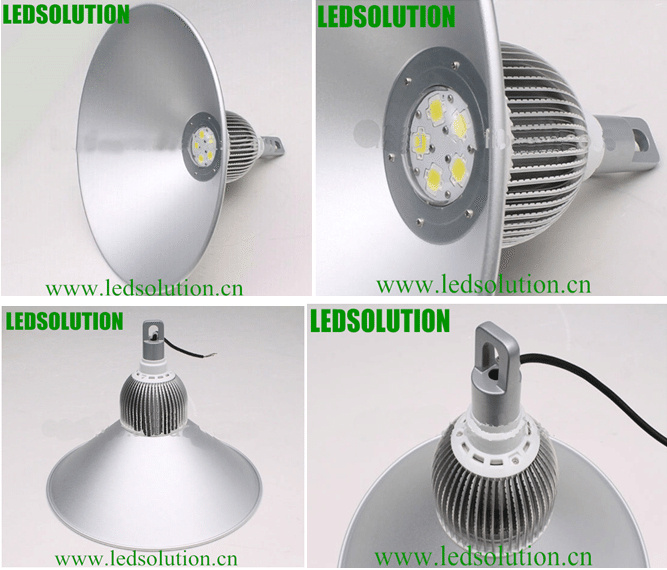

product picture
Instruction:
- Before installation ,please read carefully the product specification to make sure the operating environment conforming to the conditions.
- Turn off the switch before connecting to the power.
- Lamps and lanterns should be installed by a qualified electrician, wiring connection should conforming to the IEE electrical standards or national standards ;
- This product is suitable for indoor use ;
- Please do not make the lamp working under the condition of voltage too high or too low for a long time, which will affect the function of normal use and lifespan ;
- Do not install the lamp inside flammable objects, keep off the lamp with thermal insulation material at any time.
- Cut off the power when cleaning, replacement, or installing the lamp, to ensure the personal safety;
-
- Cut off the power before cleaning the lamp! Please do not use any chemical agent, it may discoloration or damage the lamps. Firstly using the soft cloth with soapsuds then clean up with dry cloth.
- Do not take apart the product yourself, to avoid damage any internal components. Take apart any components may void the warranty.
1.Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
Model NO.
|
Item No
|
LSHL-805-002
|
LSHL-1005-002
|
LSHL-1205-002
|
LSHL-1505-002
|
LSHL-2005-002
|
Optical Parameters
|
LED Light Source
|
60PCS*CREE XBD
|
80PCS*CREE XBD
|
90PCS*CREE XBD
|
120PCS*CREE XBD
|
182PCS*CREE XBD
|
Luminous Flux(lm)
|
8000±10%
|
10000±10%
|
12000±10%
|
15000±10%
|
20000±10%
|
CCT(K)
|
6000-6500
4000-4500
2800-3200
|
6000-6500
4000-4500
2800-3200
|
6000-6500
4000-4500
2800-3200
|
6000-6500
4000-4500
2800-3200
|
6000-6500
4000-4500
2800-3200
|
CRI(Ra)
|
>65
|
>65
|
>65
|
>65
|
>65
|
Electrical Parameters
|
Input Voltage(V)
|
AC100-240V 50-60Hz
|
AC100-240V 50-60Hz
|
AC100-240V 50-60Hz
|
AC100-240V 50-60Hz
|
AC100-240V 50-60Hz
|
Total Power(W)
|
80W
|
100W
|
120W
|
150W
|
200W
|
Power Factor
|
0.95
|
0.95
|
0.95
|
0.95
|
0.95
|
Transfer efficiency
|
≥88
|
≥88
|
≥90
|
≥90
|
≥90
|
Beam angle
|
45°/90°/120°
|
45°/90°/120°
|
45°/90°/120°
|
45°/90°/120°
|
45°/90°/120°
|
Lifespan (Hrs)
|
30000 ( Light Decay <30% )
|
30000 ( Light Decay <30% )
|
30000 ( Light Decay <30% )
|
30000 ( Light Decay <30% )
|
30000 ( Light Decay <30% )
|
Structural Parameters
|
Material
|
6063 Aluminum
|
6063 Aluminum
|
6063 Aluminum
|
6063 Aluminum
|
6063 Aluminum
|
Product height
|
286
|
326
|
356
|
356
|
466
|
Net weight(Kg)
|
2.88
|
3.43
|
4.23
|
4.24
|
7.36
|
Body color
|
Silvery
|
Silvery
|
Silvery
|
Silvery
|
Silvery
|
Integrated Parameters
|
Working Temperature
|
-20 ~+45 ( 25 Working Best )
|
-20 ~+45 ( 25 Working Best )
|
-20 ~+45 ( 25 Working Best )
|
-20 ~+45 ( 25 Working Best )
|
-20 ~+45 ( 25 Working Best )
|
Storage Temperature
|
-20 ~+55
|
-20 ~+55
|
-20 ~+55
|
-20 ~+55
|
-20 ~+55
|
Working Humidity
|
40-90%RH
|
40-90%RH
|
40-90%RH
|
40-90%RH
|
40-90%RH
|
IP Grade
|
65
|
65
|
65
|
65
|
65
|
Warranty(year)
|
5
|
5
|
5
|
5
|
5
|
