Home LED Light Products 50W Integrated All in One LED Solar Light for Highway/Garden with ISO, CE Approved

50W Integrated All in One LED Solar Light for Highway/Garden with ISO, CE Approved

50W Integrated All in One LED Solar Light for Highway/Garden with ISO, CE Approved
Price: US $ 350-380/Piece
Trade Terms: FOB,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T



50W  Integrated All in One LED Solar Light For Highway/Garden with ISO,CE  Approved


1.JINSHANG Customized service included:

1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee. Accept customized shell color.
2. Customized working method:
Motion sensor: LED full power lighting when there is people/vehicle passing-by, LED 1/3 power lighting when there is no people/vehicle passing.
Induction time: 60s, sensing distance: 9-10m.
Timing control: Customized time period with different working power.
Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.
New intelligent timer control: LED lamp will adjust working power automaticallly according to the sunshine duration and battery remaining capacity, to
ensure the lamp will keep lighting full 12 hours at night, by adopting this method, the LED lamp could sustain up to 5-7 rainy days.
3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip
Customized color temperature (2700-6500K) upon request.
Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time.
4. Accept OEM logo printing(Qty above 50 units free of charge).
5. Mounting method: Screw and bracket fixing or Mounting tube.
6. Additional function: Camera supported, AC charge supported, Remote control etc.



2.General Introduction:

Our All in one solar street light which integrates the green-energy parts solar
Panel, LED lamp and the Li-Fe battery into a single product, is with human Intelligence induction system to gain the solution of low-energy, long-time, High-luminance and free maintenance. And the same time, it's convenient in the Shipment and installation.


3.Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.


4.Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control, and Provide light for the darkness area, the human intelligence induction system can Save the energy when the lighting is not necessary



5.Solar street light consists of 5 main parts:


1.Solar Panel
Solar panel is one of the most important parts of solar street lights, as solar panel will convert solar energy into electricity.
There are 2 types of solar panel: mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.

2.Lighting Fixture
LED is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower than HPS fixture which is widely used as lighting source in Traditional street lights. LEDs lack of warm up time also allows for use of motion detectors for additional efficiency gains.

3.Rechargeable Battery
Battery will store the electricity from solar panel during the day and provide energy to the fixture during night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights.

4.Controller
Controller is also very important for solar street light. A controller will usually decide to switch on /off charging and lighting. Some modern controllers are programmable so that user can decide the appropriate chance of charging, and lighting.

5.Pole
Strong Poles are necessary to all street lights. And wind resistance should also be taken into consideration when choosing the pole.

6.50W LED Solar Light Specification
Solar Panel Max Power 18V70W(High efficiency monocrystalline silicon)

 Life time 25 years
 Battery Type Lithium battery

 Life time 5 years
 LED Lamp Max power 12V 50W
 (With sensor) Led chip brand Bridgelux from USA with high brightness

 Lumen(LM) 5000-5500LM

 Life time 50000hours

 Viewing angle 120 degree
 Charge time By sun  7 hours
 Discharge time Saving power  more than 24 hours

 Full power  more than 10 hours
 Working temp. range(C) -20C~+60C
 Color temp. range(k) 6500k-7000k
 Mounting height range(m) 7-8m
 Space between light range(m) 25-30m
 Main lamp materials
 Aluminum alloy
 Certificate
 CE/ROHS/IP65
 Warranty period
 2 years

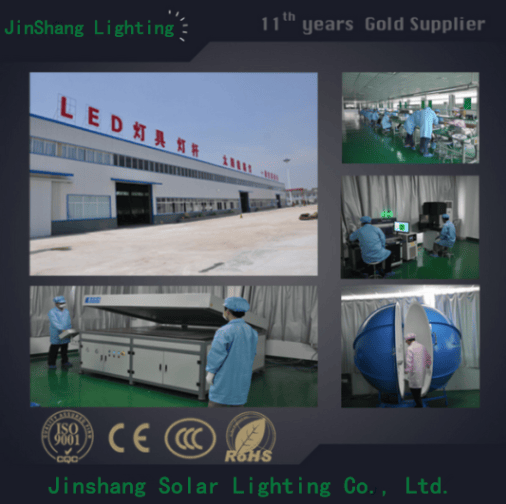

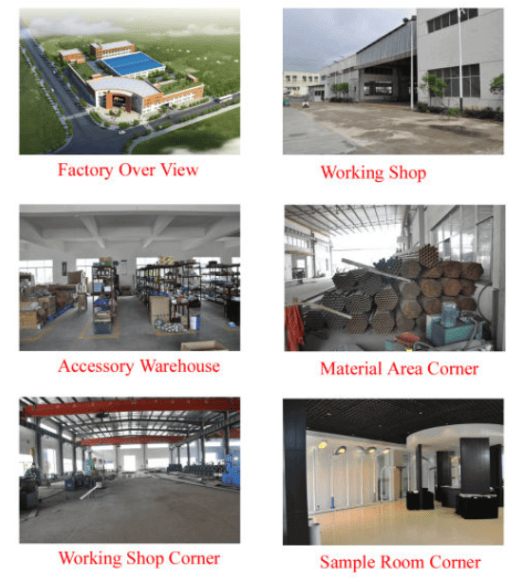

5.FACTORY SHOW


6.Questions for trade

1.Are you manufacturer or trading company?
We are factory on
GuoJi Industrial Park, North Suburb of Yangzhou City, Jiangsu Province, Welcome to visit us

2. Can you arrange all shipping for me?
  Yes,we can arrange all the process  of shipping.If  you have other goods need to source from China,we can mix container for you

3. What's the shipping way

FedEx/DHL/UPS/TNT for samples, Door-to-Door;

By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

5.Payment Terms

T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.

6. MOQ: 1pcs

7.Can you provice sample?

   Yes,we can provide free sample
Prod Model: JS-A20156150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality Warranty: 5years
LED Brightness: Not Less Than 120lm/W
LED Colour Temperature: 5500-6500k for Choice
Solar Controller: IP65 Waterproof and Intelligent
Lamp Choosing: 15W/24W/30W/42W/60W/70W/80W/100W/120W
Solar Panel: Polycrystalline. High Efficiency
Charge Controller: Automatic Light and Time Control
Average Life: >8000h
Export Markets: North /South America, Southeast Asia, Africa
Light Source: Energy-saving Lamps
Lamp Body Material: Aluminum Alloy
Light Type: Energy Saving
Color Temperature: Warm White
Technics: Electroplating
Illumination Time: 8h
Charging Time (',H): 6
Usage: Street
IP Rating: IP65
Certification: ISO
Voltage: 12/24V
With Light Source: With Light Source
Power: 15W-60W
Cell Type: Lead Acid Bettary
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
