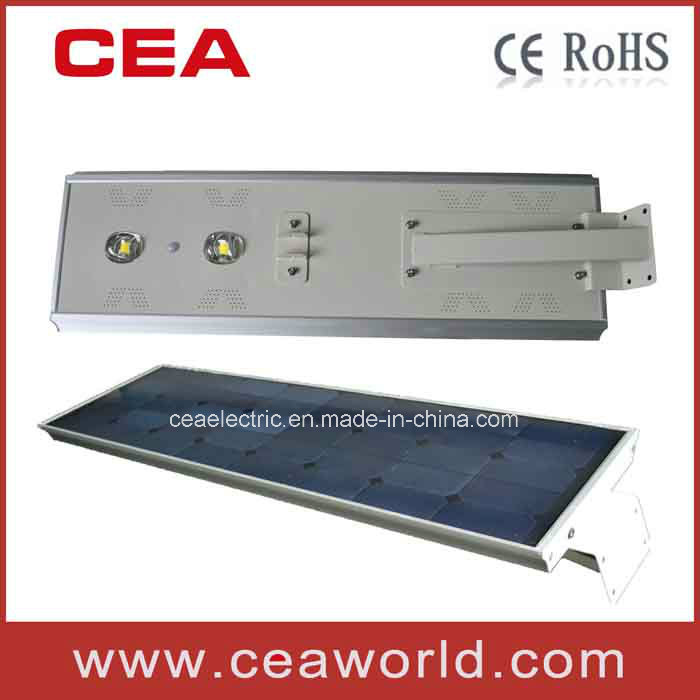

50W COB type Integrated LED solar Street light
Specfication:
1.Solar panel
Max power:18V 60W (high efficiency monocrystalline silicon)
Life time:25 years
2.Battery Type:12.8V 24AH (Lithium iron phosphate Battery); brand:mottcell
Battery Life time:5 years
3.LED Lamp(with sensor)
Max power:12V 30W
Led chip brand:Bridgelux from USA with high brightness
Lumen (LM):6250-6500lm (125-130lm/w)
Life time:50,000hours
Viewing Angle:120°
4.Controller Specifications:
12V 10A
MPPT intelligent controller,light and time control,auto ON/OFF
Overload Protection;Over Charging Protection;Over Discharge protection
Short circuit protection;Anti reverse polarity protection
Cutting off by itself;Anti pouring charge;Anti thunder
5. other spec:
Accessories(For installation):Installation bracket/Nuts/Bolts
Charge time(by sun):6 hours (with enough strong shine)
Discharge time(full power):more 15 hours
Discharge time(Saving mode):more 30 hours
Working Temperature Range( ºC ):'-30ºC~+70ºC
Colour temperature:6000-7500k (can customized)
Mounting height:7-9m
Space between light:25-30m
Lamps material of main:Aluminium alloy
Certificate:CE / ROHS / IP65
Warranty period:2 years
