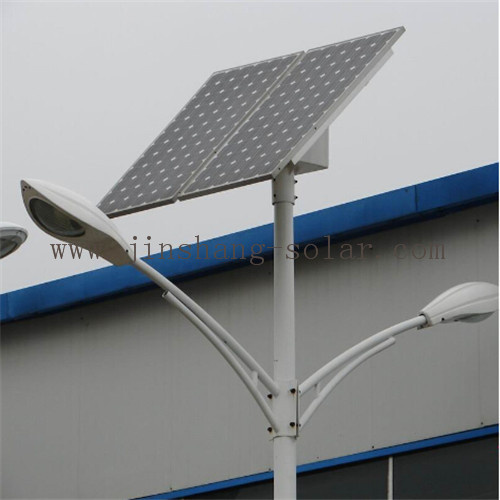

Brief Specification for 20W and 40W double arm Solar LED Street Light with 7m pole, designed based on average solar radiation condition 4.5KWH, Lighting hours: 10 Hrs/Day and 3 rainy days for backup.
Configuration
20W and 40W double arm solar LED street light | 20W/24V LED lamp |
40W/24V LED lamp |
240W/24V solar panel (120W/24V *2) |
10A/24V charge controller |
120AH/24V GEL battery |
120/24 type underground battery box |
7m galvanized pole with 2 arms and brackets. |
Detailed technical parameter
Detailed technical parameter for 20W double arm solar LED street light |
Working Time:10 hours/day, 3 rainy or cloudy dasy backup |
Component Name | Technical Parameter for components |
20W/24V LED lamp | LED Power: | 20W |
Power Voltage: | 24VDC |
Total Lums: | 2500lm |
Color Temperature: | 6500K |
Illumination: | 4.5M≥28Lux |
LED Quantity: | 1W*20PCS |
Luminous efficiency: | 140~150Lm/W |
CRI: | >80 |
IP Protection: | IP65 |
Illumination Area: | 18*8M |
LEDs chip: | BridgeLux from USA |
Light transmittance: | ≥90% |
Size: | 520*220*60MM |
Weight: | 4.5Kgs |
40W/24V LED lamp | LED Power: | 40W |
Power Voltage: | 24VDC |
Total Lums: | 4600lm |
Color Temperature: | 6500K |
Illumination: | 7M≥28Lux |
LED Quantity: | 1W*40PCS |
Luminous efficiency: | 140~150Lm/W |
CRI: | >80 |
IP Protection: | IP65 |
Illumination Area: | 22*8M |
LEDs chip: | BridgeLux from USA |
Light transmittance: | ≥90% |
Size: | 520*220*60MM |
Weight: | 4.5Kgs |
120W/24V Solar panel *2 | Nominal Power(W): | 120W/24V |
Type of cell: | Mono or Poly |
Encapsulation: | Glass/EVA/Cells/EVA/TPT |
Cells efficiency: | 17.88% |
Maximum power(W): | 122.5W |
Voltage at max power(VMP): | 35.38V |
Current at max power(IMP): | 3.39A |
Open circuit voltage(VOC): | 43.21V |
Short circuit current(ISC): | 3.97A |
Dimension(MM): | 1235*670*35MM |
Weight(KGS): | 12.6KGS |
10A/12V charge controller | Standard power: | 10A/12V |
Rated voltage(VDC): | 12V |
Rated current(A): | 10A |
Charge recommended max. current(A): | 10A |
The biggest open-circuit voltage(V): | 50V |
Charge(V) | Protection: | 14.4±0.2 |
Floating charge: | 13.2~13.6 |
Restore: | 13.2±0.2 |
Temperature compensation: | -13.2mV/ºC |
Low voltage(V) | Disconnecct: | 10.8±0.2 |
Restore: | 13.2±0.2 |
Over voltage(V) | Cut off: | 17.5±0.2 |
Restore: | 11.5±0.2 |
Current without load (mA): | <10MA |
Application ambient temperature: | -20ºC~+70ºC |
IP Protect: | IP67 |
Protect function: 1. Battery reverse connection protection 2. Solar panel reverse polarity connection protection 3. Over load and short circuit protection 4. Back flow from battery to solar module protection 5. Battery open circuit protection 6. Lighting surge protection(in case necessary) 7. Over-charging and over-discharging protection 8. LED display 9. Thunder strike protection; 10. Time control and light control. |
120AH/12V GEL battery *2 | Nominal Voltage(V): | 12V |
Capacity(10HR,25ºC): | 120AH |
Dimension | Length(MM) | 406MM |
Width(MM) | 172MM |
Height(MM) | 210MM |
Total Height(MM) | 235MM |
Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 123AH |
10 hr rate: | 118AH |
5 hr rate: | 82AH |
1 hr rate: | 66AH |
Weight(KGS): | 32.0KGS |
120 Type battery box | Material: | PP(120/24) |
7M glavanized pole(with double double 1.2m arm and brackets) | Standard height: | 7M |
Material: | Q235 |
Top diameter(MM): | 76MM |
Bottom diameter(MM): | 155MM |
Thickness(MM): | 3MM |
Baseplate(MM): | 280*280*14MM |
Anchor bolts(MM): | 4*M18*600MM |
Hot dip galvanized thickness not less than 80um |
Working principle
1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
Applications
Highways and parkways
Residential areas and pedestrian walkway lighting
Commercial areas and industrial complex
Features:
1. Easy installation, no complex wiring ,just need to build a cement foundation and fixed with stainless steel screws.
2. Free,Once the solar lights are installed, customers need not to pay electricity fee.
3.Safe, Solar street lights are low-voltage products without security risks, the system runs reliably.
4. Long service life, The service life of solar lights can reach up to more than 10 years, that of solar module is 25years.
5. Intelligent,The switches of solar lights are full-automatic. When pedestrian less at night, collector streets solar lights can reduce the output power of light source to save electricity.
6. Applicability, The solar energy comes from nature, so it can be used in all sunshine place.
7. We are the designer and manufacturer of this solar street light, small order is available, wholesales is welcomed.
Why Choose Jinshang Lighting
1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our Competitive Products
1. Solar Street Lights & LED Street Lighting 15W-120W; |
2. Solar Garden Lights & Solar Landscape Lights 5W-30W; |
3. Solar Battery: 4.5Ah-250Ah/12V, 200Ah-3000Ah/2V; |
4. Solar Panels & Solar Modules 5W-300W Poly & Mono ; |
5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating; |
6. Solar Home Lighting System/Kits : 5W-5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power |
Our advangages
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients:
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice:
1) Your inquiry will be replied in 24 hours
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) Protect your sales area, ideas of design and all your private information
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.
please inform us below information:
1. The installation city
2. LED lamp power
3. Light pole height
4. Lighting hours per nigh
5. Backup rainy days
6. Quantity you need
