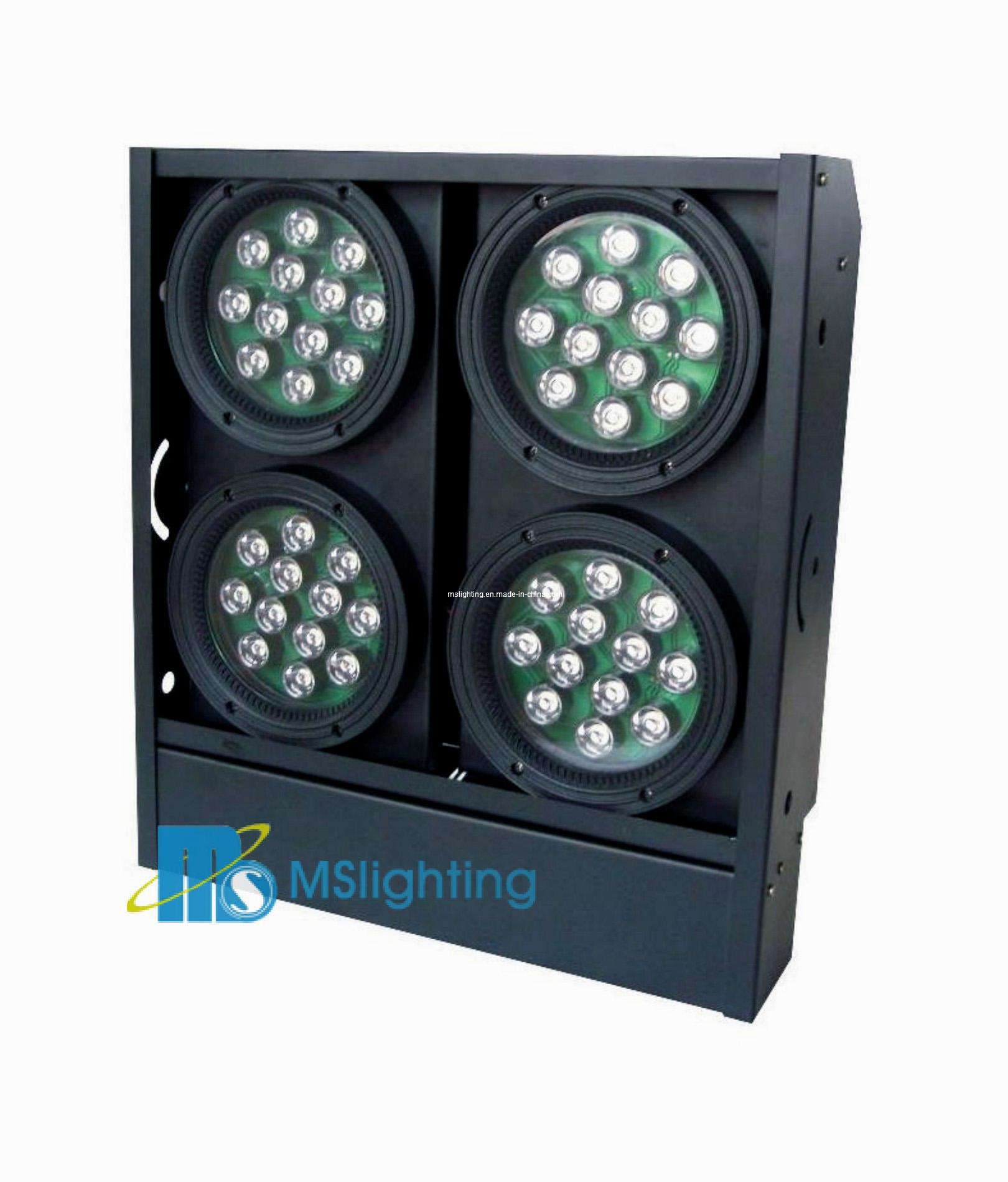

LED Strobe light/LED High Power strobe Light/LED Stage light and LED Effect light/DMX LED light, LED Color Change Light, LED Blinder Light, LED 4EYE Light, LED WASHER
Light Source:
48 pieces 3W LED: 16R, 16G, 16B
Color Range: 16.7 million additive RGB colors; Continuously variable intensity (256× 256× 256=16777216)
Power Supply: 60W
Control Method: DMX 512 (6CH)
Input voltage: AC 90-260V/ 50-60Hz
Beam Angle: 10° ~ 30°
Cover: Aluminum alloy
Working Voltage: 12VDC
Environment Temperature: -20oC+ 50oC
Life Time: 80000 hours
Protocols: DMX 512
Control channel: 6CH
Control modes: Master/slave. Stand alone. Sound
Data in/out: Locking 3-pin XLR
Function: It is max mix color, color change, flash, speed/luminance the adjustable
Thermal:
Maximum ambient temperature: 40°
Maximum housing temperature: 60°
Housing Material |
Aluminum |
Housing Color |
Black/White |
Aperture Cover |
Aluminum |
Operating voltage |
90-130V AC / 176-254V AC |
Output voltage |
DC 24-36V |
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
Lamp Luminous Efficiency(lm/w): |
99% |
Key point: |
Temperature-protected easily |
Usage: |
Theatres, stage , robust housing |
Certification: |
CE,EMC, LVD, RoHs |
LED Life Time |
80000-100,000 hours |
Beam Angle |
6-120degree to choose |
Power Consumption |
200W |
Light Projecting Distance |
5-200M |
IP Rating |
Indoor |
Operating Temperature |
-20ºC-+45 ºC |
Power In: |
Fixed |
CRI (Ra>): |
95 |
warranty: |
2 year |
Compatibility: |
1. Color Range:16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
2. Dimming 0-100%with regulated constant color control |
3.Strobe: 10 Flashed per second (any color) |
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function. |
5. 6 channel Mode and 3channel Mode would change each other in every light |
6. 6CH Mode DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
CH 2_ Red (1-255, Dimmer, from dart to light) |
CH 3 _ Green (1-255, Dimmer, from dart to light) |
CH 4_Blue (1-255, Dimmer, from dart to light) |
CH 5_ Strobe & Color change/ color gradual change open |
CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
7. 3CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
CH 2 _ Green (1-255, Dimmer, from dart to light) |
CH 3_Blue (1-255, Dimmer, from dart to light) |
8.Control modes |
0: Sound activity mode |
1. DMX control mode |
2. Adjusting the color manual |
3. Adjusting the brightness manual |
4. Adjusting the strobe manual |
5. Adjusting the strobe speed manual |
6. Master-slave control mode, as the master |
7. Sound activity synchronization mode |
8. Adjusting color's gradual change manual |
9. Adjusting gradual change's speed. |
9. Thermal: |
Maximum ambient temperature: 40° |
Maximum housing temperature: 60° |
|
|
Packaging & Delivery |
|
Packaging Detail: |
Standard Export packing by carton or OEM package |
Delivery Detail: |
2-5 days for sample , 5-12 days for mass quantity order |
Shipping |
By DHL, UPS, FedEx, EMS or TNT, boat ,Air. |
Guarantee |
we guarantee that all the product have been shipped after the testing , if there any damage caused in transit , we can not control the entire process , if so , we are happy to communicate with you friendly solution. |
Items have 2 YEAR warranty. ( Except lamp-house). |
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product |
