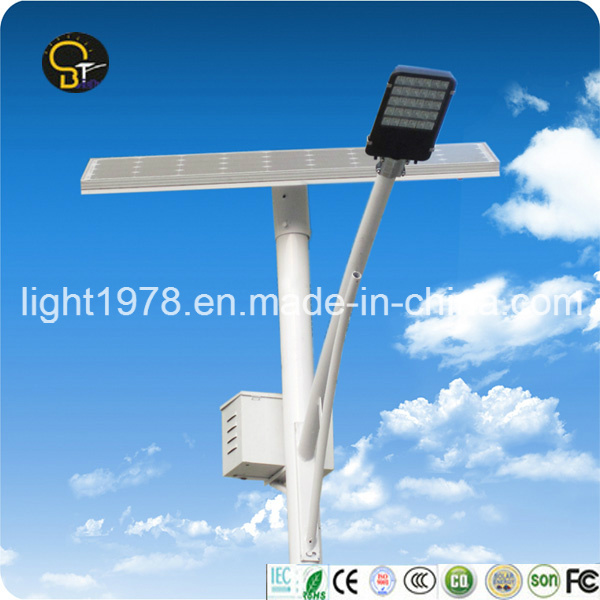

45W LED Solar Street Lighting System with 8M pole
System lighting time: 11hours/night, back up 3-4days no sunshine;
Configurations:
1. LED Light: 45W 24V LED, 5850LM, white color, 6500K, lifespan: 50000-100000Hrs;
2. PV Panel: 90W*2PCS for 24V Lighting, Crystalline Silicon, Aluminum Frame, Tempered Glass.
3. Solar Battery: 100Ah 12V*2PCS, sealed type, gelled, deep cycle;
4. Solar Controller: 10A/24V controller, automatic light control and time control system;
5. Pole: 8M pole, steel, Hot-Dip Galvanized, Plastic Coated, Rust Proof, Lifespan: More than 20 years;
Notes:
The design of above is our normal design, normally when we give the details design, we need to know below questions:
First:
1). The power of your required LED light? Or the height of the pole?
2). This project belong to which country?
(different country different solar radiation different designs)
3). How many hours/night the light can work?
Second: If you have no idea on the above question, we could design for you, please inform us:
1). What's the width of road?
2). What's your request on the power of the light source?
The end:
Please choose your favorite model from our website or the catalogue.
Hope you could satisfy with our professional service, welcome your order.
|
Design base on Solar Radiation 5.0KWH |
|
System Working Condition |
11hours/night lighting time and automatically 3days. |
Light source: High Power LED
Lifespan: 50000-100000Hrs |
45W 24V LED, 5400LM, Water-proof, IP65,
2800-6500K(Warm Color or White Color),
Warranty:5 Years |
Solar Panel:
Lifespan:20-25 years |
90W*2PCSfor 24V Lighting, Crystalline Silicon.
Warranty: Workmanship for 5 years,
Adding Aluminum Frame, Tempered Glass.
90% of minimum warranted power output over 12 years,
80% over 20 years |
Solar Battery
Lifespan:5-8 years |
100Ah/12V*2PCSfor 24V, Gelled, Full Sealed Type,
Deep cycle,Maintenance Free, Hang on the pole.
Warranty:2 Years |
Intelligent Micro-computer
Controller
Lifespan:5-10 years |
10A/24V, Water-proof, IP68, Warranty:2 Years
Automatic Light Control and Time Control System,
Switch on Automatically with Light Sensor;
Over-charging/discharging Protection
Reverse-connection Protection |
|
Pole Height |
8M pole, thickness 3.5mm, Steel, Hot-Dip Galvanized.
Plastic Coated, Rust Proof,Warranty:2 Years
Resistant to Wind: ≥150KM/H
Lifespan: More than 20 years
Warranty:5 Years |
|
Working temperature: |
-30n degree to +65 degree |
|
Fittings |
Lamp Arm, Solar Panel Brackets, Battery Box, Screws,Cable, etc.
Battery Box: Water proof junction box,Galvanized Steel |
