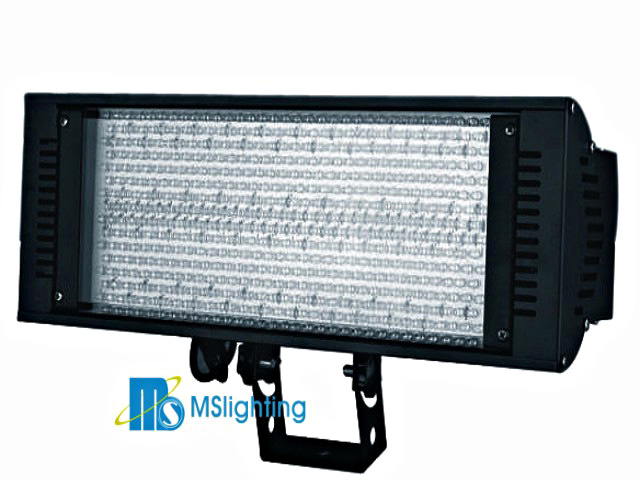

LED 07: 198PCS of F10mm RGB LED Lamp
Color Range: 16.7 million additive RGB colors; continuously variable intensity (256× 256× 256=16777216)
Power Supply: 40W
Control Method: DMX 512 (6CH)
Input voltage: AC 90-265V/ 50-60Hz
Beam Angle: 10° ~ 30°
Cover: aluminum alloy
Working Voltage: 12VDC
Environment Temperature: -20oC+ 50oC
Life Time: 50000 hours
DMX Channel: 6CH
CH 1 - General dimmer (1-255, from dark to light)
CH 2 - Red (1-255, Dimmer, from dark to light)
CH 3 - Green (1-255, Dimmer, from dark to light)
CH 4 - Blue (1-255, Dimmer, from dark to light)
CH 5 - Strobe & Color change/ color gradual change open
CH 6 - Strobe & Color change/ color gradual change speed adjustment
(1-255, Speed adjustment, from slow to fast)
Control Method:
Protocols: DMX 512
Control channel: 6CH
Control modes: Master/slave. Stand alone. Sound
Data in/out: locking 3-pin XLR
Function: it is max mix color, color change, flash, speed/luminance the adjustable
Control modes:
The control mode is displayed by the first number. When you press MODE, the number will increase one gradually, from 0-9 in circle.
0: sound activity mode
1. DMX control mode
2. Adjusting the color manual
3. Adjusting the brightness manual
4. Adjusting the strobe manual
5. Adjusting the strobe speed manual
6. Master-slave control mode, as the master
7. Sound activity synchronization mode
8. Adjusting colors gradual change manual
9. Adjusting gradual changes speed.
10. Adjusting Color change auto
Thermal:
Maximum ambient temperature: 40°
Maximum housing temperature: 60°
Save function:
When you adjusting the state that you like, Press ENTER all the time, and then press UP into save function state. This is also the state that you open in next time, or power-off state
|
Housing Material |
Aluminum |
|
Housing Color |
Black/White |
|
Aperture Cover |
Aluminum |
|
Operating voltage |
90-130V AC / 176-254V AC |
|
Output voltage |
DC 24-36V |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
Lamp Luminous Efficiency(lm/w): |
99% |
|
Usage: |
Theatres, stage , robust housing |
|
Certification: |
CE,EMC, LVD, RoHs |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
6-120degree to choose |
|
Power Consumption |
40W |
|
Light Projecting Distance |
5-50M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20ºC-+45 ºC |
|
Power In: |
Fixed |
|
CRI (Ra>): |
95 |
|
warranty: |
2 year |
|
Compatibility: |
|
1. Color Range:16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function. |
|
5. 8 channel Mode and 5channel Mode would change each other in every light |
|
6. 8CH Mode DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_Blue (1-255, Dimmer, from dart to light) |
|
CH 5_White (1-255, Dimmer, from dart to light) |
|
CH 6_Amber (1-255, Dimmer, from dart to light) |
|
CH 7_ Strobe & Color change/ color gradual change open |
|
CH 8 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
7. 5CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_Blue (1-255, Dimmer, from dart to light) |
|
CH 4_White (1-255, Dimmer, from dart to light) |
|
CH 5_Amber (1-255, Dimmer, from dart to light) |
|
8.Control modes |
0: Sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8. Adjusting color's gradual change manual |
|
9. Adjusting gradual change's speed. |
|
9. Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
|
|
|
Packaging & Delivery |
|
|
Packaging Detail: |
Standard Export packing by carton or OEM package |
|
Delivery Detail: |
2-5 days for sample , 5-12 days for mass quantity order |
|
Shipping |
By DHL, UPS, FedEx, EMS or TNT, boat ,Air. |
|
Guarantee |
we guarantee that all the product have been shipped after the testing , if there any damage caused in transit , we can not control the entire process , if so , we are happy to communicate with you friendly solution. |
|
Items have 2 YEAR warranty. ( Except lamp-house). |
|
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product |
