GDOT Overview:

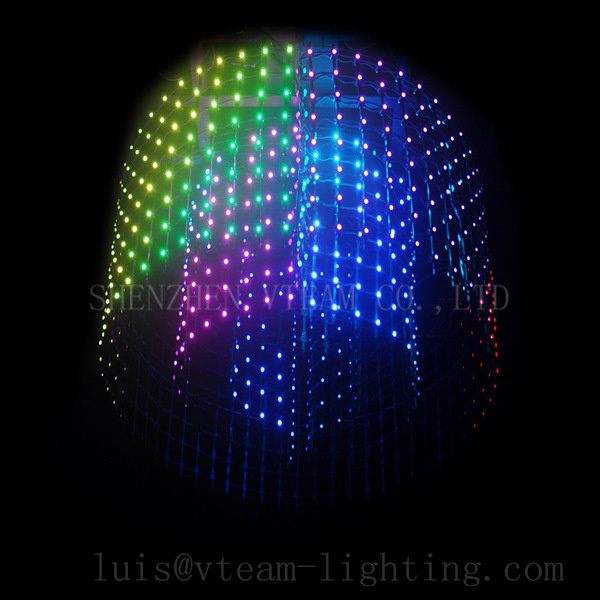

GDOT is a highly transparent, full color soft mesh LED display system. It's featured with flexible installation, lightweight body, high transparency, which are convenient for various installation ways. Thus they can be curved, folded, scrolled, and hanged freely as you like. Total clear body gets very delicate outlook and high transparency, perfectly suiting for any artistic design, or other creative ideas.
Main Advantages:
1, Completely transparent material, Cool display effect.
2, A creative way to realize the ultra-thin double display and 3D program.
3, Available pixel pitch 35 / 55 / 70 / 80 / 110 / 140 / 160 mm.
4, Highly programmable, pixel pitch, size, length, shape can be customized.
5, Support rhombus display and customized pixel pitch.
6, Rich installation accessories, flexible installation, adapting to different scenarios.
7, High transparency, light, smoke and voice a go through easily.
8, IP65, totally waterproof for outdoor & indoor use.
9, Irregular shape and snapshot effect available, no worrying about environment restrictions.
10, 3D effect available as led cube, double-side and rhombus display effect reaching.
|
Module |
gDOT-35 |
gDOT-55 |
gDOT-80 |
|
Pixel Pitch |
35mm |
55mm |
80mm |
|
Pixel Density/sqm |
816 |
330 |
156 |
|
Brightness |
2200 nit |
900 nit |
420 nit |
|
Max Power Consumption |
370 W/sqm |
150 W/sqm |
70 W/sqm |
|
Ave Power Consumption |
180 W/sqm |
75 W/sqm |
35 W/sqm |
|
LED Type |
RGB 3in1 SMD3535 |
|
Viewing Angle |
H140° V140° |
|
Refresh Rate |
≥1000 Hz |
|
Gray Scale |
12 bits |
|
Colors |
687 Billion |
|
Control System |
PC based dynamic capture & mapping. |
|
Lifetime |
> 50,000 hours |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Protection Level |
IP66 with led string , IP54 with signal distributor and power box |
|
Working Environment |
Temperature -30~50°C, Humidity 10-90%RH |
|
Certification |
CE,ROHS
|
