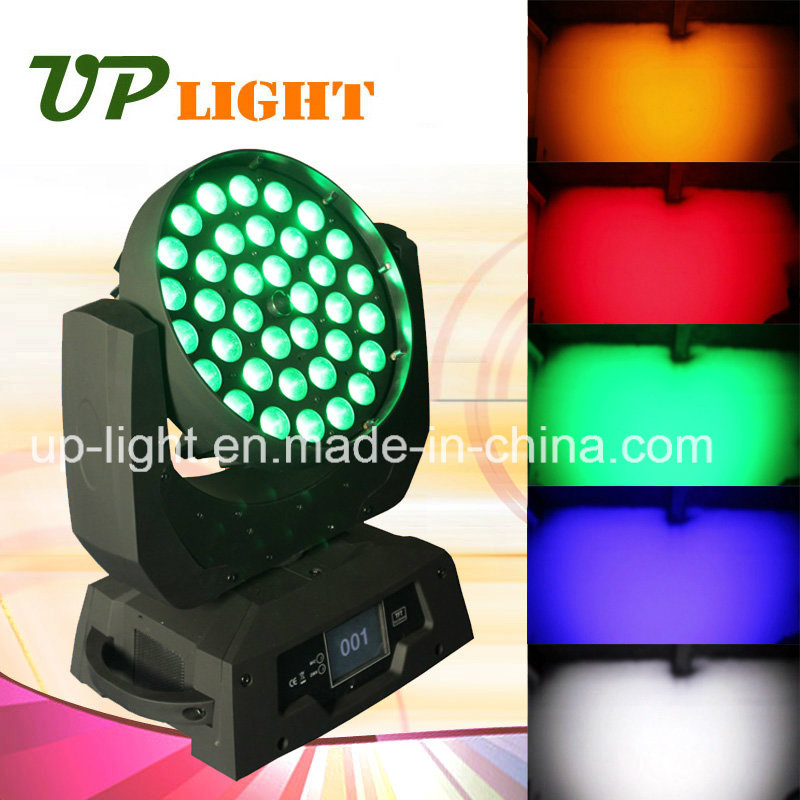

36pcs 15w RGBWA 5in1 Wash LED Stage Light Zoom
Input voltage: AC100~240V, 50~60Hz;
Rated Power: 600W;
LED lamp: 15W high power LED with long life 80000-100000 hours;
LED Qty: 36pcs 15W LEDS with Red, Green, Blue, White, Amber 5 in 1;
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode;
Channel: 13CH, 17CH two channels for three modes;
Color: Red, Green, Blue, White, Amber, Ultraviolet full colors which is the most favorite color mixing way for lighting technician;
Lens: High optical transmission acrylic lens;
Zoom angle: 10° - 60° (standard angle);
Dimmer: 0~100% linear dimmer;
Strobe: Multi-function strobe effects from 1 to 25 times per second with the soft light function;
Material: Aluminum alloy plus plastic;
Maximum working terperature: 45° C
Maximum surface temperature: 60 ° C
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, vocal concert,DJ effect, disco effect, club effect, party effect etc;
Package size: 425× 295× 395mm Gross weight: 9.5kg
13 Channels | 17 Channels | Function |
CH 1 | CH 1 | Dimming |
CH 2 | CH 2 | RED |
CH 3 | CH 3 | GREEN |
CH 4 | CH 4 | BLUE |
CH 5 | CH 5 | WHITE |
CH 6 | CH 6 | AMBER |
CH 7 | CH 7 | User-defined lighting |
CH 8 | CH 8 | Pan scanning |
CH 9 | CH 9 | Tilt scanning |
CH 10 | CH 10 | Pan scanning fine |
CH 11 | CH 11 | Tilt scanning fine |
CH 12 | CH 12 | Scanning speed |
CH 13 | CH 13 | Zooming |
| CH 14 | Strobe |
| CH 15 | RGBW marco function |
| CH 16 | Auto speed adjustment |
| CH 17 | ID code |
