DMX LED Outdoor Light LED PAR light, LED Stage light, LED Waterproof Light, LED BLINDER, DMX LED Outdoor Light, LED Wall Washer, LED Floodlight

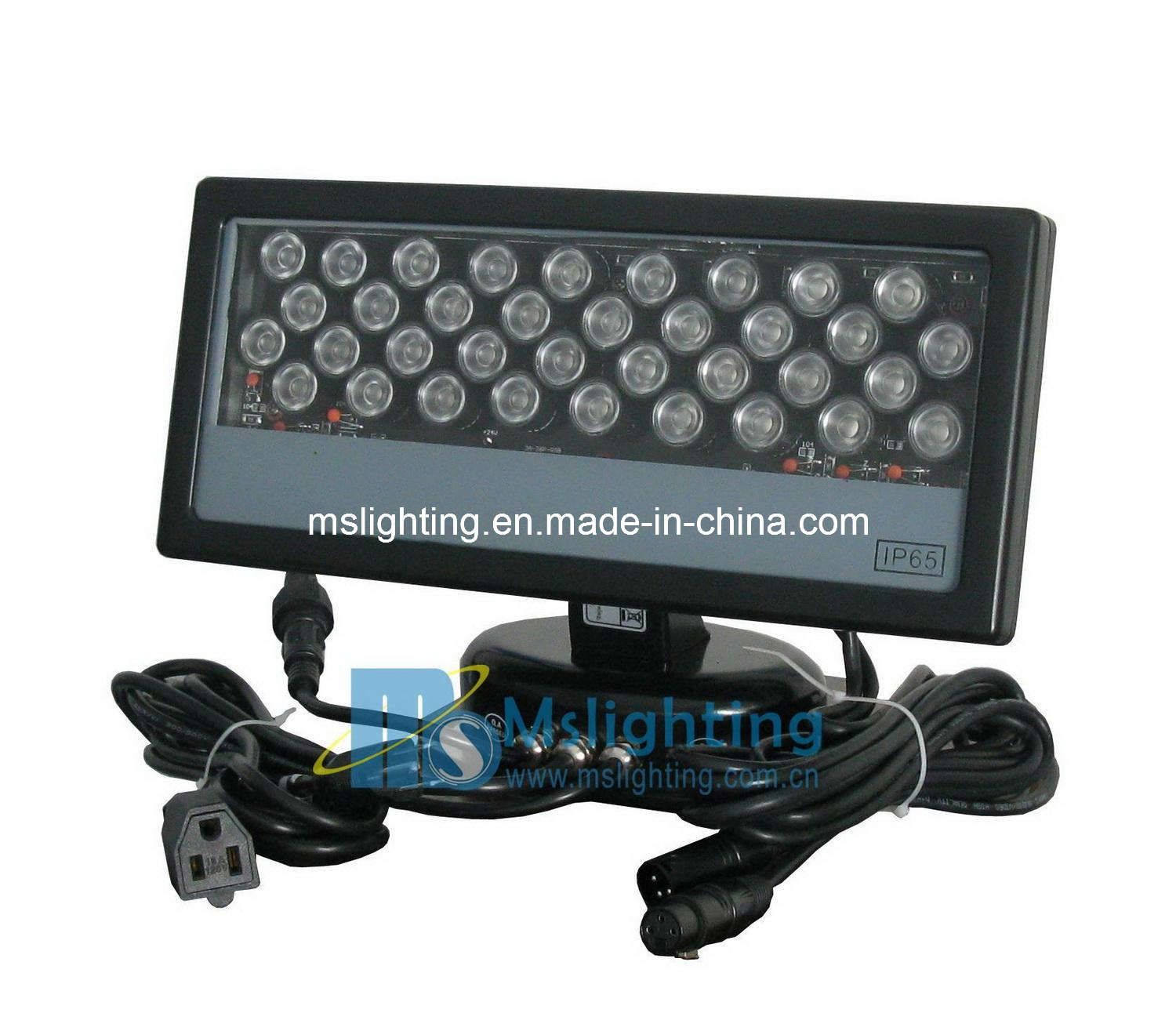

LED high power PAR light adopts in 36 PCS of high power LED lights. 36 PCS of high power LEDs are with focus lens and large-angle. It is a new generation green high technology product. The light color is abundant. It brings people new vision sense, which makes people feel they are in a changeable color world. Full waterproof structure, which is IP65. It is suitable for varied warm humidity interior and exterior environments.
Nice design insures no attenuation of high power LED project for long time. Reasonable design can be adjusted project angle random. It is easy to install that the base is with holes.
It need to be adjusted for under-angle so as to achieve the best optical effects; Widely used for building light and decorative effects can be RGB color replacement, acceptance DMX512 signal control; Machine can be connected simultaneously, it do one of 1 W and 3 W specifications, but also to do all kinds of monochrome, white, red, green, yellow, blue and purple.
This is applied to government light project, commerce location, airport, underground crossroad and so on
|
Specification: |
|
Model |
LED 2001 (36*1W) |
|
Housing Material |
Aluminum |
|
Housing Color |
Black |
|
Aperture Cover |
Tempered Glass 5mm |
|
Operating voltage |
90-130V AC / 176-254V AC |
|
Power |
Switch Power Supply |
|
LED current |
320mA |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone |
|
DMX Channel |
3CH |
|
Control panel |
Digital 3 characters alphanumeric |
|
Connector |
3-PinXLR (In and Out) |
|
NO. of LED |
36*1W LEDS (12R/ 12B/ 12G) |
|
LED Life Time |
80000-100, 000 hours |
|
Beam Angle |
25° /30° /45° /60° |
|
Power Consumption |
55W |
|
Light Projecting Distance |
15-25M |
|
IP Rating |
Outdoor, IP 65 |
|
Operating Temperature |
-20 o c-+45 o c |
|
Dimensions |
L343*W152*H214 mm |
|
Weight |
4.00KGS |
|
Packing Dimension |
L400*W210*H240 mm |
|
Gross Weight |
4.50KGS |
|
Compatibility: |
|
1. 7 colors change gradually, 7 colors change skipply, 7 colors strobe, connect lamps change synchronically. |
|
2. Dimming 0-100%with regulated constant color control |
|
3. Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable |
|
5.3CH DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_ Blue (1-255, Dimmer, from dart to light) |
|
6. Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
Each Package Included: |
|
1 * LED 2001B LED Wall Washer with Signal Cable: 3-PinXLR DMX In and Out + Water Power cable in and out (2ft cable) and 1.5m 3 Pin plug Power cable. |
|
1 * User Manual |
|
2* pyrocondensation. cannula (0.66ft = 20cm) |
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
