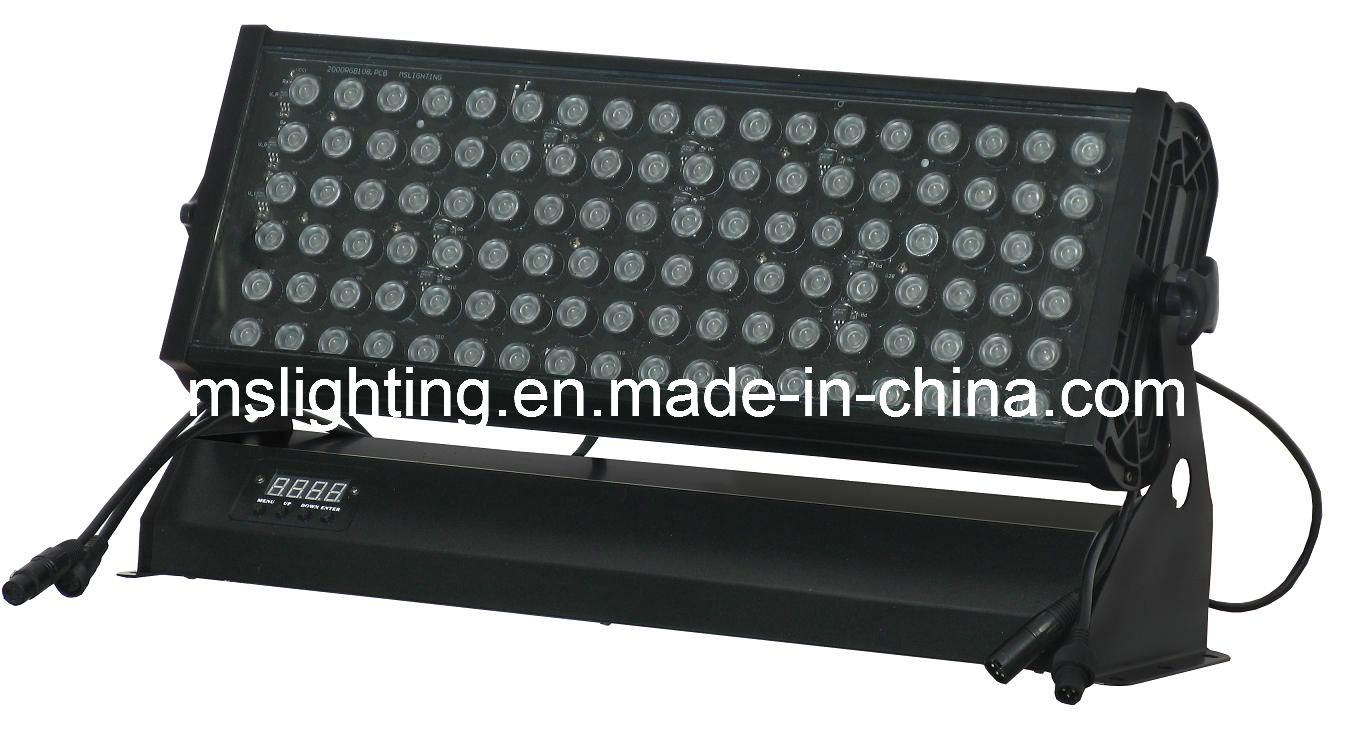

MODEL: LED 011H: 36*15W RGBWA 5IN1 Multi-Color LED Lamp
Control signal: DMX512
Power consumption: 650W
otection rating: IP 65
1) Input voltage: AC 90-130V/280V-240V/50-60Hz, auto change
2) Power: 540W
3) DMX Channels: 8CH/5CH
Compatibility:
1. Color Range 16.7 million additive RGBWA Continuously variable intensity (256× 256× 256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: It is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, sound activity and Save function.
5.8channel Mode and 5channel Mode would change each other in every light
6. DMX Channels-8CH Mode:
CH 1 General Dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 AMBER (1-255, Dimmer, from dart to light)
CH 7 Strobe & Color change &color gradual change's open
CH 8 Strobe & Color change & color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. DMX Channels-5CH Mode:
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)
CH 5 AMBER (1-255, Dimmer, from dart to light)
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
