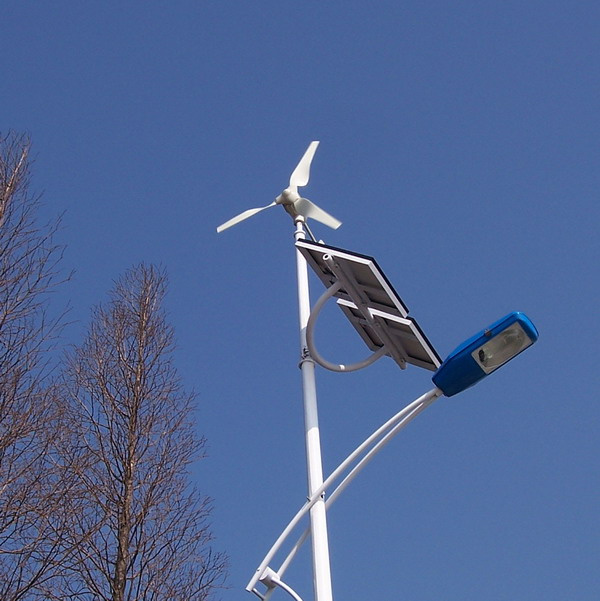

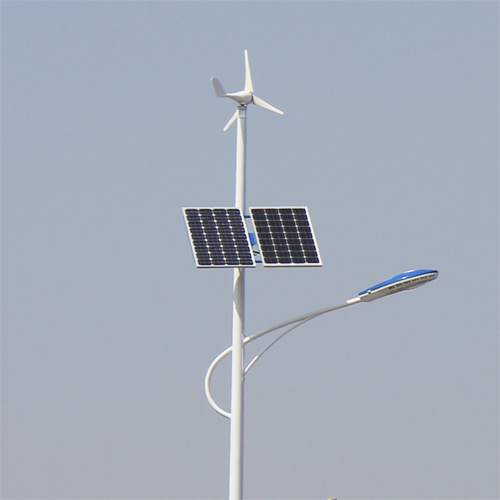

30W Energy-Saving Wind Hybrid Solar Street LED Light (S-C20158130)
Price: |
US $ 300-320/Set |
Trade Terms: |
FOB |
Min Order: |
100/Set |
Pay Type: |
T/T |
Product Details
Basic Info.
Model NO.:JS-C20158130
Light Source:LED Lamp
Lamp Body Material:Aluminum
Light Type:Wind and Solar Hybrid
Color Temperature:3000k-7000k
Power:30W
Technics:Hand-woven
Illumination Time:12h
Cell Type:Gel Battery
Charging Time (H):8
Usage:Garden, Street
IP Rating:IP65
Certification:CCC,ISOVoltage:12/24V
With Light Source:With Light Source
Working Mode:Turn on and off Automaticly
Maintenance:Free-Maintenance
Environment:Eco-Friendly
Additional Info.
Trademark:LTE
Packing:Carton and Pallet
Standard:CE and ROHS
Origin:Yangzhou, Jiangsu province, China
HS Code:94054090
Production Capacity:1000sets/Month
Product Description
Brief Specification for 40W Wind and Solar hybrid LED Street Light with 8m pole, designed based on average solar radiation condition 4.5KWH, Lighting hours: 10 Hrs/Day and 3 rainy days for backup.
Configuration:
40W wind and solar hybrid LED street light | 40W/24V LED lamp |
60W/24V solar panel |
300W/24V wind generator |
10A/24V wind-solar controller |
80AH/24V GEL battery |
120/24 type underground battery box |
8m galvanized pole with arm and brackets. |
Detailed technical parameter:Detailed for 40W wind and solar hybrid LED street light |
Working Time:10 hours/day, 3 rainy or cloudy dasy backup |
Component Name | Technical Parameter for components |
40W/24V LED lamp | LED Power: | 40W |
Power Voltage: | 24VDC |
Total Lums: | 4600lm |
Color Temperature: | 6500K |
Illumination: | 7M≥28Lux |
LED Quantity: | 1W*40PCS |
Luminous efficiency: | 140~150Lm/W |
CRI: | >80 |
IP Protection: | IP65 |
Illumination Area: | 22*8M |
LEDs chip: | BridgeLux from USA |
Light transmittance: | ≥90% |
Size: | 520*220*60MM |
Weight: | 4.5Kgs |
60W/24V Solar panel | Nominal Power(W): | 60W/24V |
Type of cell: | Mono or Poly |
Encapsulation: | Glass/EVA/Cells/EVA/TPT |
Cells efficiency: | 17.88% |
Maximum power(W): | 61.5W |
Voltage at max power(VMP): | 35.38V |
Current at max power(IMP): | 1.70A |
Open circuit voltage(VOC): | 43.21V |
Short circuit current(ISC): | 1.98A |
Dimension(MM): | 657*670*30MM |
Weight(KGS): | 4.6KGS |
300W/24V wind generator | Rated power(W): | 300W |
Initial wind speed(m/s): | 1.5M/S |
Cutting wind speed(m/s): | 2.5M/S |
Rated wind speed(m/s): | 12M/S |
Safe wind speed limited(m/s): | 35M/S |
Working voltage(W): | 24VDC |
Blades quantity: | 3 |
Working wind speed range(m/s): | 3-20M/S |
Rotor diameter(M): | 1.2M |
Wind turbine type: | PMG |
Wind-solar hybrid controller | Max Wind Power Input(V): | 300W |
Max Solar Power Input(W): | 200W |
Input Voltage(V): | 24V |
Floating Charge(V): | 28V |
Over Voltage Shutdown(V): | 32V |
Over Voltage Recovery(V): | 31V |
Under Voltage Shutdown(V): | 21V |
Under Voltage Recovery(V): | 24V |
Standby Current(MA): | 40MA |
Output Power(W): | 300W |
Output Vac(V): | 100/110/220/230/240 |
Output Voltage Regulation: | ± 5% typical |
Output Frequency: | 50/60 Hz |
Output Waveform: | True Sine Wave |
Efficiency: | >90% |
80AH/24V GEL battery(80AH/12V *2) | Nominal Voltage(V): | 12V |
Capacity(10HR,25ºC): | 80AH |
Dimension | Length(MM) | 329MM |
Width(MM) | 172MM |
Height(MM) | 215MM |
Total Height(MM) | 221MM |
Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 92AH |
10 hr rate: | 90AH |
5 hr rate: | 72AH |
1 hr rate: | 46AH |
Weight(KGS): | 24.5KGS |
120 Type battery box | Material: | PP(120/24) |
7M glavanized pole(with 1.2m arm and brackets) | Standard height: | 7M |
Material: | Q235 |
Top diameter(MM): | 76MM |
Bottom diameter(MM): | 155MM |
Thickness(MM): | 3MM |
Baseplate(MM): | 280*280*14MM |
Anchor bolts(MM): | 4*M18*600MM |
Hot dip galvanized thickness not less than 80um |
Prod Model: |
JS-C20158130 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty:5years: |
Height:8m |
Power Supply: |
DC |
Color Temperature: |
Cool White |
Lamp Body Material: |
Aluminum Alloy |
Power: |
30w |
Application: |
Highway |
IP Rating: |
IP65 |
Certification: |
CCC |
With Light Source: |
With Light Source |
LED Chips Brand: |
CREE |
Input Voltage: |
12-24V |
