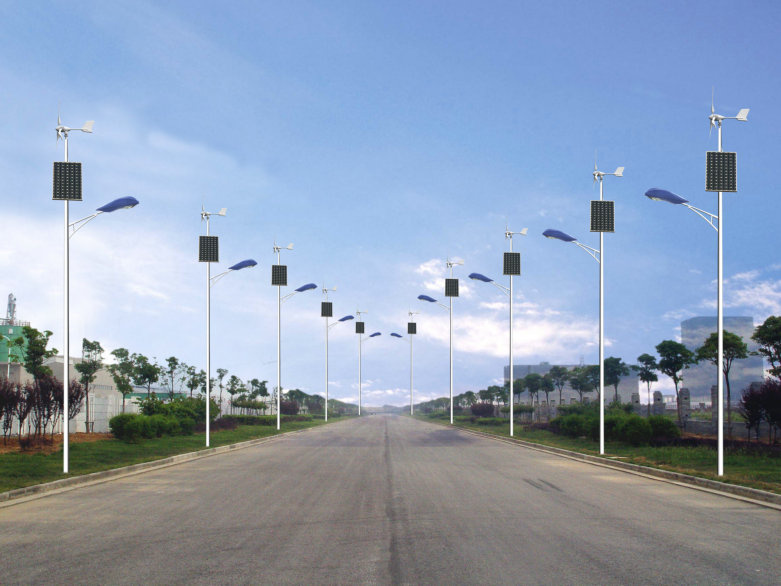

100W LED Wind Solar Energy Street Light
1. Wind driven generator: 400w, mini 5 plus
2. Solar panel: 2*150w
3. Controller: 12/24V
4. LED lamp: 100w
5. Pole: 10m
6. Battery: Lead-acid battery, 2*150AH
7. Battery buried box: 400AH
Continuous working days: 10 hours ,3 days
Warranty: Lamp: 1 year; wind driven generator: 3 years,others: 1 year
Spacing: 35m, for 4 lanes road
Advantages:
1. All-weather working: Wind and solar hybrid system can work all day without any influence on cloudy day and rainy day and so on.
2. Mute design: Optimum design according to aerodynamics, noise level is lower than 45dB.
3. Breeze starting: Wind rotor adopts 5 pieces design, increase the start-up speed, reduce the start-up time.
4. High efficiency: Wind rotor adopts diffuse design
5. High safety: The wind turbine adopts high-strength magnets and protection mechanism
6. High stablility: We adopt rotator and accelerated damping mechanism in order to make the wind turbine against the wind neatly and avoid frequent trembling.
7. Easy installation: Low weight, small volume
8. System uses wind power and solar power, zero pollution, zero discharge.
We can supply Wind Solar Street Lights from 30W to 400W.
Item |
NO. |
Note |
Quantity |
wind driven generator |
MINI 5 PLUS |
power: 400w; voltage: 24v; weight: 7.1kg; Blade Diameter: 116cm,1.5m/s start up wind speed,2.0m/s Cut-in wind speed,Maximum wind speed 50m/s,Aluminium alloy. Life span: more than 15 years |
1 |
Solar panel |
SP150W |
single crystal silicon, Conversion Rate above 17%, Max voltage:18V,Max Current:8.3A,150W/pcs,CE\TUV certificate. Life span: more than 20 years. |
2 |
full half-power solar controller |
SN-WSLD-12/24V |
Lighting time: 14 hours
full-half power,12V/24V; Max chrging current: 10A; IP68 |
1 |
LED lamp |
LED100W |
Power: 100W LED,24V,10000lm;
Color temperature:4500-6500K;
Life span: >50,000 hours;
Working temperature:-40°C~+70°C |
1 |
pole |
P10M-4.0T |
Pole Height:10m; light height:8m |
1 |
accessories |
PA10M |
Cable: 3*4 square,2*2.5 square,2*4 square |
1 |
battery |
BA150AH |
Lead-acid battery,12V,150AH/pcs;
Working temperature:0ºC-60ºC;
Life span: 3-4 years |
2 |
Battery buried box |
BB-400A |
400AH Buried battery box, waterproof, anti-corrosion |
1 |
