| Price: | US $ 22.42-22.92/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
Description:
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | ||

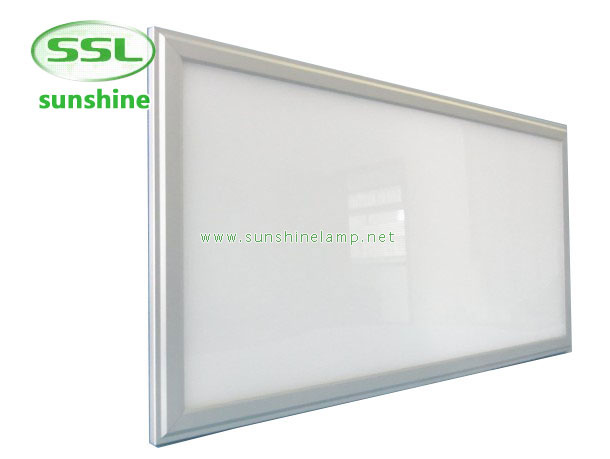

Model | SSL-PAN-3060-24W | |
LED Qty | 220pcs | |
LED Type | Epistar 3014 smd LED | |
LED Power | 24W | |
LED Color | Warm white, Pure white, Cool white | |
Input Voltage | AC85~265V | |
Frequency Range | 50Hz - 60Hz | |
Power Factor | >92 | |
Power Efficiency | >85% | |
Luminous Efficiency | >70LM/W | |
Dimension | 595mm x 295mm x 12mm | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>73 |
PW / CW | Ra>78 | |
Lumens Output | WW | 1450lm |
PW | 1550lm | |
CW | 1650lm | |
Beam Angle | 120° | |
Installation | Embedded / Mounting / Suspending | |
Housing Color | Silver | |
Working Temperature | -20ºC ~ +40ºC | |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) | |
Life span | 35000~50000hrs | |
Certification | CE, RoHS, FCC | |
Net Weight | 3.0kgs | |
package | 74*28*40cm (4pcs/box) | |

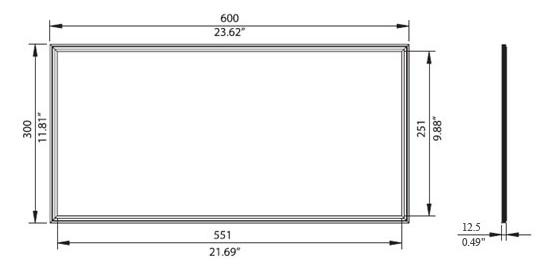

LED Panel light dimension (mm)

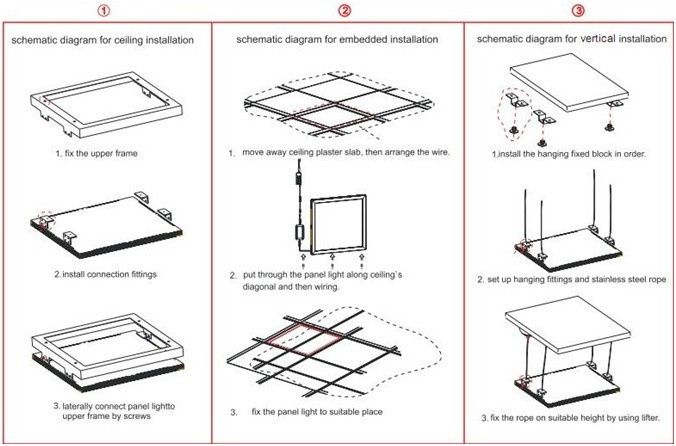

Installation Instruction:
Applications:

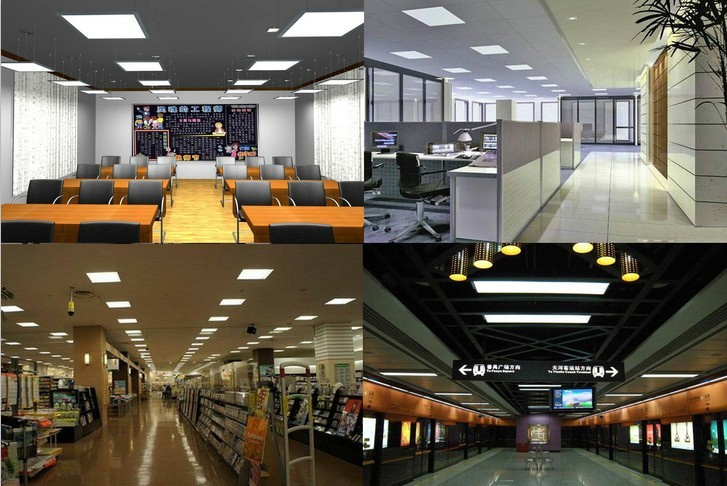

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.
| Prod Model: | SSL-PAN-3060-24W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: | 50Hz-60Hz |
| Dimension: | 300mm X600mm X 11mm |
| Installation: | Embeded,Mounting, Suspended |
| Net Weigt: | 3.0kg |
| Package: | 74*28*40cm (4PCS/Box) |
| Light Source: | LED |
| Housing Material: | Acrylic |
| Emitting Color: | White |
| Dimmable: | With Dimmable |
| Appearance: | Square |
| Type: | Embedded |
| Base Material: | Metal |
| Certification: | RoHS |
| Voltage: | 85V-265V |
| Beam Angle: | 180° |
