Features and Specifications
Application

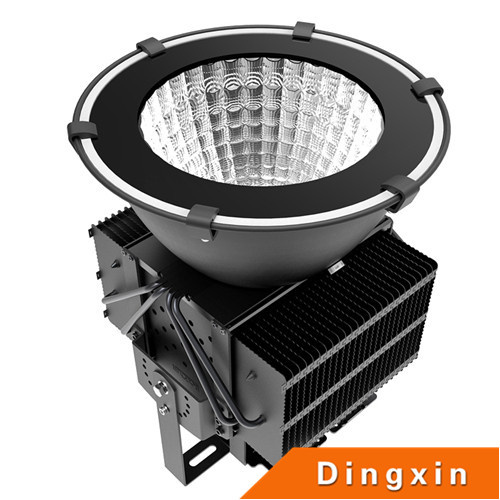

High Bay light was designed specially to replace conventional light in a wide variety of industrial and warehouse applications.

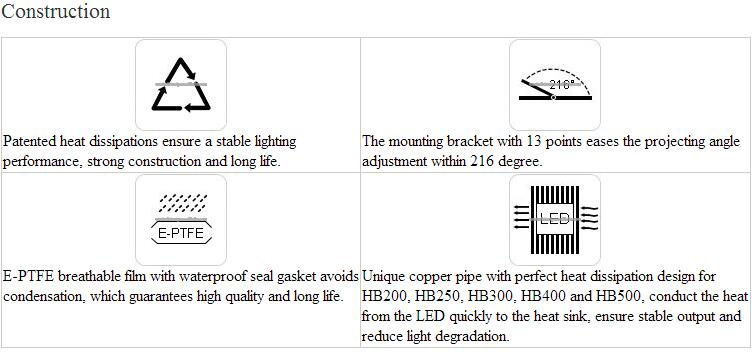

Construction
Electronics
Meanwell driver is available in 100-240Vac, 50/60Hz, power factor > 90% and THD <15%, IP65.
Listings
UL,CE approved, RoHS compliant
Warranty
5 years limited
Note: All specifications are subject to change without prior notice.

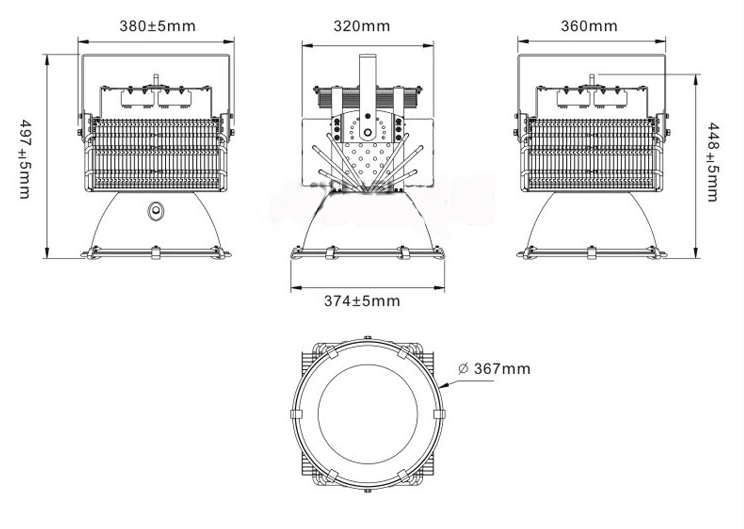

Dimension & Weight
| DXHB100 | DXHB120 | DXHB150 | DXHB200 | DXHB250 | DXHB300 | DXHB400 | DXHB500 |
L | 246mm | 266mm | 323mm | 266mm | 323mm | 323mm | 380mm | 380mm |
W | 260mm | 260mm | 260mm | 260mm | 260mm | 260mm | 320mm | 320mm |
H | 459mm | 467mm | 459mm | 467mm | 459mm | 459mm | 497mm | 497mm |
Φ | 367mm | 367mm | 367mm | 367mm | 367mm | 367mm | 367mm | 367mm |
Weight | 7.3kg | 8.07kg | 9.0kg | 8.07kg | 9.01kg | 9.01kg | 10.2kg | 12.8kg |
Electrical Data:
Model | Number of LEDs | LED drive current(mA) | Rated Power(W) |
DXHB100 | 200pcs | 140 | 100 |
DXHB120 | 260pcs | 130 | 120 |
DXHB150 | 90pcs | 500 | 150 |
DXHB200 | 130pcs | 460 | 200 |
DXHB250 | 192pcs | 370 | 250 |
DXHB300 | 192pcs | 460 | 300 |
DXHB400 | 280pcs | 425 | 400 |
DXHB500 | 280pcs | 550 | 470 |
About us:
Yangzhou Dingxin Photoelectric Technology Co., Ltd., Established in 2000, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved
manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Spain, Greece, Norway, Belgium, France, Italy, Portugal,
Australia, Turkey, Jordan, Iraq, UAE, India, Singapore, Philippines, Pakistan, Cambodia, Nigeria, Congo, Mexico, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Attention:
We are good at
1: Designing, producing, installing solar 10W-120W LED street lights
2: Designing, producing 10W-120W Solar Street Lights for outdoor lighting.
3: Producing solar panel to 300W
4: Solar Battery 24Ah-250Ah
OEM Service for solar lighting and PV panel is available.
Yangzhou Dingxin Photoelectric Technology Co., Ltd., Established in 2000, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System,
POLE,
LED light
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 315W
4. Solar Battery 7Ah-300Ah/12V
5. Solar garden light.
OEM Service for solar lighting and PV panel is available.
Welcome to contact us for details!
