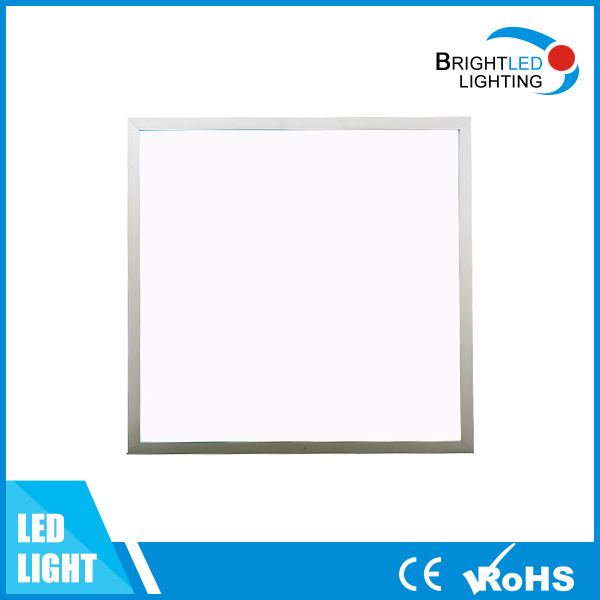

LED panel light (BL-P0303)/LED panel/LED office light/LED indoor light:LED panel light Type: BL-P0303
LED panel light Power: 18W
QTY of LED: 180 PCS
LED type: 0.1W 3528 SMD LED
Voltage: 24V DC
Color: Cool white/Natural white/Warm white
Luminous Flux: Cool white >1000 LM
Natural white >935 LM
Warm white >800 LM
Illuminance (1M): Cool white >275 Lux
Natural white >266 Lux
Warm white >200 Lux
Rendering index: 83
No UV or IR light radiation
Working environment humidity: 10%~85%
Luminance decrease: Keep lighting 5, 000hrs decrease 2.4%
Life time: >50, 000 hrs
IP grade: IP41
Protection grade: IK04
Technical ParameterPart No. | P0303-18W |
Watts(W) | 13W |
Qty of leds | 60P |
Inpurt Voltage | 175-265V AC |
Working Current(mA) | 700 |
Power Factor | PF>0.9 |
Rendering Index | Ra>80 |
Color Temp(K) | 3000K/4000K/6000K |
Lumious Flux(Lm) | 900/960/1000 |
Life time(hrs) | 50,000 |
Protection Rate | IP40 |
Dimension | 295*295*10 |

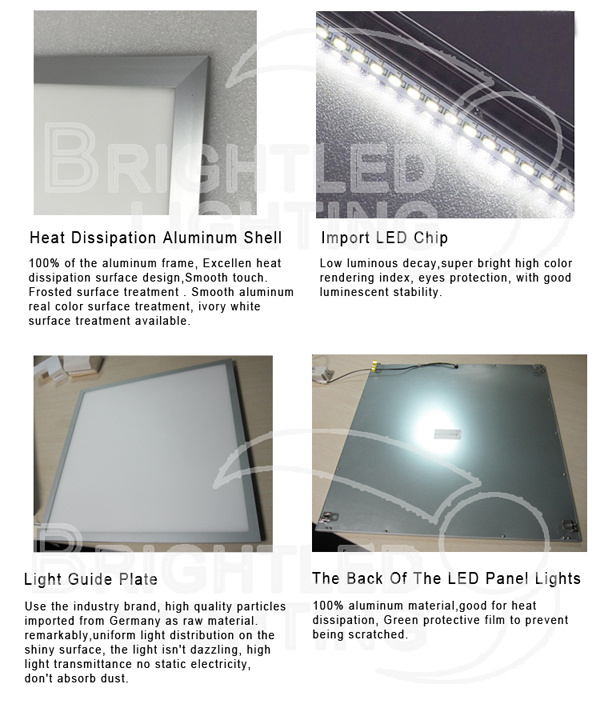

Feature
1.It adopts super bright LED as its luminous body. The anodized aluminum frame is stylish and fashionable with everlasting color.
2.It is powered by low voltage constant current driver, which is safety, energy-saving and long life.
3.Excellent thermal management can effectively guarantee the LED's long-term stability.
4.The front panel board is high translucent PP, which ensures the light even, soft and high transmittance.
5.Instant start, no flickering, no humming. No hazardous material ( mercury, lead).
6.The installation is very easy, it can insert into the ceiling directly, and it also can be hanging down by using the lifting hole on the back.
Installation Instruction
1. Turn off the power.
2. connect the commercial power with the input of the matched power supply, make sure that no copperware exposed.
3. Connect matched power supply and panel light together through the plug.
4. Fix the panel light and power supply at suitable place.
5. Turn on the power.
Applications
Hotel, Meeting Room, Office, Hospital, School, and places where energy saving and high color rendering index lighting needed.Notes:The panel should be driven by appointed power supply.
Packing information:
Qty:10pcs/ctn
Carton Weight: 14.5KGS/ctn
Carton size:40*38*25cm
No. | Part No. | Qty/Ctn | Ctn Size(cm) | Ctn Weight(kg) | Unit loading in 20ft |
1 | BL-P0303-13W | 5PCS/Ctn | 40*38*24cm | 14KGS/ctn | 3950pcs/790ctns |
2 | BL-P0306-20W | 10PCS/Ctn | 70*38*48cm | 24KGS/ctn | 1960pcs/196ctns |
3 | BL-P0312-40W | 5PCS/Ctn | 133*40*29cm | 25kgs/ctn | 850pcs/170ctns |
4 | BL-P0606-30W | 5PCS/Ctn | 70*67*25cm | 24kgs/ctn | 1125pcs/225ctns |
5 | BL-P0606-40W | 5PCS/Ctn | 70*67*25cm | 24kgs/ctn | 1125pcs/225ctns |
6 | BL-P0606-50W | 5PCS/Ctn | 70*67*25cm | 24kgs/ctn | 1125pcs/225ctns |
7 | BL-P0612-60W | 2PCS/Ctn | 133*69*14 | 25kgs/ctn | 420pcs/210ctns |
Why Choose Brightled Lighting
1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our advangages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients:
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice:
1) Your inquiry will be replied in 24 hours
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) Protect your sales area, ideas of design and all your private information
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.

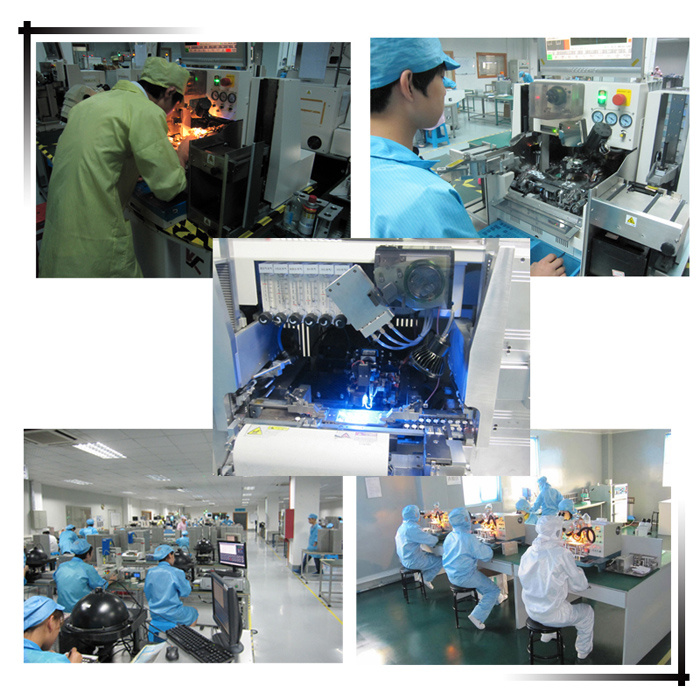

Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.
Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.
"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.
Bright LED Change life Bright.
