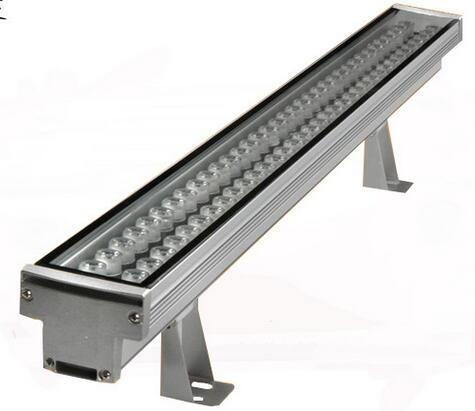

2016 New 72W LED Wall Light

72Watt Outdoor LED wall washer lights / Lighting
 Easy to install, IP65 48W High brightness LED Wall Washer light Ce & RoHs approval
Description:
· Die-casting aluminum housing
· AC85~265V input options
· Optical grade diffused lens
· Graduated angle scale
· Bridgelux LED and Meanwell driver
· Low emitted heat
· 120º beam projection
· Up to 70% energy savings
· 72w power consumption
· IP65 Ingress protection
· With a build-in stand alone function and master / slave mode available;
· RGB color mixing with or without DMX control;
· 64 sub-ID codes addressing panel available in one DMX address.
· Current protection to PCB panel and over-heat protection;
· CE, RoHS, TUV, UL compliant
· 3 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)

Tech Date
Model		SSL-WL-72W-04
LED Qty		72pcs
LED Type		Bridgelux
LED Power		72W
LED Color		Warm white, Pure white, Cool white
Input Voltage		AC85~265V
Frequency Range		50Hz - 60Hz
Power Factor		>98
Power Efficiency		>85%
Luminous Efficiency		70~110LM/W
Color Temperature	WW	2700-3500K
	PW	4000-5500K
	CW	6000-7000K
CRI	WW	Ra>70
	PW	Ra>75
	CW	Ra>75
Lamp Efficiency		>85%
Lumens Output	WW	6300lm
	PW	6350lm
	CW	6400lm
Beam Angle		120°
Working Temperature		-40ºC ~ +55ºC
Storage Temperature		-25ºC ~ +65ºC(25ºCbest)
Life span		>30000hrs
Certification		CE, RoHS, FCC
IP Grade		IP65
Housing Color		Black
Net Weight		3.5kgs
Dimension		1000 x 90x 80mm
package		105*36*40cm (10pcs/box) G.W.:17kgs

Applications:
Widely used in .indoor and outdoor lighting and decoration for building outline,bar,dininghall, KTV, outdoor lighting advertising, Holiday decoration lighting, swimming pool.
