Product Description

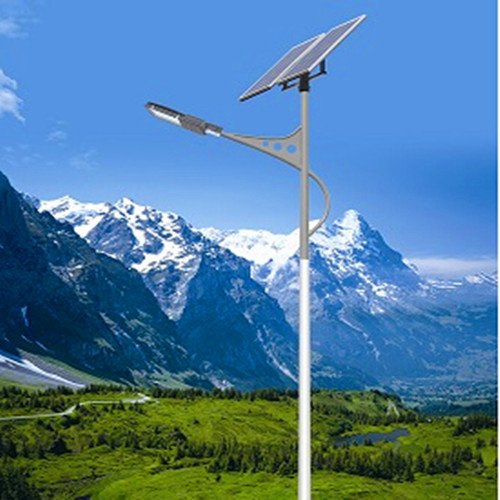

2014 New Style Solar LED Street Light
Item No.:JS-A2015010990
Power:90W
LED Module Quantity:3*30W
Whole light efficiency:100lm/W
Lumen:9000lm
Color temperature:2500-6500K
Color rendering index:CRI≥75
Power effieiency:92%
Power factor:0.98
Humidity:10%~95%
IP Rating:IP67
Net wight of lamp:11kg
Lamp size:L686*W340*H115mm
Lamp packing:L760*W390*H185mm
Gurantee time:1-5 years.
Applications:Applicable to urban roads,bridges,squares,schools,parks,gardens,
residential areas,playgrounds,airports,docks and other places where need lighting.
Solar LED Street Light Feature:
A. LED light body:
Patents design, utility model patents, anti-typhoon,anti-wind,anti-corrosion,waterproof grade IP67;
Module design,Easy to install take apart in 2 minutes,maintain cost saving 80%;
Patent heat dissipation technical,Whick is better than other Led Light.
Installation angle adjustable which is available for different road.
B. LED lamp:
Batwing light distribution,high transmittance of optical glass,no dark area on the road;
Unique phosphor formulation,advanced technology,high birghtness imported chip,the entire lighting efficiency>100lm/W;
Independent protection technology:single lamp beads lamp beads necrosis without affection other work,which will make the lights have longer lifetime than normal products;
Brightness lose<3% per year;
No adverse glare,no flicker,elimination the glare caused by adverse ordinary lights glare and visual fatigue sight interference,improve driving safety.
C. Controller:
The use of digital intelligent control systems,non-electrolytic capacitor design,the service life up to 10 years.
Night intelligent dimming system,late at night can be a half-power operation.
D. Battery:
Using nano waterproof technology,battery waterproof and breathable,making longer battery life;
Thermostatic technology in cold and hot regions significantly extend battery life.
E. Energy efficient:
Adoption night gradient smart dimming system,full power lighting night before midnight,after midnight half-power operation,energy efficient;
Does not contain lead,mercury and other pollution elements, right the environment did not any pollution.
F. Light Pole:
5-10 meters pole or 1-2m bracket ,made of quality steel, plastic coated after hot dipped galvanized, rust proof.Wind resistance ≥120KM/H;
Model | LC-T001-3-90 | LC-T001-3-120 | LC-T001-3-150 |
| Power | 90W | 120W | 100W |
| LED Module quantity | 3*30W | 3*40W | 3*50W |
| Whole light efficiency | 100lm/W |
| Lumen | 9000lm | 12000lm | 15000lm |
| Color temperature | 2500K-6500K |
| Power efficiency | 92% |
| Power factor | 0.98 |
| Total harmonic distortion | <15% |
| Working temperature | -40~50 degree |
| Humidity | 10%-95% |
| IP rating | IP67 |
| Net weight of lamp | 11kg |
| Chip | Bridgelux |
| Material | Aluminum alloy |
| Color | Black or silver |
| Guarantee time | 1-5 years |
| Lamp size | L686*W340*H115mm |
| Lamp packing | L760*W390*H185mm |
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.
Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances
We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.
Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.
In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
