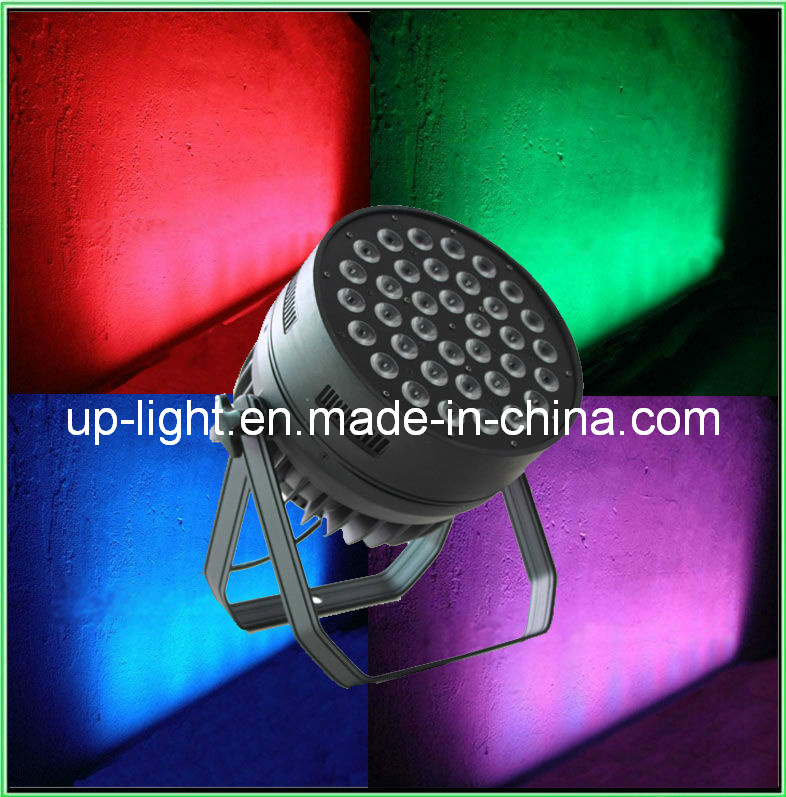

2014 new 36*10W RGBW 4in1 LED PAR
Light Effect RED
Light Effect GREEN
Light Effect Blue
Input voltage: AC100V-240V, 50/60HZ;
Rated power: 380W;
LED: 36pcs * 10W high power and supper brightness RGBW 4 in 1 LEDs;
LED lifetime: 80000~100000 hours;
LED luminance: More than 5,000 lux;
Color: RGBW color mixing system with color rainbow and HSL color mixing adjustment which is the most favorite color mixing way for lighting technician;
Gray level: 256×256×256
Lens: 36pcs high efficiency and transmission large lens;
Lens angle: 40°;
Emitting angle: 22°;
IP grade: IP20;
Strobe: Multi-function strobe with soft light effect;
Dimmer: 0%~100% linear dimming;
Display: LED display;
Control: DMX512 signal 3-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode;
Channel: 4CH or 8CH;
Other function: DMX address can be adjusted; DMX address extension function; IP address extension function;
Material: Aluminum alloy composites plastic;
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc;
Packing size: 300×300×380mm;
New weight: 7.6kg;
|
Channel 4 |
Channel 8 |
Function |
|
|
Ch 1 |
Dimming |
|
Ch 1 |
Ch 2 |
RED |
|
Ch 2 |
Ch 3 |
GREEN |
|
Ch 3 |
Ch 4 |
BLUE |
|
Ch 4 |
CH 5 |
WHITE |
|
|
Ch 6 |
Strobe |
|
|
Ch 7 |
Speed |
|
|
Ch 8 |
Soft light mixing |
