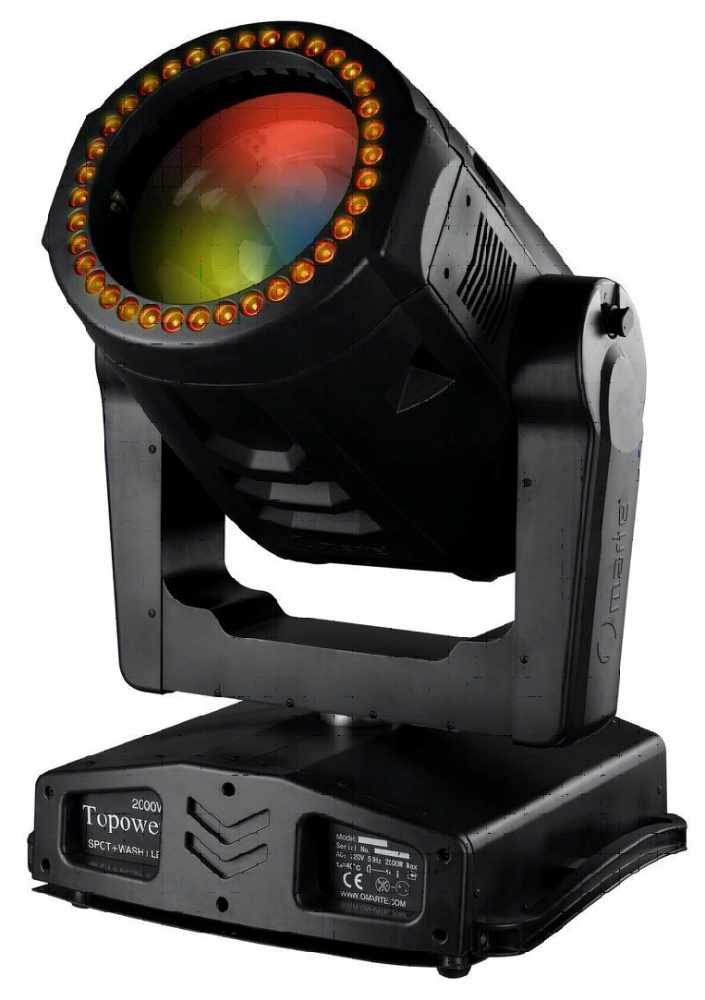

Technical Parameter
Voltage: AC220V± 10 50-60Hz
Power: 2450W
38 channels controlling 8 Bit/16 Bit
DMX 512 signal receiving
MSR GOLD 2000 FastFit lamp, parabolic glass reflector
Outputs 100, 000 lumens, LED5500lumens.
LED intelligent interface for better operation.
CMY color mixing
One indexing and rotable gobo wheels, each has four changeable glass gobos or metal gobos, each gobo with shaking effect.
0-100% linear mechanical dimmer with strobe as 0.5-10 flash/s, inside with pulse-strobe function, and variable pulses in which the shutter snaps open and slowly closely or snaps closed and slowly open.
Electric iris, 10-100% linear adjustment, inside with iris macro function, the min output angle is 4.5 degree.
Linear focusing: 10-24 degree, focusing: 2m to infinity
450° Pan with 8 or 16 bit resolution
216° Tilt with 8 or 16 bit resolution
Automatic Pan and Tilt repositoning by photoelectric repositoning system accidentally knocked out of place.
Superheat protection: Fan system automatically adjusts wind speed by circle temperature.
When light is closed sluice, CMY or all state bulb automatic reduce 40%, electricity extended life, improve stability of bulb lamps and lanterns
Electronic ballast. Power fator is 0.98, supports saving mode.
With a special function: Lamp control electronic adjustment, wide range of working voltage.
Light bulbs with timing and lamps and lanterns USES bubble timer function, can prompt understanding the use situation of the bulb.
Intelligent menu design: Runs shortout selection. Pan three positons can mantion. Optional: High, Middle, Low. All functions can manually directly been adjusted by the menu panel, and save as initialization state also with an automatic alam inside, which are convenient, easy testing and maintain.
Dimension: 512mm× 566mm× 942mm
N. W.: 60Kg
Up to CE and GB7000 15-2000 standard
Guangzhou Omarte Lighting Co., Ltd. is one of the fastest developing enterprise, which is prefessional in stage moving light 1500W&1200W, LED stage lighting and 7KW giant color outdoor searchlight and controller. We experience in theste category of products for more than 6 year. After year by year efforts, we stand more and more stable in the morket and have been recognized as the father of high power lighting manufacturer. We also have strict quality control and strong technical developing system, ISO9001: 2000 reputation, as well as good sales services. At the time, we are making effort to develop new products to meet the home market and the international market. We continuously strive to improve the quality of products and perfect our sales services.
At present, Omart lighting is in the leading positon of the industry with advanced technology, superior quality and stable performance. Excellent performance has been shown by our products in large popular art shows, stadiums and TV halls etc. Thus, well reputation by exports has been flooding to Omarte lighting.
