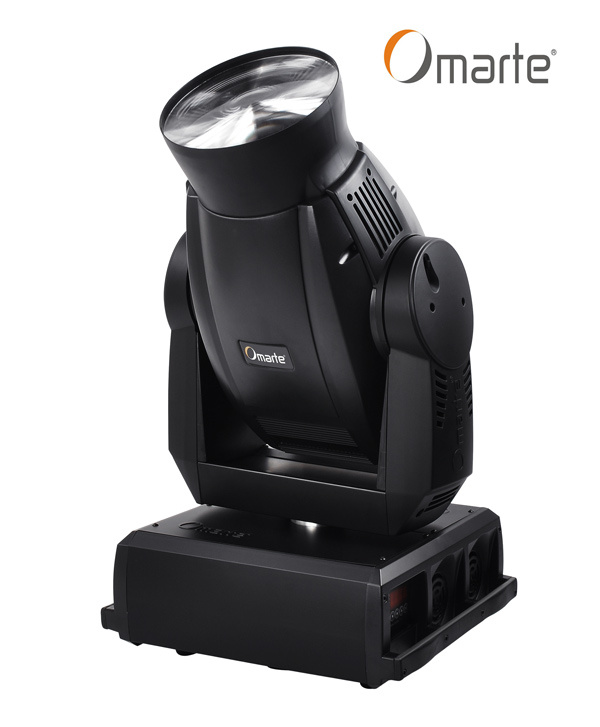

Beam/ beam moving head/1200W beam moving head light(OA-3000 beam)
Technical Parameter
Voltage: AC 200-240V 50/60Hz
Power: 1450W
DMX512 signal receiving
22 Channels controlling 8 Bit/16 Bit
OSR HTI 1200W/S lamp, Cold light glass reflector
LCD intellective display panel
CMY, CTC with DOT and pectination structure, and smooth color mixing system, CMY macro function inside, with gradual color temperature correction function.
1 color wheel, 5 colors+white, , can be semi-color. Colors flow bidirectionally. Color filters changeable.
1 gobo wheel with 5 gobos who has indexing and rotatable effect
0-100% linear mechanical dimmer with strobe as 0.5-14 flash/s, inside with strobe macro function
Electric zoom, bean angle: 4.5°
Gradient soft light, 9° -30° Adjustable
540° Pan with 8 or 16 bit resolution
270° Tilt with 8 or 16 bit resolution
Automatic Pan and Tilt repositioning by photoelectric repositioning system accidentally knocked out of place.
Superheat protection: Fan system automatically adjusts wind speed by circle temperature.
Power saving function: When the switch or all the CMY filters shuttered, the lamp consumption can be reduced 50% automatically extending the lamp life and improving stability.
The power factor of electronic ballast and switch is >0.98, supports saving mode. Lamp control 2 position electronic adjustment: 600W, 1200W, wide range of working voltage.
Lamp and light have timer function, can understand the usage of the lamp timely.
Intelligent menu design: Runs shortcut selection. Pan/tilt 3 positions optional: High, Middle, Low. All functions can manually directly been adjusted through with an automatic error alert inside, which are convenient and easy testing and maintain.
International Protection: IP20
Weight: 36kg
Dimension: 450 X405X 800(mm)
Up to CE standard and GB7000.217-2008 Standard
|
DMX Channels |
|
|
CH01 |
Dimmer |
|
CH02 |
Shutter, Strobe |
|
CH03 |
Cyan |
|
CH04 |
Magenta |
|
CH05 |
Yellow |
|
CH06 |
CTC |
|
CH07 |
Color macro |
|
CH08 |
Color wheel |
|
CH09 |
Rotating gobo1 selection |
|
CH10 |
Rotating gobo1 index coarse(MSB) and rotation |
|
CH11 |
Rotating gobo 1 index fine(LSB) |
|
CH12 |
Focus |
|
CH13 |
Zoom |
|
CH14 |
Pan coarse |
|
CH15 |
Pan fine |
|
CH16 |
Tilt coarse |
|
CH17 |
Tilt fine |
|
CH18 |
Pan/Tilt speed |
|
CH19 |
Motor speed 1 |
|
CH20 |
Motor speed2 |
|
CH21 |
Control |
|
CH22 |
Electric lighting |
