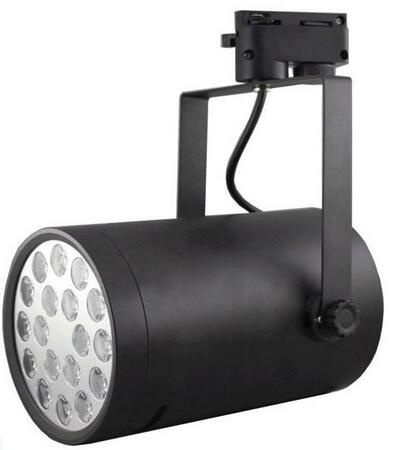

18W led track lights for shops1)Advanced constant current driver.
2)Professional thermal management.
3)Instant on, no warm up time required.
4) No noise, no flickering.
5)No UV or IR radiation in the beam, mercury free.
6)Anti-shock, anti-moisture.
7)Long lifespan, higher than 50,000H.
Specification:18W led track light | SSL-TL-18W-029 |
product family code | AMEBA Series |
LED Brand | epistar high grade(Edison,SSC other for option) |
total power | 18W |
Beam angle of light source | 40 D (25°,60° for option) |
color temperature | 4000 K(3000 K, 6000K option) |
light fixture color | silver gray(white,black,other for option) |
IP code | IP20 |
adjustment | vertical 90°, horizonal 350° |
Safety class | CLII [Safety class II] |
Life Span | 50,000 hours at 25ºC,(70% lumens at 30000hr) |
warranty | 2 years |
Mounting |
|
if 3 circuit track | On 3-circuit track (3C or 3 phase) |
if 2 circuit track such as halo | On 2-circuit track (2C or 3 lines) |
for ceiling 1 | ceiling surface recessed |
for ceiling 2 | ceiling surface mounted |
Electrical Characteristics |
|
power of led module | 18X1W |
Voltage | 100-240 V |
Line Frequency | 50-60 Hz |
Lamp Current mA | 350 mA |
Operating temperature range | -20 to +50ºC |
Transformer/ power supply unit | driver external with safe box |
Light Technical Characteristics |
|
Color Code | NW(WW,CW option) |
Beam Angle | 40 D (25°,60° for option) |
Correlated Color Temperature | 4000 K(3000 K, 6000K option) |
Luminous Flux(more lumens with other LED grade) | 1400lm(4000K), 1350lm(3000K) |
Color rendering index | 83(3000K)
|

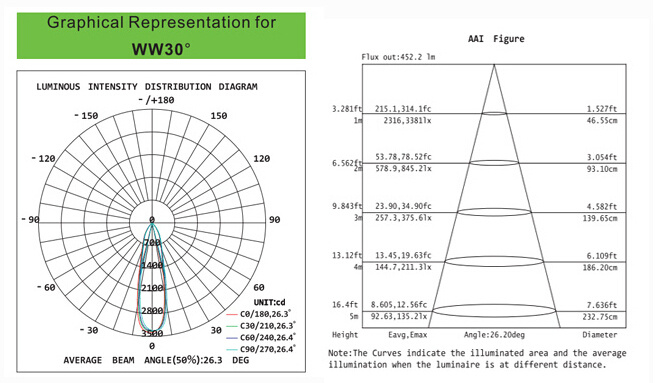

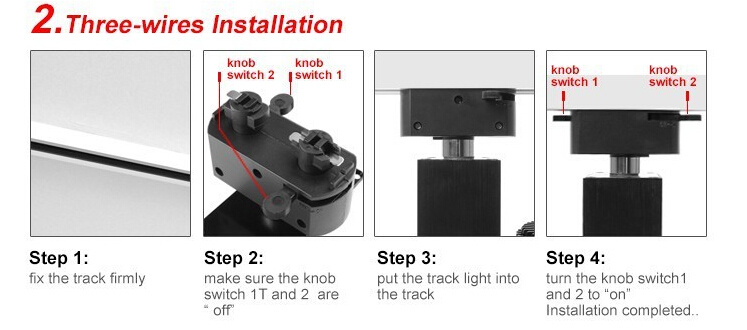

Curve of light distribution (Ta=25ºC±3ºC)Installation Instruction:
Applications:

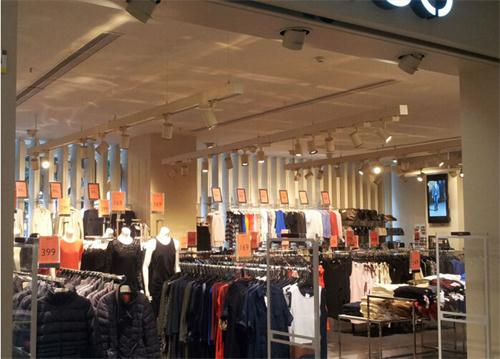

Mainly applied in commercial places, such as shopping mall (clothing store,furniture store and other brand shops), car showroom, jewelry, stars hotel, brand clothing, upscale club, culture relics exhibition hall, chain store, brand business hall, professional cabinet, counter and other accent lighting places.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
