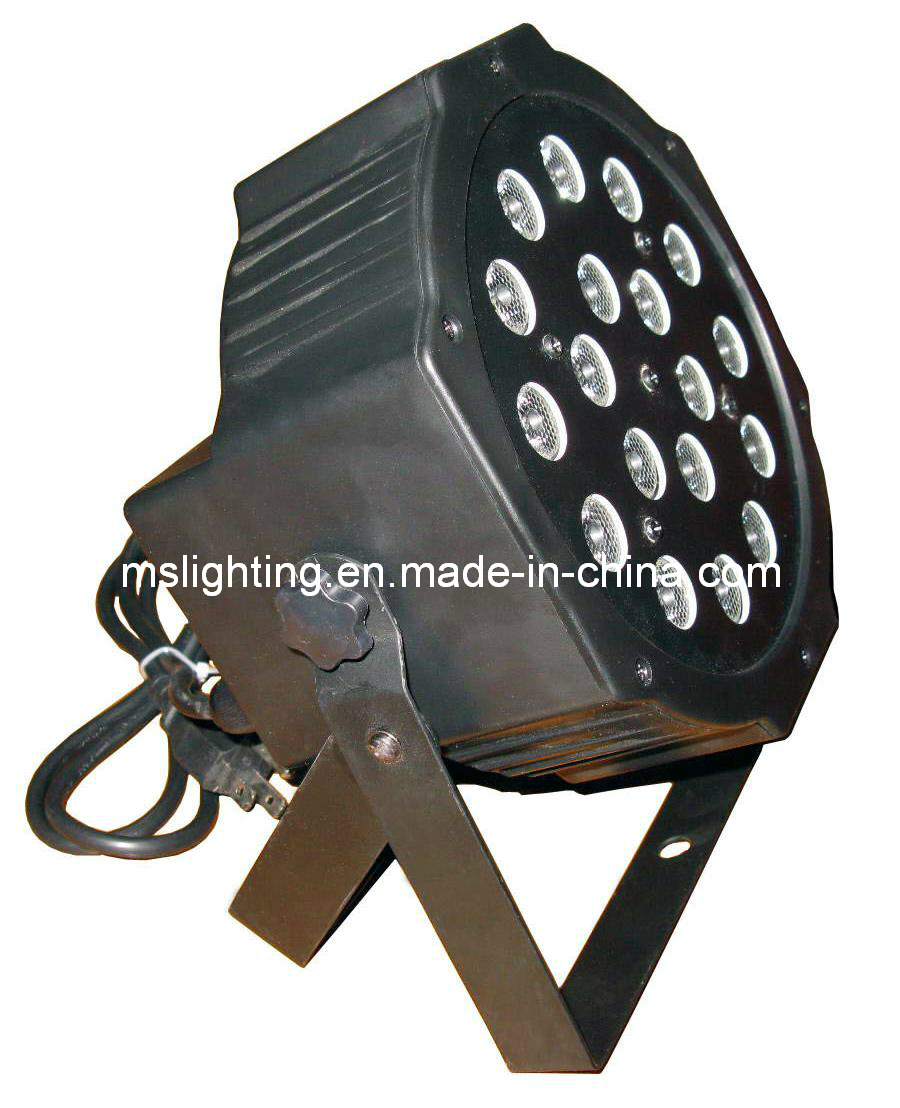

This light adopts in 18*1W LED as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The cover is aluminum, artistic generosity, with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting, electronic dimming from 0-100% (no color change) high-speed stroboscopic white or color change; Maximum ambient temperature of 40degree, the largest lamp temperature 60degree.
It is widely used in stage show, casino, advertisement, outside wall of mansion, etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
|
Specification: |
|
Model |
LED 115 (108*F10MM) |
LED 115A (18*1W RGB ) |
LED 115B (7*1W RGB) |
|
DMX Channel |
6CH |
6CH |
6CH |
|
Control panel |
LED Display |
LED Display |
LED Display |
|
Housing Material |
Plastic |
Plastic |
Plastic |
|
Housing Color |
Black/Silver |
Black/Silver |
Black/Silver |
|
Aperture Cover |
Plastic |
Plastic |
Plastic |
|
Operating voltage |
110V/220V,50/60Hz |
110V/220V,50/60Hz |
110V/220V,50/60Hz |
|
LED current |
20mA |
320mA |
320mA |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
Connector |
3-PinXLR (In and Out) |
3-PinXLR (In and Out) |
3-PinXLR (In and Out) |
|
NO.of LED |
108*F10MM RGB |
18*1W RGB |
7*1W RGB |
|
LED Life Time |
80000-100,000 hours |
80000-100,000 hours |
80000-100,000 hours |
|
Beam Angle |
25°/30° |
25°/30° |
25°/30° |
|
Power Consumption |
30W |
25W |
20W |
|
Light Projecting Distance |
2-15M |
2-20M |
2-20M |
|
IP Rating |
Indoor |
Indoor |
Indoor |
|
Operating Temperature |
-20ºC-+45ºC |
-20ºC-+45ºC |
-20ºC-+45ºC |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable |
|
5. 6CH DMX Value |
CH 1 _ General dimmer (1-255, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_Blue (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe & Color change/ color gradual change open |
|
CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
6.Control modes |
0: Sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
|
5. Adjusting the strobe speed manual |
|
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8.Adjustingcolor's gradual change manual |
|
9.Adjustinggradual change's speed |
|
7.Thermal |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
8. Guarantee |
2 years warranty (Except lamp-house). |
|
Each Package Included: |
|
1 * LED 115/115A/115B |
|
1 * User Manual |
|
1 * signal Cable (3-PinXLR) |
