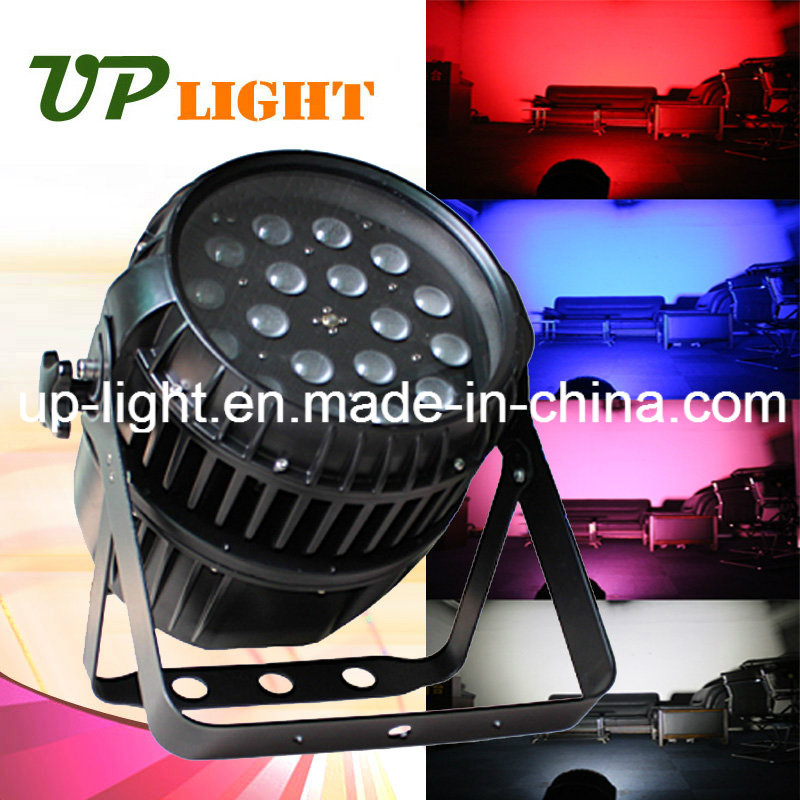

18*10W RGBW 4in1 Zoom LED PAR Light EffectInput voltage: AC100~220V 50~60Hz Power:240W
Light source: CREE America 10W 4in1 led chip = Bright light
Quantity 18pcs led chip(RGBW 4in1)
Rated life 80000~100000 hours
High luminous efficiency, no radiation, low power consumption, no flicker
Color: RGB linear color mixing, build-in multi-function
Lens angle: 150 standard (80,250, 300,450,600 optional)
Dimmer:0~100% linear dimmer
Strobe: 1~10 times / sec
Control mode: International standard DMX512 signal, 3-pin connect,4channels,DMX512 signal / master-slave / sound control, DMX address optional;Self-programming mode, Self-running mode, External control mode
Other function: IP address code extension, DMX address code extension, Build-in program
Environment temperature: -200 C ~400 C
Waterproof rating: Casting Aluminum shell, IP66
Display:LED display
Carton Size:300*300*380mm
Net weight: 7.8 kgProduction
5 channles | 6 channles | 7 channles | 8 channles | 13 channles | Function |
| CH 1 | CH 1 | CH 1 | CH 1 | Dimming |
CH 1 | CH 2 | CH 2 | CH 2 | CH 2 | RED |
CH 2 | CH 3 | CH 3 | CH 3 | CH 3 | GREEN |
CH 3 | CH 4 | CH 4 | CH 4 | CH 4 | BLUE |
|
| CH 5 | CH 5 | CH 5 | WHITE |
|
|
| CH 6 | CH 6 | Marco Function |
|
|
|
| CH 7 | Strobe |
|
|
|
| CH 8 | Internal Programming |
|
|
|
| CH 9 | Internal Programming Speed Adjustment |
|
|
|
| CH 10 | Dimming Speed |
|
|
|
| CH 11 | ID Address |
CH4 | CH5 | CH6 | CH 7 | CH 12 | Zooming |
CH5 | CH6 | CH7 | CH 8 | CH 13 | Zooming Speed |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
