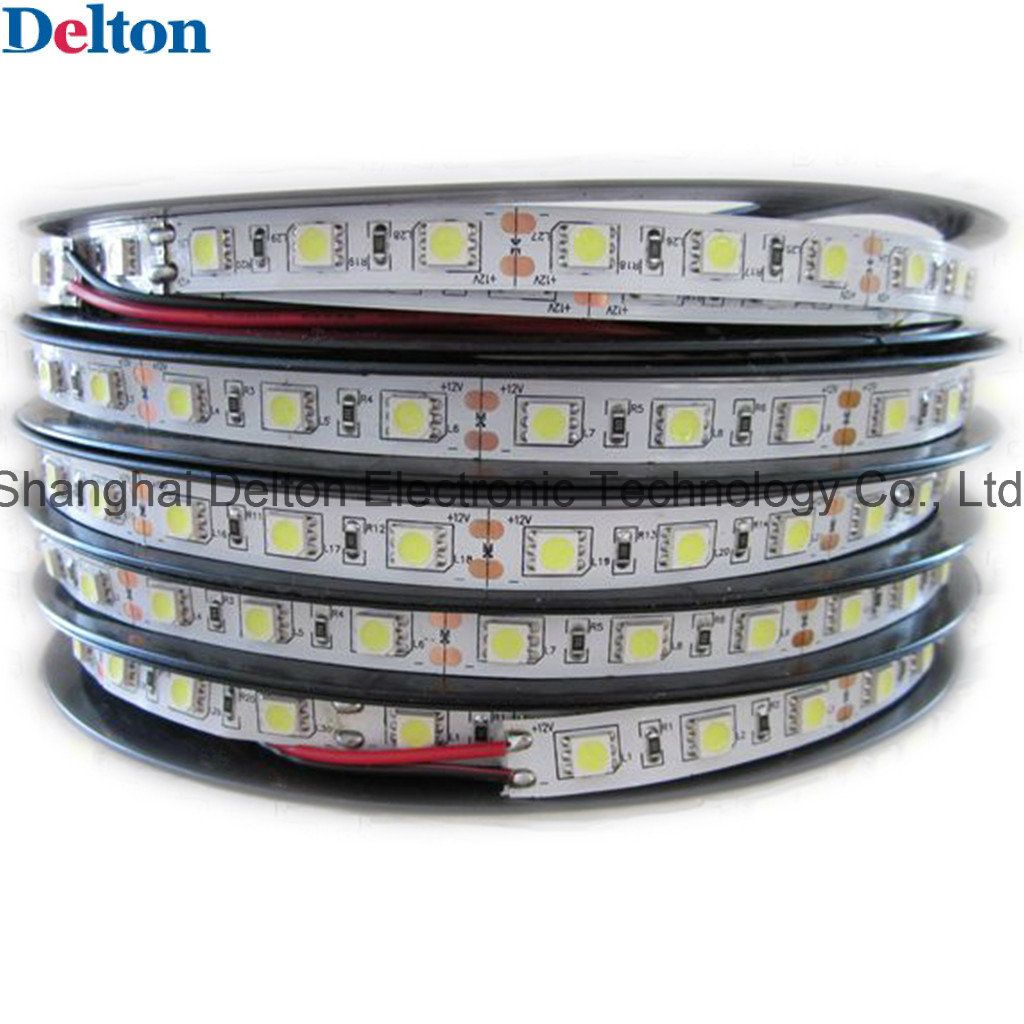

DC12V SMD5050 17.2W/M 12mm width Flexible LED Strip Light with CE Certificate
1.LED: SMD5050 high lumen high CRI LED
2. LED Quantity:72pcs/M
3. Circuit Board: Flexible Print Circuit Board(FPC)
4. Special Design: there are 72pieces of LED on one meter strip.Every 3 pieces of LED constitutes one 42mm long unit and one meter strip has 24 units. Each unit are independent and can be cutted to use as a short strip. Each unit has the max watt of 0.72W.
5. Power(watt): Max 17.28W/Meter when the working current is the max 60mA. The watt will lower down when the current sets to be lower
6. Working Current: Max 60mA.
Current is sincerely suggested to be lower than 55mA for heat dissipation and lifespan consideration.
The Strip can be designed to produce constant-current(20mA-55mA) strips to have a better stable brightness.
7. Input Voltage:DC12V. The light should connect with 12V external power supply. Direct connecting with electrcity is forbidden. The input voltage for the power supply is 85-265V, which means this light strip can be used in all the countries all over the world.
8. Strip width: 12mm(width ranges from 8mm to 18mm)
9. Avaliable Color Temperature:2700-10000K(Yellow, White,Blue, Red, Green, Purple and etc)
2700K-4000K(Warm White)
4500K-5500K (White)
6500K-10000K(Cold White)
10.CRI:there are three grades can be choosed:>75,>80,>90,With higher CRI, More Pure Color
11. Power Efficiency::≥90lm/W
12. The strip can be supplied with 3M self-adhesive tape on the back for the convenience of installing.
13. IP 44, Indoor application only.
The strip can be supplied with silicon sleeve outside the strip or can be covered by transparent epoxy layer, And the protection grade upgrade to IP65. It can be waterproof and can be used outdoor
14.Max Length:5M/strip.
The strip will be packaged in a round roll with max 5 meters one roll.
15. Lifespan: 30000hours
16. Warranty: 2 years.
17.Standard Packaging:In round reel with sealed plastic bag.
Attention:This strip can be supplied two ends with female and male joint for strip length above 5 meters, o it can be supplied with common black and red wire on one end.
Main Application
1.Light-Box lighting: Install around and behind the light box to get a better brightness.
2.Commercial Cabinet Lighting. Installed in the cabinets and stores as commercial lighting
3.Display Lighting. Use behind the display board to make it more bright and effective.
4.Decorative lighting. Use Colorful lights as decoration
5.General Lighting used as replacement of common lights.
6.Advertising Lighting. Use flexible strips to make different attractive letters.
7.Other Special Application
Below is the common product list of SMD2835 Flexible Strip Light:
| LED/M | Voltage | Current | Max Watt | Width |
| 48pcs/m | DC 12V | ≤ 60mA | 11.5W/m | 5-15mm |
| 60pcs/m | DC 12V | ≤ 60mA | 14.4W/m | 5-15mm |
| 90pcs/m | DC 12V | ≤ 60mA | 21.6W/m | 5-15mm |
| 120pcs/m | DC 12V | ≤ 60mA | 28.8W/m | 5-15mm |
| 48pcs/m | DC 24V | ≤ 60mA | 11.5W/m | 5-15mm |
| 60pcs/m | DC 24V | ≤ 60mA | 14.4W/m | 5-15mm |
| 84pcs/m | DC 24V | ≤ 60mA | 20.1W/m | 5-15mm |
| 120pcs/m | DC 24V | ≤ 60mA | 28.8W/m | 5-15mm |
Trade Term:
1. Payment Term: 30% pre-payment and the balance T/T , Paypal or L/C(if necessary) against the delivery.
2. Delivery Time: 15-30 days.
3. Sample: Avaliable
4. Sample Delivery Time: in 7 days
5. Sample Fee:Yes
