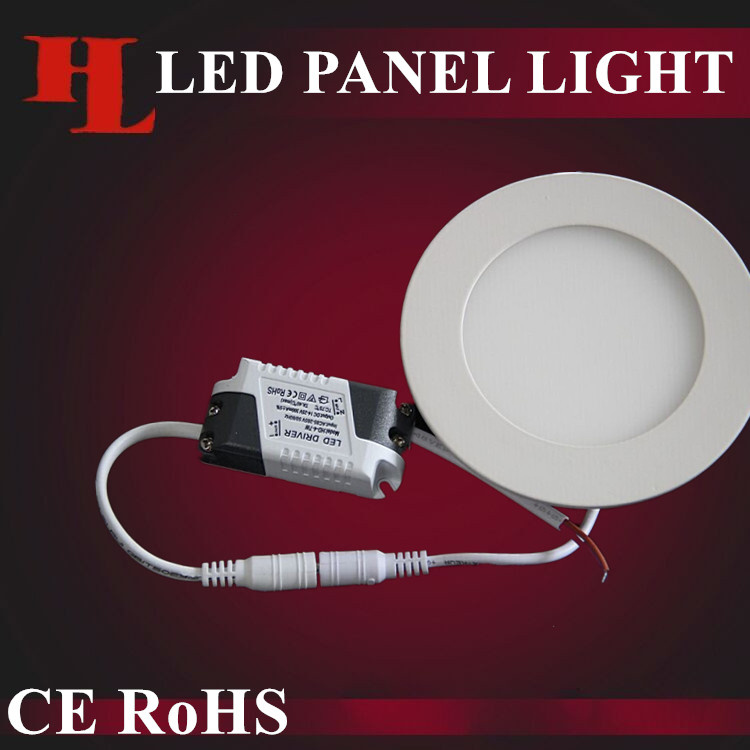

12W Round LED Panel Light Ultra-Slim LED Panel, 3/6/9/12/15/18/24W Optional
1. SMD2835 LED
2. AC85-265V
3. 85Lm/W
4. CE , RoHS certification
5. 2 years warranty
Feature
1. Beautiful and clean appearance, easy installation
2. High bright and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation, no heavy metals and hamful gas, environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption, save energy more 80% than traditional fluorescent lights
7. CE, RoHS certified, safe and reliable
8. Long life time, up to 30,000 hours
Presentation
Application
1. Commercial and exhibition locations
2. Hotel, shopping mall
3. Factory, office, residence
4. School, hospital
5. Other public places
Installation
1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
Packaging and Delivery
1. Packaging Details: Carton Size: 38*27*31cm PCS/CTN: 40pcs/CTN Gross Weigth:10.7KG
2. Delivery Time: 7-12 business days
Model Number
HL-PLR-12W
Power
12W
Input Voltage
AC85-265V
Size
170mm*20mm
Cut Out
155mm
Color Temperature
2700-6500K
LED Source
SMD2835 30pcs
Luminous flux
WW 1008lm / CW 1048lm
Body Meterial
Aluminum
Body Color
Metal White
Warranty
2 years warranty
Certification
CE, EMC, LVD, RoHS
