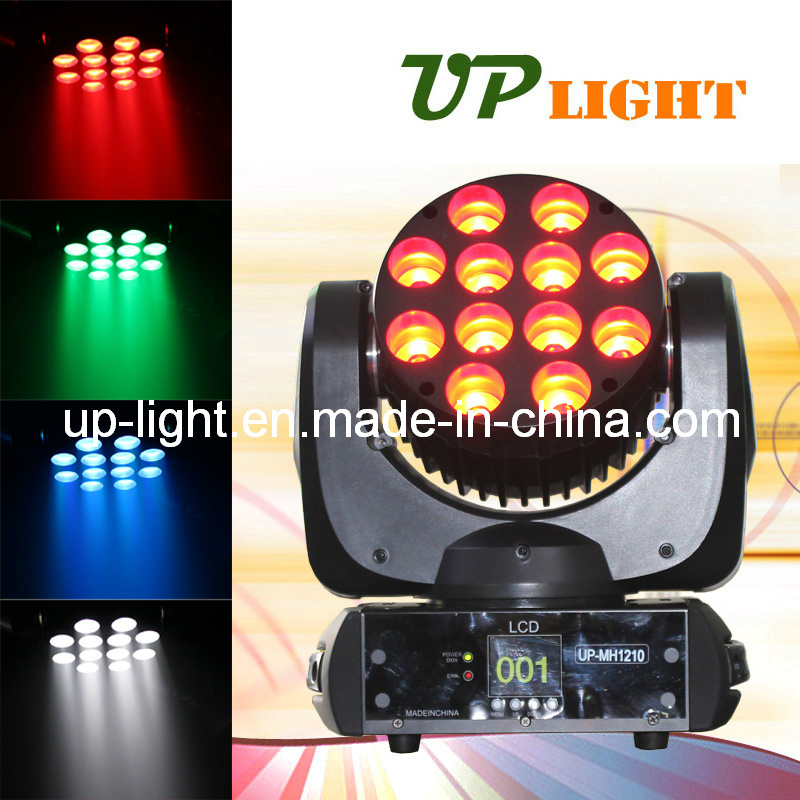

12*10w RGBW 4in1 led beam stage light
Technical Parameters
1. Power supply: AC110/220V, 50/60Hz, DC24V150W
2. Source: The 12 American CREE MC-E 4 in 1 series LED
3. Lifespan: 100000 hours
4. Color: RGBW four-color (12Pcs 4in1)
5. Lens: 12 degree beam lens
6. Counting positioning system: Double optical coupler, dual Holzer positioning
7. Driving mode: LED using constant current driver, Motor driven by mute
8. Control mode: The international standard DMX512, Auto Program, master-slave control
9. Channel mode: 8/10/15 channel
10. Cooling method: Using high thermal conductivity aluminum PCB, The high thermal conductivity aluminum, cooling fan, over-temperature protection
11. PAN / TILT: X630 /Y 240 degrees, fast running speed, Adjustable speed.
12. Dimmer: 0-100% linear dimming
13. Strobe: 1-25 / sec
14. Display: LCD display
15. Working environment: Indoor, -15 to 40 degrees
16. IP rating: IP20
17. Weight: 5KG
18. Dimension: 304*267*167MM
|
12 Channels |
15 Channels |
Function |
|
CH 1 |
CH 1 |
RGBW Dimming |
|
CH 2 |
CH 2 |
RED |
|
CH 3 |
CH 3 |
GREEN |
|
CH 4 |
CH 4 |
BLUE |
|
CH 5 |
CH 5 |
WHITE |
|
CH 6 |
CH 6 |
User-defined lighting |
|
CH 7 |
CH 7 |
Pan scanning |
|
CH 8 |
CH 8 |
Tilt scanning |
|
CH 9 |
CH 9 |
Pan scanning fine |
|
CH 10 |
CH 10 |
Tilt scanning fine |
|
CH 11 |
CH 11 |
Scanning speed |
|
CH 12 |
CH 12 |
Strobe |
|
|
CH 13 |
RGB marco function |
|
|
CH 14 |
Auto speed adjustment |
|
|
CH 15 |
ID code |
