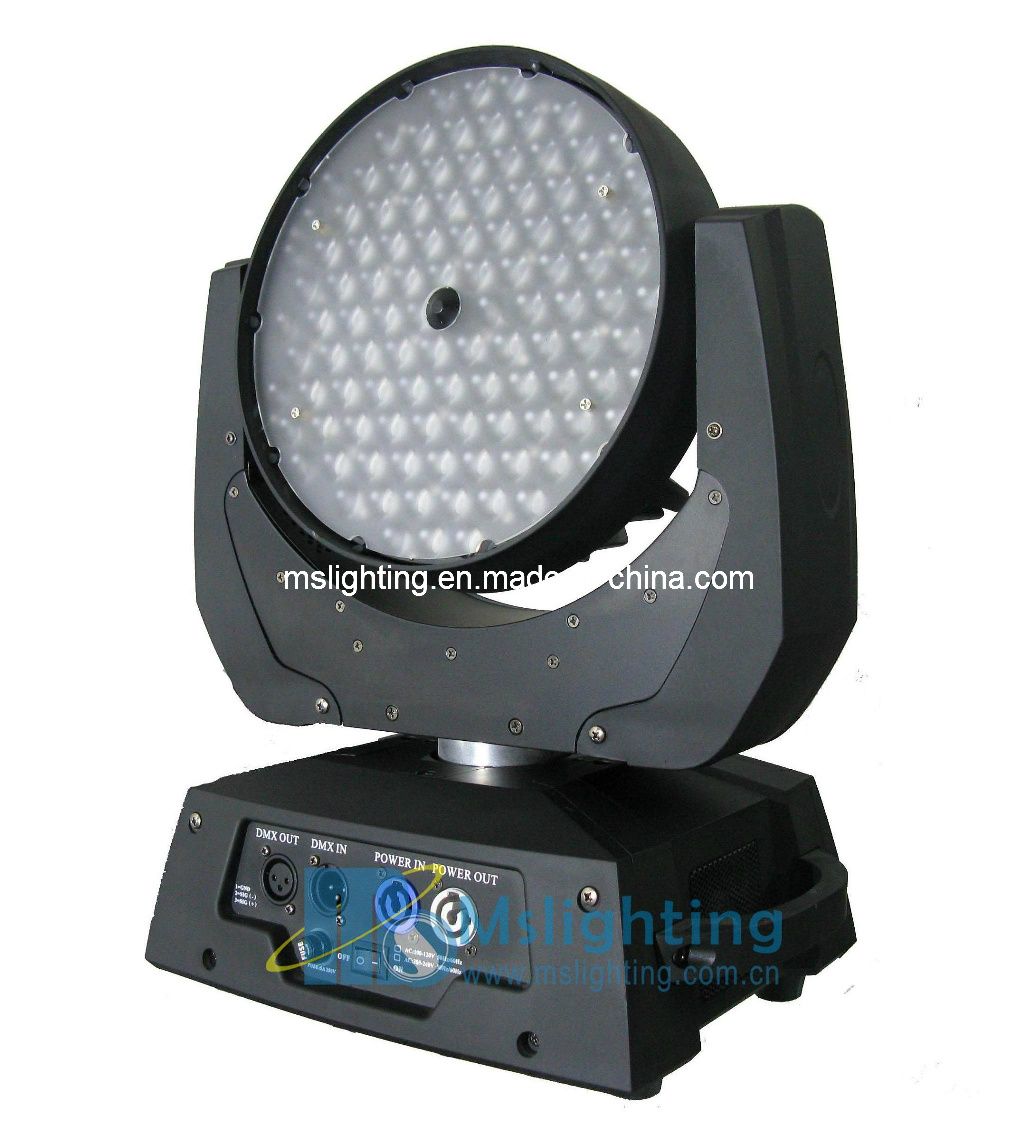

Voltage / frequency: 90V-240V/50-60Hz
Bulbs: 108*1W/3WRGB/RGBW LED Lamp
Power: 108W
Control signal: DMX 512, in sets at the automatic procedure
Channel: 14CH (RGB)/15CH (RGBW) DMX512 channel control
Color: 16.7 million kinds of colors changes
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the color tone
Strobe: 1-25/second high speed strobe, but single color mixes the color strobe
Low power consumption
Super luminance, with the efficiency of ordinary power bulbs, rich and splendid color
DMX-512 control signal, 14/15 standard channels
The housing is made of streamline fashionable PC engineering plastic after once casting
Wide range super tiny smooth scanning, horizontal scanning angle reaches 450° And vertical 270° , the scanning precision reaches 8bit and 16bit, with smooth and precise positioning, additionally, the scanning speed is adjustable
Infinite RGB color mixed system
The light beam angel can adjust from 10degree to 90degree freely
High speed electronic strobe reaches 1-18 times/second
Total light adjustment control channel can control 3 main color channels simultaneously
The digital display on the control panel can be reversed for 180° , applicable for horizontal or vertical use of moving head
With the functions of synchrony movement and music control
Meet CE standard, UL standard and GB7000.15-2000 standard.
|
Certification: |
CE,EMC, LVD, RoHs |
|
Electronic Dimmer: |
0-100% linear dimmer |
|
Electronic Strobe: |
1-30 flashes/second |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
ZOOM 10°-90°, adjustable freely |
|
Power Consumption |
108/324W |
|
Light Projecting Distance |
5-200M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20ºC-+45 ºC |
|

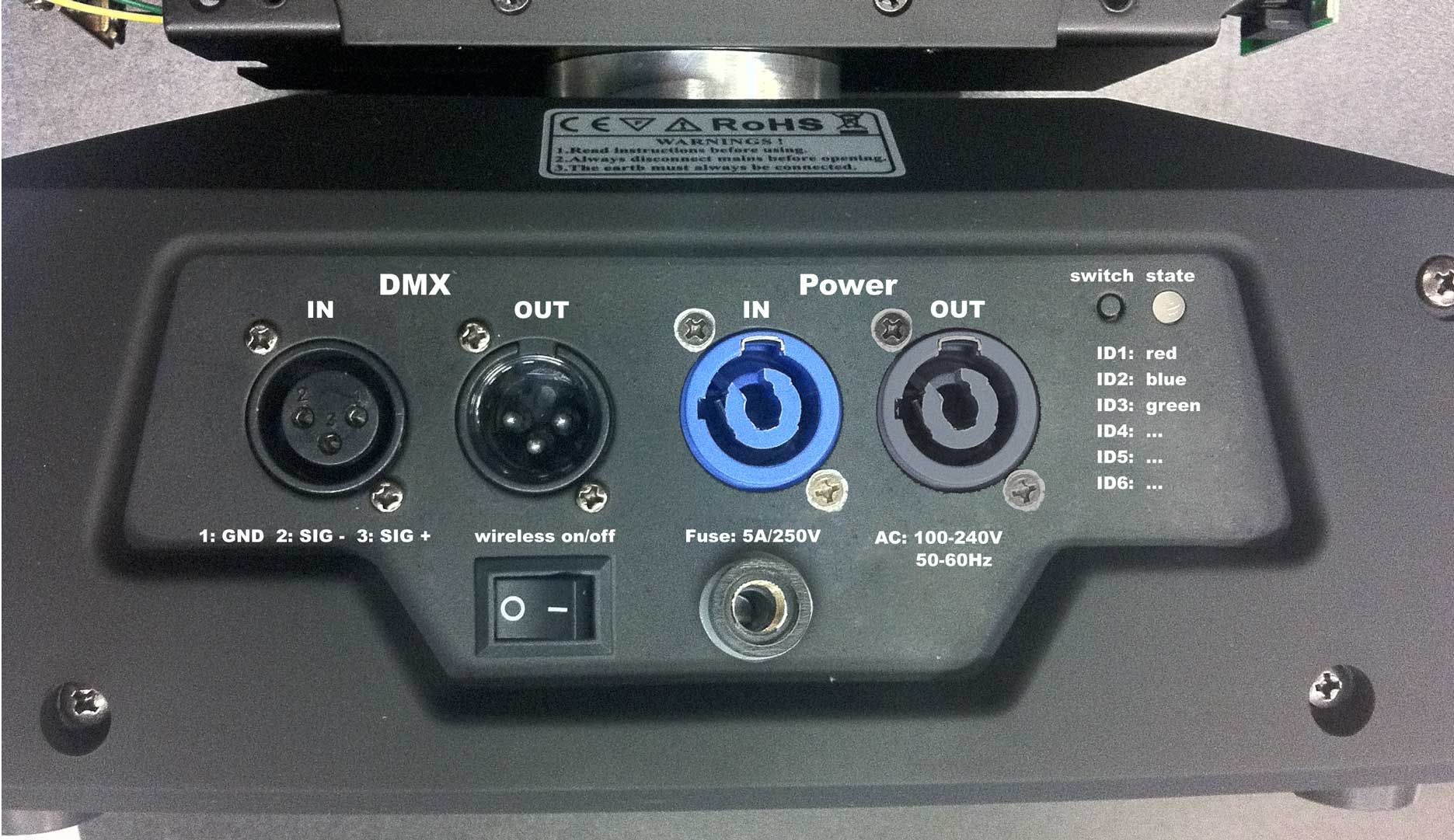

Power In: |
Fixed |
|
CRI (Ra>): |
95 |
|
Accessories: |
Power cable,power con cable,omega clamp, XLR DMX Signal cable,Safety Rope |
|
Cooling: |
Entire casing as heat sink plus noiseless fans |
|
Flicker Free |
Refresh Rate >1000 Hz |
|
Key point: |
Temperature-protected handly |
|
Thermal: |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
|
CH1 |
PAN |
|
CH2 |
TILT |
|
CH3 |
ZOOM |
|
CH4 |
Strobe / Reset |
|
CH5 |
Color |
|
CH6 |
Dimmer |
|
CH7 |
RED |
|
CH8 |
Green |
|
CH9 |
Blue |
|
CH10 |
White |
|
CH11 |
RGBW RAINBOW Effect & Speed adjustment |
|
CH12 |
X Fine |
|
CH13 |
Y Fine |
|
CH14 |
Motor Speed |
|
CH15 |
RUNNING MODE |
|
|
|
|
Packaging & Delivery |
|
|
Packaging Detail: |
Standard Export packing by carton or OEM package |
|
Delivery Detail: |
2-5 days for sample , 5-12 days for mass quantity order |
|
Shipping |
By DHL, UPS, FedEx, EMS or TNT, boat ,Air. |
|
Guarantee |
we guarantee that all the product have been shipped after the testing , if there any damage caused in transit , we can not control the entire process , if so , we are happy to communicate with you friendly solution. |
|
Items have 2 YEAR warranty. ( Except lamp-house). |
|
Note |
We can declare it as a 'GIFT/Sample' with a lower value Which you may reduce tax. But This lower price does not reflect the total price you paid or the market value of the product |

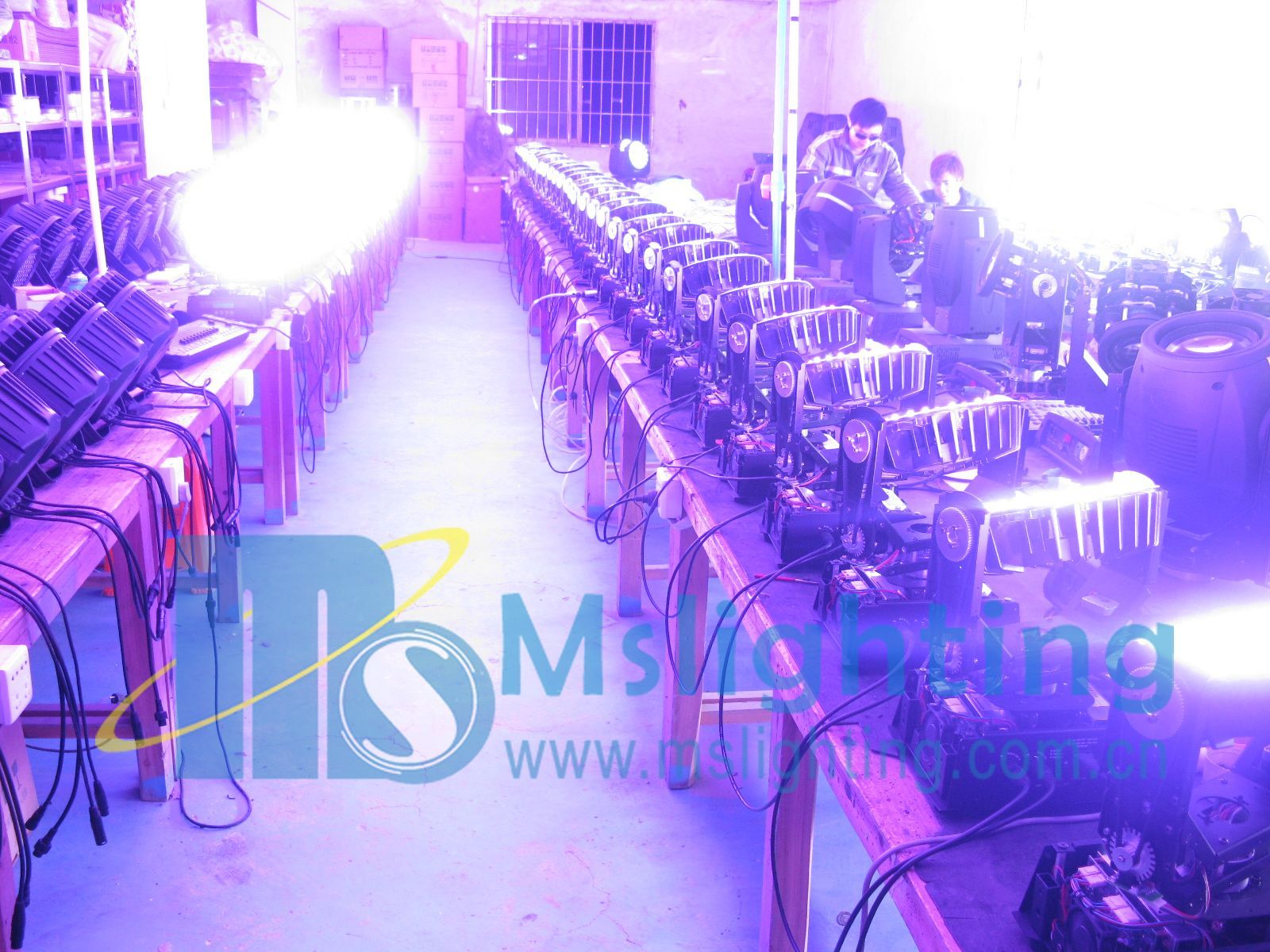

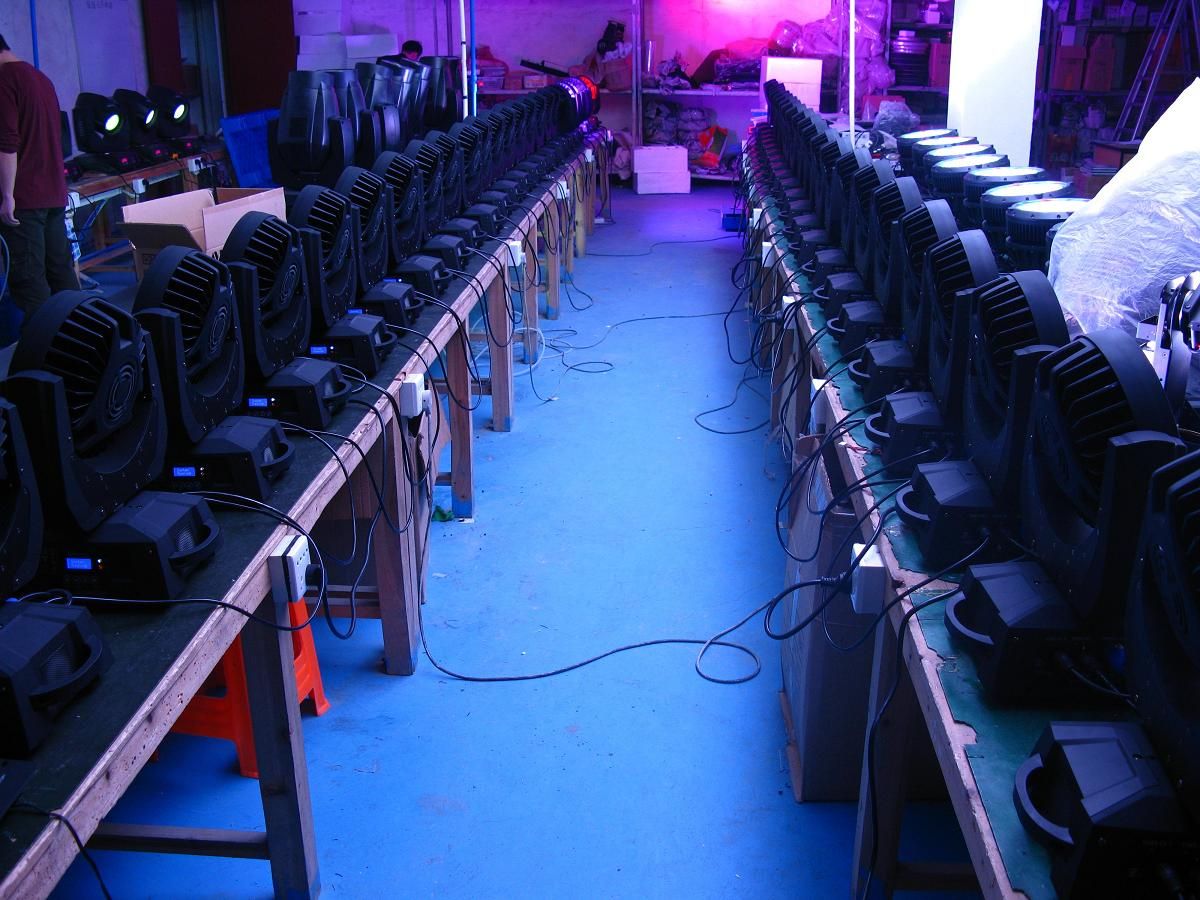

MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
