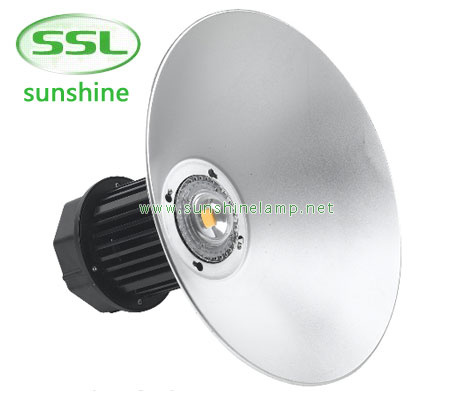

100W Power Outdoor LED high bay Light, IP65 High Brightness LED Floodlights With 3 Year Warranty
Description:
Item No.: SSL-HB-100W-01
Input Voltage: AC 90~277V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
LED High Bay Light Power Consumption: 100W
System Power Consumption: 100W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 120/90/45 30 degrees
Color Index: Ra≥ 80
Color Temperature: 2700-7000K
Operating temperature: -40~55
Protection Class: IP54
LED Lumen: 8000LM
Useful Life: ≥ 50000 hours
Weight: N. W.5.0KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
| 80W CREE LED HIGH BAY Light Main Technical Parameters |
| Item No.: | SSL-HB-100W-01 |
| Input Voltage: | AC 90~277V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 100W |
| LED Chip: | CREE |
| Power Driver: | Mean Well |
| LED QTY: | 80PCS CREE XML |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 80W |
| LED Luminous Flux | Warm White | 8000LM |
| Pure White | 8500LM |
| Cool White | 9000LM |
| Viewing Angle: | 120degree |
| Average Illuminance | Height 5M | 190LUX |
|
| Illuminance Area | Height 3M | Dia.6 M points visible |
| Height 4M | Dia.9M points visible |
| Height 5M | Dia.12 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115 |
| Working Temperature: | -40~50 |
| IP Grade: | IP54 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| The color of the lamp shell | Black and silver is available |
| Certificate | CE /ROHS/UL |
| Net Weight: | 3.0KG |
Applications:
It is suitable for workshop, factory building, storeroom, toll gate, gas station, large supermarket, exhibition hall and gy.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
