Quick Details
Type: Headlamps
Light Source: LED
LED Light Source: 3W USA CREE LED
Place of Origin: Zhejiang, China (Mainland)
Brand Name: BOZZ
Model Number: T7
Usage: Coal Mine, Mining
Power Source: Rechargeable Battery
Lighting Period (h): >12
Battery Type: Lithium Ion
Certification: CCC, CE
IP Rating: IP68
Lamp Body Material: ABS
Warranty(Year): 3
Lamp Power(W): 3
Rated capacity: 5.5Ah
Nominal voltage: 3.7V
Lighting time: ≥15
Style: Waterproof
Material: Plastic
Function: Illumination
Power Generation: Switch
Color: Blue
Packaging & Delivery
Packaging Details: | Per 20 pieces of mining lamp is packed in a carton, carton size: 36*36*44 |
|---|
| Delivery Detail: | About 10 days |
|---|
Miner lamp-A truly 3W USA imported CREE LED 10000lux powerful Head Lamp that Explosion Proof, Water Proof IP68, Electric Shock Proof, Moisture Proof and Impact Proof!!!
Main Technical Parameter:
No |
Item |
Unit |
Data |
1 |
Rated capacity |
Ah |
5.5 |
2 |
Nominal voltage |
V |
3.7 |
3 |
Lighting time |
h |
≥15 |
4 |
LEDlight source |
Rated voltage |
V |
4.2 |
Main light source |
mA |
350 |
Auxiliary light source |
mA |
150 |
5 |
Max illuminance at 1m |
Begin lighting(1meter) |
Lx |
10000 |
Lighting 11h |
Lx |
8000 |
6 |
Weight |
|
g |
400 |
7 |
Nos of battery cycle |
|
times |
≥800 |
8 |
Carton packing |
|
PCS/CNT |
20 |
9 |
Packing size |
|
cm |
36*36*44 |
10 |
With charger |
|
pcs |
1 |
Usage:
It is suitable for mineral industry,tunnel projects,construction and maintenance for power,
communication, highway, railway at night, night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood,rescuing and marine use.
Features:Lost cost ,high safety.
1. LED : less energy and super brightness LED
2. Battery : safety lithium ion battery
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
4. Lighting time : more than 20 working hours, double light source design
5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,1A
6. Working temperature : -10 ~ 45 degrees
7. Relative air humidity : <= 95% +- 3R
Technical specification:
1.Charger(Lithium ion):
It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.
2.LED:it adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 10000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
3.Battery (Lithium ion)
It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.

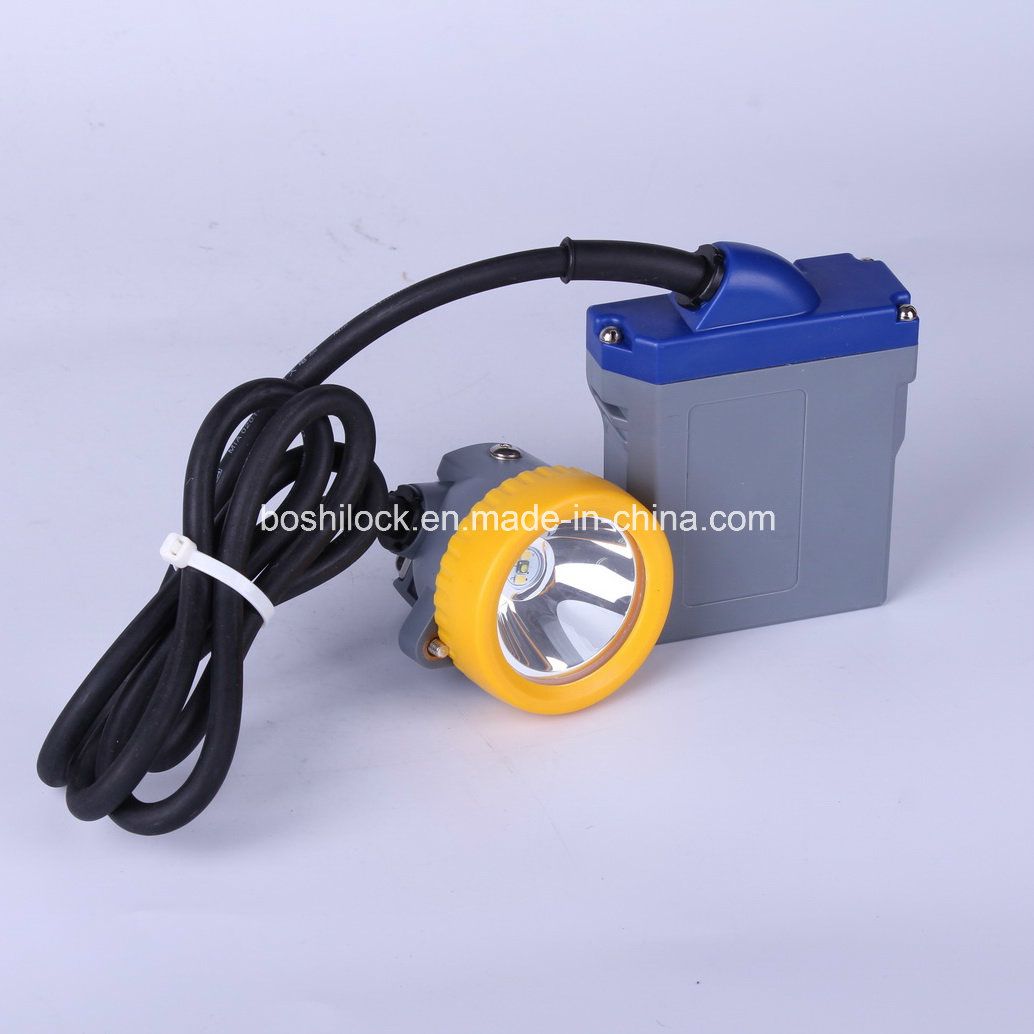

Product Images:
