LED Package Type .:
Oval 346
Shipment Terms:
by Sea or by Air
Wavelength:
R:620nm/G:524nm/B:468nm
Operating System:
Window97, XP, 2000
Signal Input:
RS232/485, DVI, Tp/IP
Tube Chip Color:
Full Color
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Scanning Mode:
1/4 Scan
Pixel Density:
10000 dot / m²
Display Function:
Video Display& Market Display& Advertising Displa
Certification:
CE, RoHS, UL, ETL
Product Description

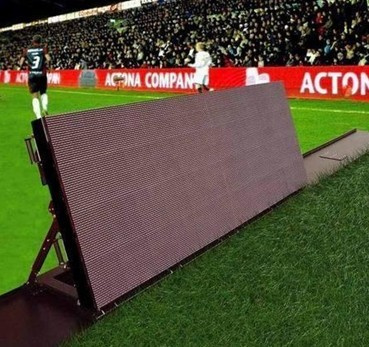

P16 Rental LED Displays for Outdoor Stadium Use
Features of the product: Features: 1) With good lightening accordance and no mosaic 2) Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment 3) Different video frequency can be changed freely at the same time, and the image Can be enlarged and reduced 4) High brightness, and can be adjustable, meets the need of changing requirement Of customer in environment 5) Uses real pixels rather than virtual pixels, better viewing effect Outdoor full color LED Display: Perfect vivid image, super brightness, long life span and stable work, waterproof; Support any format of video etc. LED Display Cabinet design for easy install and dismantle. ISO&CE certificates, best quality, best price.
Fujian Huajie Optoelectronics Co., Ltd
Fujian Huajie Optoelectronics Co., Ltd, located in Quanzhou , Fujian Province is one of the leading professional high-tech enterprises which specializes in LED display with registered capital 30 million RMB. After ten years' efforts, we have become one of the most professional global LED product suppliers which can provide the best LED solutions for customers, with covering an area of over 60000 square meters and more than 1300 staffs. Also, we have built our manufacturing base Channel Cailiang Optoelectronic Co., Ltd in Yunxiao , Zhangzhou ,the Chinese Optoelectronics Realm. At present, we have one skilled R&D team and a production line of highest automatic degree; our production capacity can be up to 50,000 pieces or 2,500 square meters per day. Our LED products have achieved ISO9001-2008, 3C, CE Certificate, etc. Now, at home we have built a thorough marketing and sales service system; meanwhile, our products have sold to more than 50 countries and areas, such as Russia, Turkey, USA, Canada, etc.
Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.
Our LED products have the below advantages:
1. Tube chip: the chip brand is Epistar; the size is over 9 mils; compared with other manufacturers, the lifetime is longer.
2. Mask: the unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.
3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.
4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.
5. Famous IC brand is adopted, whose quality is guaranteed.
number
Item name
Parameter and index
unit module
1
LED encapsulation mode
φ 4oval DIP
2
Horizontal axis
120°
3
Vertical axis
60°
4
Pixel composition
1R1G1B
5
Pixel pitch
16mm
6
Scan method
1/4
7
Drive method
Constant current
8
Module resolution
16× 8 pixels
9
Module dimensions
256mm× 128mm
10
Module type
incorporated lamp and drive
11
Module working voltage
+5V
12
Module average power
5W
13
Module maximum power
20W
14
Module shell material
PC
unit cabinet
1
Module layout
4× 6 pieces
2
Cabinet resolution
64× 48 pixels
3
Cabinet maximum power
600W
4
Cabinet average power
150W
5
Cabinet dimension
1024mm× 768mm
6
Cabinet material
steel/aluminum alloy
7
Cabinet color
black/gray
8
Protection grade (front/back)
IP65/IP54
Entire screen
1
Application environment
outdoor
2
Brightness
> 8000 mcd
3
White balance coordinates
X=0.29, Y=0.31
4
contrast
64000: 1
5
Color temperature
8000K
6
Pixel density (pixels/m² )
3906
7
Average consumption (W/m² )
191
8
Maximum consumption (W/m² )
763
9
Power source
AC220V/50HZ or AC110V/60HZ
10
Operating temperature
-20º C ~ +50º C
11
Operating humidity
10% - 90%
12
Storage humidity
-30º C~ +50º C
13
Refresh frame rate
60Hz
14
Refresh rate
480Hz
15
Viewing distance
15-300m
16
grayscale/color
16.7M
17
Brightness adjustment
100 manual levels /100 auto levels
18
Control method
synchronous with the computer display
19
Data transfer range
Network c able: 100m
20
Computer operating system
WINDOWS (98, 2000, XP, Vista, 7)
21
Video signal
VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on.
22
MTBF
≥ 10000 hours
23
Longevity
≥ 70000 hours
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
