| Prod Model: |
CL-P10-RGB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160mmx160mm |
| Rosolution Of Module: |
16*16dots |
| Brightness: |
6800 CD/M2 |
| Lamp Brand: |
Epistar |
| Chip: |
Mw16126 |
| Module Weight: |
0.468kg |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CCC |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
Product Description

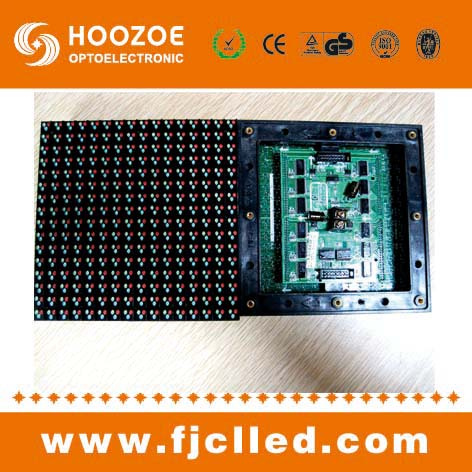

Outdoor P10 Full Color Led Display Modulewith patent design and high brightness (7000cd/m2), has become one of our most competitive led dipslay modules.
Product introduction

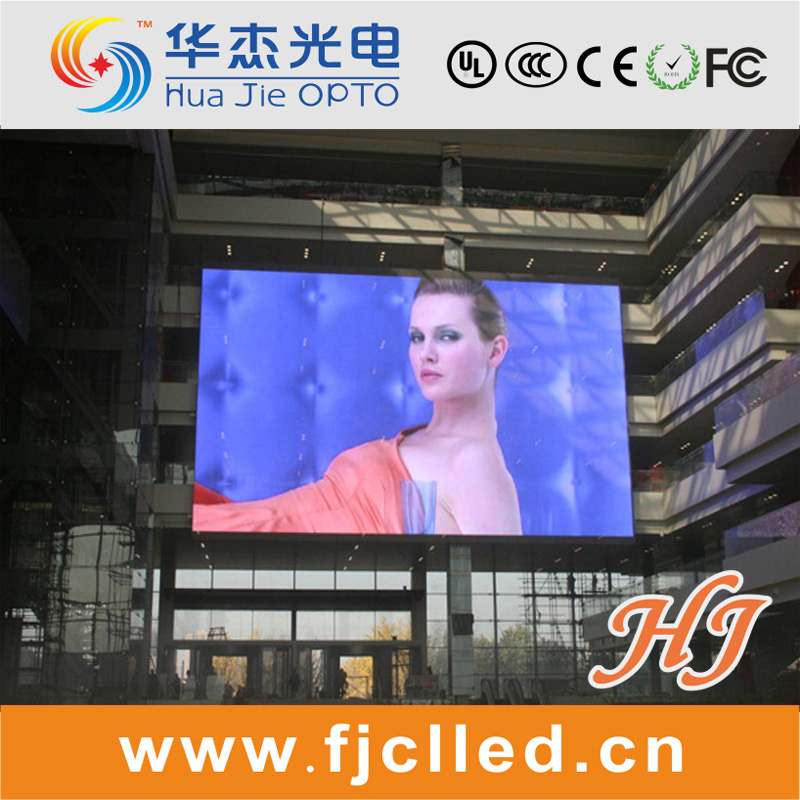

P10 Full color Led Display is mainly used for displaying text and image. Constant voltage a and current chip reduce the power consumption and prompt the stability. Simple module design is low-cost and easy to maintain. Neat appearance, light weight, and 5V safe voltage power supply system make the module more attractive. Besides, this product has some other features, such as waterproof front side and damp-proof back side, outdoor all-weather work, locating hole design and cabinet design, etc. And high brightness with uniform luminance is suitable for outdoor distant viewing. Advantages of outdoor P10 full color led display module:

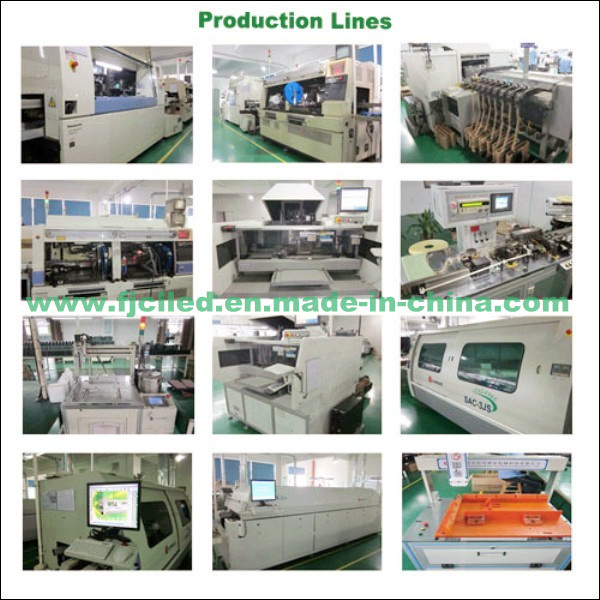

1. Fully Automatic Production Lines
Huajie Opto owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.
2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven,Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production.
3. Many Certificates Approved
CE, RoHS, CCC,ISO9001:2000 certified
4.Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!
|
Pixel Pitch |
10mm |
|
Color Composition |
1R1G1B |
|
Physical Density |
10, 000/m2 |
|
Size |
160mmHx160mmW ( 6.3" x6.3" ) |
|
Brightness |
6500-7000cd/m2 |
|
LED Package |
Oval 346 |
|
Work Life |
100, 000hours |
|
View Angle |
H: 110degree, V: 60degree |
|
Power Consumption |
30watts/module |
|
Power Consumption for Screen |
1, 000watts/m² Max, 300watts/m² Avg. |
|
Drive Mode |
1/4 Scan |
|
Drive ICs |
MBI5024, MW16126 |
|
Temp. |
-20 º C ~ 60 º C |
|
Humidity |
15%~90%RH |
|
Meight/Cabinet |
45 kgs/m² |
|
Standard Cabinet |
960mmx960mm (37.8" x37.8" ) |
|
Refresh Rate |
50-400Hz/sec. |
|
Gray Scale |
≥ 16.7M |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
