Panel Size:
320mmx160mm
Brightness:
2800 CD/Sqm
Refresh Rate:
600Hz
Viewing Distance:
6~55m
Viewing Angles:
H120/V70
Chip Type:
Epistar DIP546
Warranty:
2 Years
LED Chips:
Epistar
Power:
12W
LED Light Source:
Small Straw Hat
Waterproof:
Waterproof
Emitting Color:
Red
IP Rating:
IP65
1 LED Power:
<0.3W
Product Description
We supply LED modules for your integration and marketing which can save a lot of your time for R&D, purchasing & manufacturing & shipping. We are ready to supply you for your cost down & better quality control, we can either provide you with our controller and our standard software. Because we are sure it is a beneficial working relation if you leave the LED display module production to us. It will increase your profit and strengthen your market competition. Welcome your further detailed information.
FUJIAN HOOZOE OPTOELECTRONIC CO., LTD
Fujian Huajie Optoelectronics Co., Ltd, located in Quanzhou, Fujian Province is one of the leading professional high-tech enterprises which specializes in LED display with registered capital 30 million RMB. After ten years' efforts, we have become one of the most professional global LED product suppliers which can provide the best LED solutions for customers, with covering an area of over 60000 square meters and more than 1300 staffs. Also, we have built our manufacturing base Channel Cailiang Optoelectronic Co., Ltd in Yunxiao, Zhangzhou, the Chinese Optoelectronics Realm. At present, we have one skilled R&D team and a production line of highest automatic degree; Our production capacity can be up to 50, 000 pieces or 2, 500 square meters per day. Our LED products have achieved ISO9001-2008, 3C, CE Certificate, etc. Now, at home we have built a thorough marketing and sales service system; Meanwhile, our products have sold to more than 50 countries and areas, such as Russia, Turkey, USA, Canada, etc.
Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.
Our LED products have the below advantages:
1. Tube chip: The chip brand is Epistar, the size is over 9 mils; Compared with other manufacturers, the lifetime is longer.
2. Mask: The unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.
3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.
4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.
5. Famous IC brand is adopted, whose quality is guaranteed.

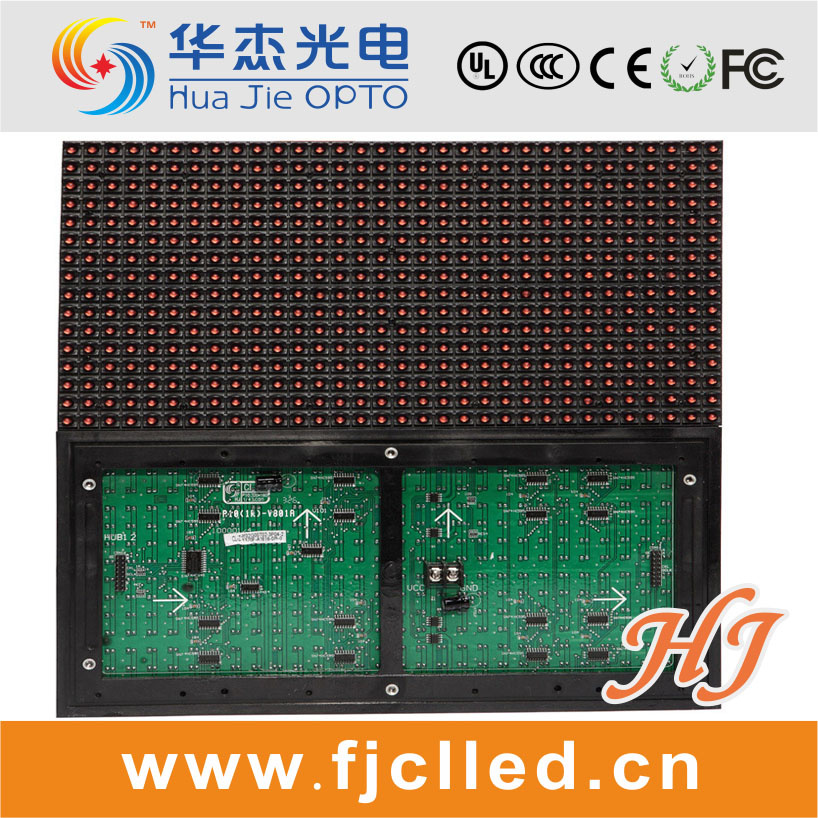

P10 Single Color Outdoor Module
Item
Unit
Parameter
Pixel Pitch
mm
10.00
Resolution of Module
dots
32x16
Module Size
mm
320x160
Led Package
DIP Oval 546 Lamp
Pixel Configuration
1R/1G/1B/1W/1Y Optional
Chip Brand of LEDs
Epistar
Module Weight
kgs/pc
0.65
Pixel Density
dots/sqm
10, 000
Brightness (White Balance)
nits(cd/sq. m)
2500-3500
Red Wavelength
nm
620-625
Green Wavelength
nm
520-525
Blue Wavelength
nm
470-475
Scan Mode
1/4 Scan
Viewing Distance
M
5~100
Best View Distance
M
12.5~33m
Viewing Angle-Horizontal
deg.
80
Viewing Angle-Vertical
deg.
60
Module Maximum Power
W
20
Max. Power Consumption
W/sq. m
400
Avg. Power Consumption
W/sq. m
100~250
Working Voltage
40A 5V
Power Supply
AC 110/220V
Waterproof Grade
IP65
Refresh Rate
Hz/S
300
Frame Rate
Hz/S
≥ 60
Gray Scale
256 grade
Display Function
Image& Texts
Input Signal
RS232/485, USB, Ethernet
Luminance Degradation
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade.
Defective Dot Rate
< 0.0001
Life Span
hours
100, 000
MTBF
hours
> 5, 000
Storage Temperature
centigrade
-35 -- +80
Working Temperature
centigrade
-20 -- +80
Control System
Asynchronous or Synchronous
Quality Certificate
CE, CCC, ISO9001: 2008
Warranty
2 Years
Working Environment
Outdoor
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
