| Prod Model: |
UP-PF1810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
18PCS*10W CREE |
| LED Luminance: |
More Than 5, 000 Lux |
| Average Life: |
80000~100000 Hours |
| Color System: |
RGBW 4 in 1 Colours Mixing System |
| Color Effect: |
Uniform Color Washing Effect |
| Zoom: |
Linear Zooming |
| Lens: |
High Efficiency and Transmission Large Lens |
| Lens Angle: |
Standard 15 Degree |
| Power: |
10W |
| Waterproof: |
Waterproof |
| IP Rating: |
IP66 |
| Life: |
80000h |
| Electric Current Type: |
AC |
| Shell Material: |
Aluminium Alloy |
| LED Chips: |
CREE |
| Certification: |
RoHS |
| Type: |
PAR18 |
| Emitting Color: |
RGBW |
| Input Voltage: |
AC100V-220V, 50/60Hz |
Product Description

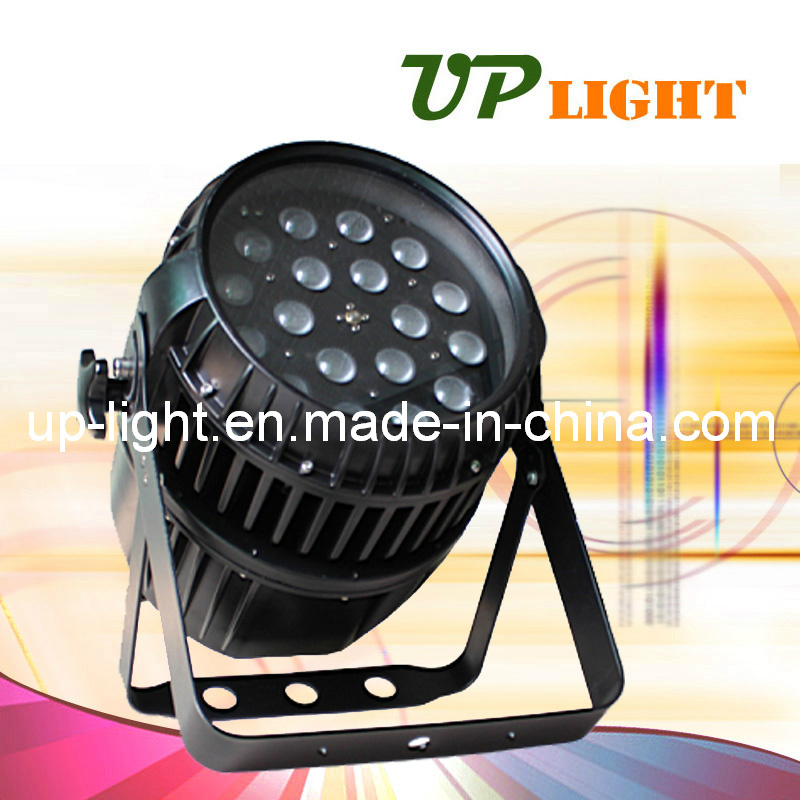

Waterproof 18pcs 10W RGBW LED PAR Zoom
Input voltage: AC100~220V 50~60Hz
Power: 240W
Light source: CREE America 10W 4in1 led chip = Bright light
Quantity 18pcs led chip(RGBW 4in1)
Rated life 80000~100000 hours
High luminous efficiency, no radiation, low power consumption, no flicker
Color: RGB linear color mixing, build-in multi-function
Lens angle: 150 standard (80, 250, 300, 450, 600 optional)
Dimmer: 0~100% linear dimmer
Strobe: 1~10 times / sec
Control mode: International standard DMX512 signal, 3-pin connect, 4channels, DMX512 signal / master-slave / sound control, DMX address optional; Self-programming mode, Self-running mode, External control mode
Other function: IP address code extension, DMX address code extension, Build-in program
Environment temperature: -200 C ~400 C
Waterproof rating: Casting Aluminum shell, IP66
Display: LED display
Carton Size: 300*300*380mm
Net weight: 7.8 kg
CHANNEL | CHANNEL FUNCTION |
| CH 1 | DIMMER |
| CH 2 | RED |
| CH 3 | GREEN |
| CH 4 | BLUE |
| CH 5 | WHITE |
| CH 6 | MUTIL-FUNCTION |
| CH 7 | STROBE |
| CH 8 | BLUID-IN PROGRAM |
| CH 9 | BLUID-IN PROGRAM SPEED |
| CH10 | DIMMER SPEED |
| CH11 | ID ADDRESS |
| CH12 | ZOOM |
| CH13 | ZOOM SPEED |
