LED Source:
36PCS 12W 6 in 1 LED
LED Lifetime:
80000~100000 Hours
LED Luminance:
More Than 5, 000 Lux
Color:
RGBWA +UV Color Mixing System
Gray Level:
256*256*256
Lens:
High Efficiency and Transmission Large Lens
Lens Angle:
40 Degree/20 Degree/25degree
Emitting Angle:
45 Degree And25 Degree
Strobe:
Multi-Function Strobe with Soft Light Effect
Control:
DMX Control
Type:
PAR36
Waterproof:
Not Waterproof
IP Rating:
IP20
Electric Current Type:
AC
Shell Material:
Aluminium Alloy
Certification:
RoHS
Emitting Color:
RGBWA+UV
Power:
450
Life:
80, 000~100, 000 Hours
Input Voltage:
AC100V-240V, 50/60Hz
Product Description

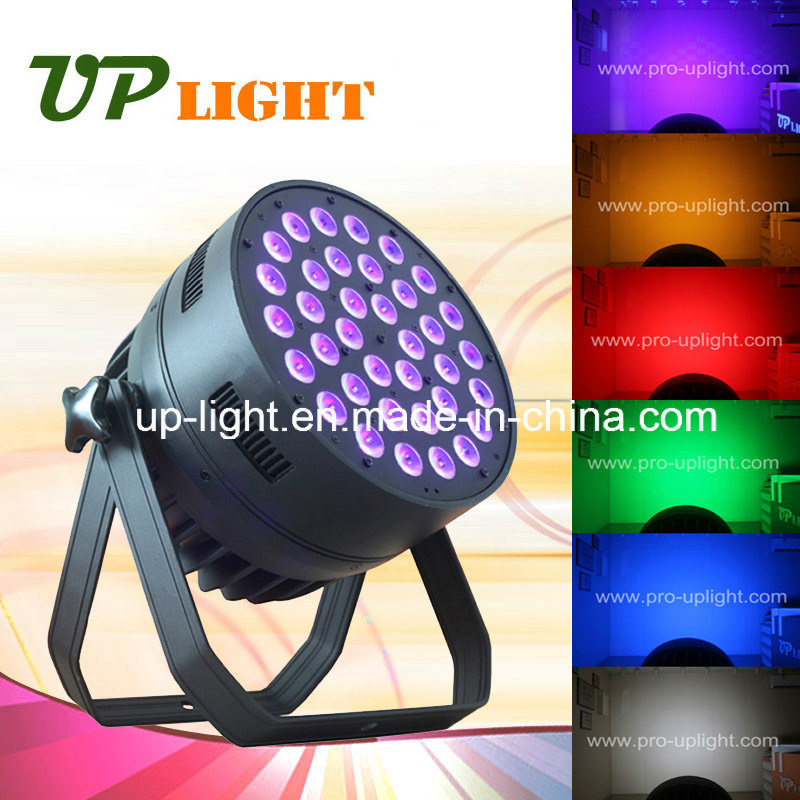

36pcs12w RGBWA +UV Zoom 6in1 Wash LED PAR Can
Emitting Color:
40 ° Wash Color:
Technical Parameters:
UP-PALD3612 36x12w RGBWAUV 6in1 led par
Tech Spec
Input voltage
AC100V-240V, 50/60HZ;
Rated power
450W;
Light source
36pcs Nominal Power 12w UV+A+R+G+B+W 6 in 1 LEDs;
80000~100000 hours life time;
High luminous efficiency, no radiation, low power consumption, no flicke;
LED Lamp powr supply
Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode
Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Color system

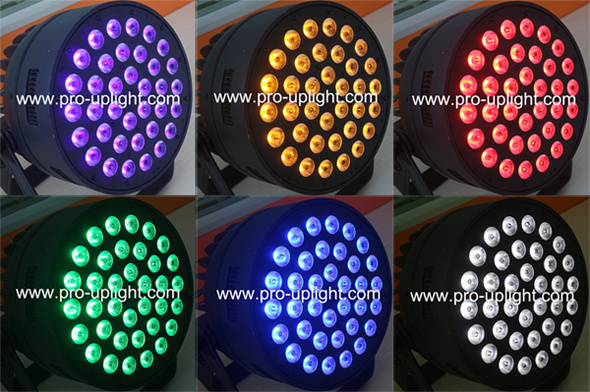

Sophisticated Ultraviolet, Amber, Red, Green, Blue, White 6 colors mixing system with color rainbow which is reaching high colour rendering index and the most favorite color mixing way for lighting technician;
Color effect
Uniform color washing effect with no colour shadows, rich saturated and more pastel lighting;
Lens
36pcs high efficiency and transmission large lens;
Lens angle
40°/25°/20°optional;
IP rating
IP20;
Strobe
Multi-function strobe with soft light effect;
Dimmer
0~100% linear dimmer;
Control mode
DMX512 signal 3-pins/5-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode;
Channel
6CH, 10CH;
Other function
DMX address can be adjusted; DMX address extension function; IP address extension function;
Working temperature
-15° C ~45° C;
Shell material
Aluminum alloy;
Application
Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc;

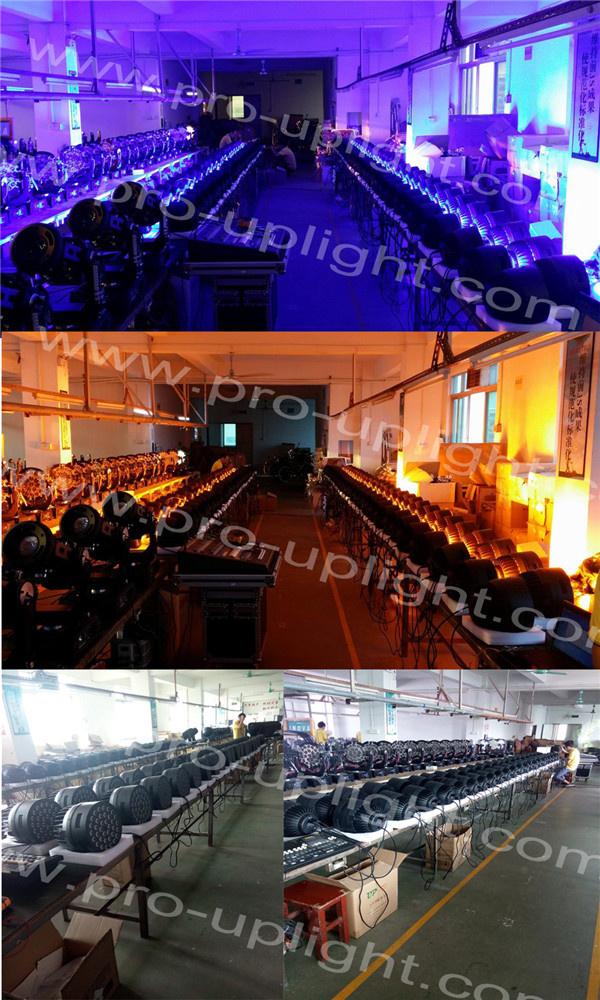

Production Line:
Channel List:
6 channles
10 channles
Function
CH 1
Dimming
CH 1
CH 2
RED
CH 2
CH 3
GREEN
CH 3
CH 4
BLUE
CH 4
CH 5
WHITE
CH 5
CH 6
ULTRAVIOLET
CH 6
CH 7
AMBER
CH 8
Strobe
CH 9
Speed
CH 10
Auto Running & Sound Control
