| Prod Model: |
UP-PF1810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
240W |
| Light Source: |
18PCS 10W RGBW 4in1 LED Chip |
| LED Luminance: |
More Than 5,000 Lux |
| Color System: |
RGBW 4 in 1 Colours Mixing System |
| Color Effect: |
Uniform Color Washing Effect |
| Zoom: |
Linear Zooming |
| Lens Angle: |
Standard 15 Degree |
| Emitting Angle: |
10~60 Degree |
| Power Supply: |
Meanwell |
| Warranty: |
1 Year |
| Waterproof: |
Waterproof |
| Shell Material: |
Aluminium Alloy |
| Electric Current Type: |
AC |
| IP Rating: |
IP66 |
| Life: |
80000h |
| Certification: |
RoHS |
| LED Chips: |
CREE |
| Power: |
10W |
| Emitting Color: |
RGBW |
| Type: |
PAR18 |
| Input Voltage: |
AC100~220 |
Product Description

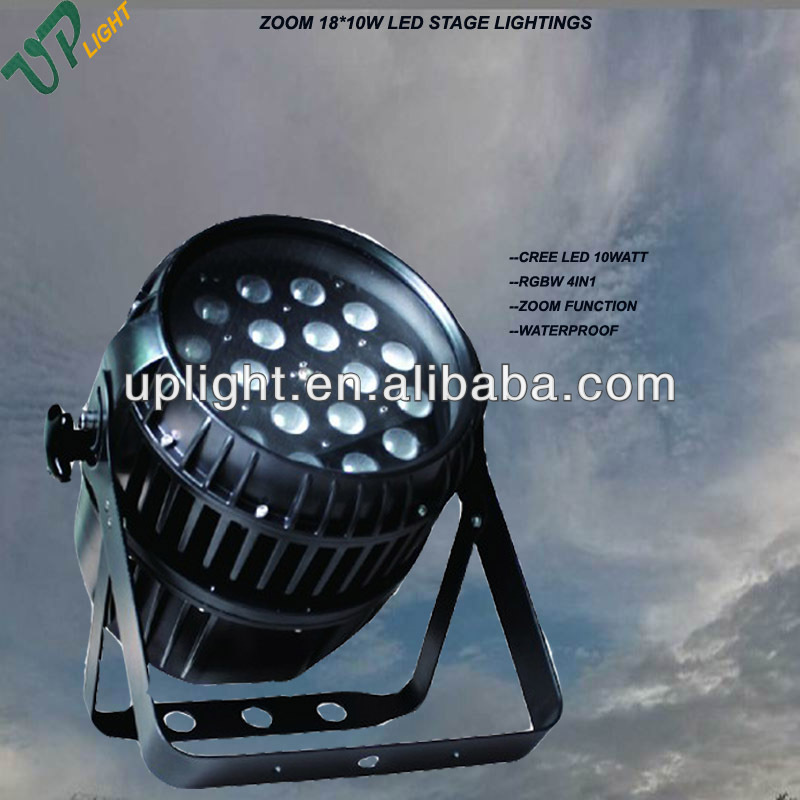

Waterproof 18*10watt RGBW 4in1 zoom led wall washer
(Item#: UP-PLC1810)
Tech Spec:
Input voltage: AC100~220V 50~60Hz
Power: 240W
Light source: Power 10watt
Quantity 18pcs led chip(RGBW 4in1)
Rated life 80000~100000 hours
High luminous efficiency, no radiation, low power consumption, no flicker
Color: RGB linear color mixing, build-in multi-function
Lens angle: 150 standard (8 degree, 25 degree, 30 degree, 45 degree, 60 degree optional)
Dimmer: 0~100% linear dimmer
Strobe: 1~10 times / sec
Control mode: International standard DMX512 signal, 3-pin connect
4channels DMX512 signal / master-slave / sound control, DMX address optional
Self-programming mode, Self-running mode, External control mode
Other function: IP address code extension, DMX address code extension, Build-in program
Environment temperature: -20 degree ~40 degree
Waterproof rating: Casting Aluminum shell, IP66
Display: LED display
Carton Size: 300*300*380mm
Net weight: 7.8 kg
|
5 channles |
6 channles |
7 channles |
8 channles |
13 channles |
Function |
|
|
CH 1 |
CH 1 |
CH 1 |
CH 1 |
Dimming |
|
CH 1 |
CH 2 |
CH 2 |
CH 2 |
CH 2 |
RED |
|
CH 2 |
CH 3 |
CH 3 |
CH 3 |
CH 3 |
GREEN |
|
CH 3 |
CH 4 |
CH 4 |
CH 4 |
CH 4 |
BLUE |
|
|
|
CH 5 |
CH 5 |
CH 5 |
WHITE |
|
|
|
|
CH 6 |
CH 6 |
Marco Function |
|
|
|
|
|
CH 7 |
Strobe |
|
|
|
|
|
CH 8 |
Internal Programming |
|
|
|
|
|
CH 9 |
Internal Programming Speed Adjustment |
|
|
|
|
|
CH 10 |
Dimming Speed |
|
|
|
|
|
CH 11 |
ID Address |
|
CH4 |
CH5 |
CH6 |
CH 7 |
CH 12 |
Zooming |
|
CH5 |
CH6 |
CH7 |
CH 8 |
CH 13 |
Zooming Speed |
|
|
|
|
|
|
|
