| Prod Model: |
UP-PLD1210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Source: |
12PCS 10W CREE RGBW 4 in 1 LED |
| LED Lifetime: |
80000~100000 Hours |
| LED Luminance: |
More Than 5, 000 Lux |
| Color: |
RGBW Color Mixing System |
| Gray Level: |
256*256*256 |
| Lens: |
High Efficiency Large Lens with Beam Effec |
| Lens Angle: |
8 Degree or 22 Degree |
| Emitting Angle: |
15 Degree |
| Strobe: |
Multi-Function Strobe with Soft Light Effect |
| Control: |
DMX512 4CH or 8CH |
| Waterproof: |
Waterproof |
| Shell Material: |
Aluminium Alloy |
| Electric Current Type: |
AC |
| Emitting Color: |
RGB |
| Certification: |
RoHS |
| LED Chips: |
CREE |
| IP Rating: |
IP62 |
| Life: |
80, 000~100, 000 Hours |
| Type: |
PAR12 |
| Input Voltage: |
AC100V-240V, 50/60Hz |
| Power: |
120W |
Product Description

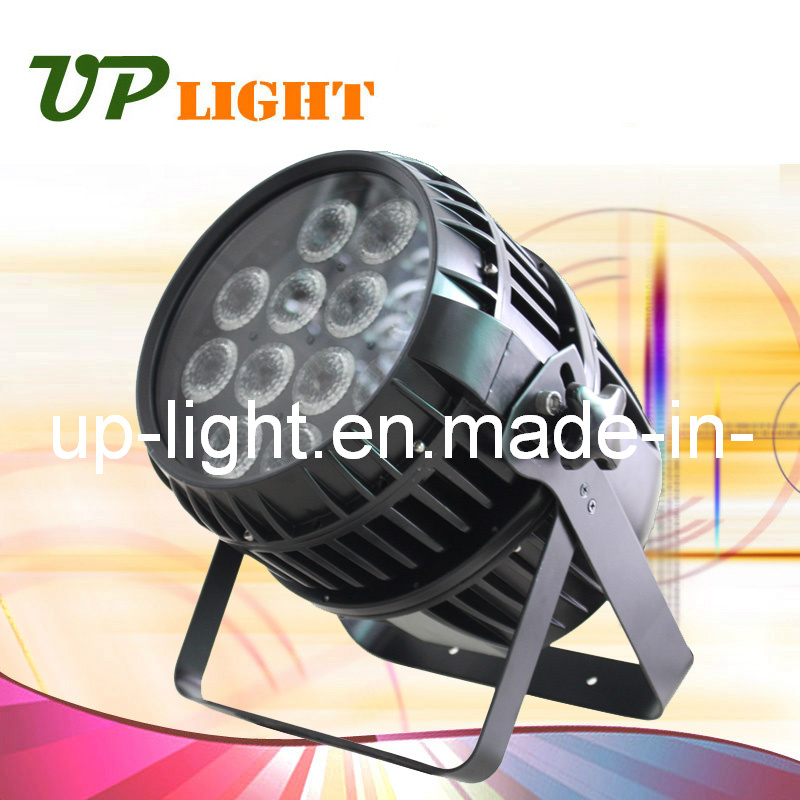

Waterproof 12PCS*10W RGBW 4in1 LED PAR
Input voltage: AC100V-240V, 50/60HZ;
Rated power: 120W;
LED: 12pcs * 10W CREE high power and supper brightness RGBW 4 in 1 LEDs;
LED lifetime: 80000~100000 hours;
LED luminance: More than 5, 000 lux;
Color: RGBW color mixing system with color rainbow and HSL color mixing adjustment which is the most favorite color mixing way for lighting technician;
Gray level: 256× 256× 256
Lens: 12pcs high efficiency large lens can generate beam effect;
Lens angle: 8° Or 22° Optional;
Emitting angle: 15° ;
Waterproof grade: IP62;
Strobe: Multi-function strobe with soft light effect;
Dimmer: 0%~100% linear dimming;
Display: LED display;
Control: DMX512 signal 3-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode;
Channel: 4CH or 8CH;
Other function: DMX address can be adjusted; DMX address extension function; IP address extension function;
Material: Aluminum alloy composites plastic;
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc;
Packing size: 300× 300× 390mm;
New weight: 10kg;
|
Channel 4 |
Channel 8 |
Function |
|
|
Ch 1 |
Dimming |
|
Ch 1 |
Ch 2 |
RED |
|
Ch 2 |
Ch 3 |
GREEN |
|
Ch 3 |
Ch 4 |
BLUE |
|
Ch 4 |
Ch 5 |
WHITE |
|
|
Ch 6 |
Strobe |
|
|
Ch 7 |
Speed |
|
|
Ch 8 |
Soft light mixing |
