| Prod Model: |
OED-P30030024W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Aluminum Alloy |
| LED Type: |
2835SMD |
| Warranty: |
2 Years |
| Lifespan: |
50000 Hours |
| Appearance: |
Square |
| Type: |
Embedded |
| Emitting Color: |
White |
| Certification: |
VDE |
| Voltage: |
85V-265V |
| Dimmable: |
With Dimmable |
| Light Source: |
Aluminum Alloy |
| Housing Material: |
Aluminum Alloy |
Product Description

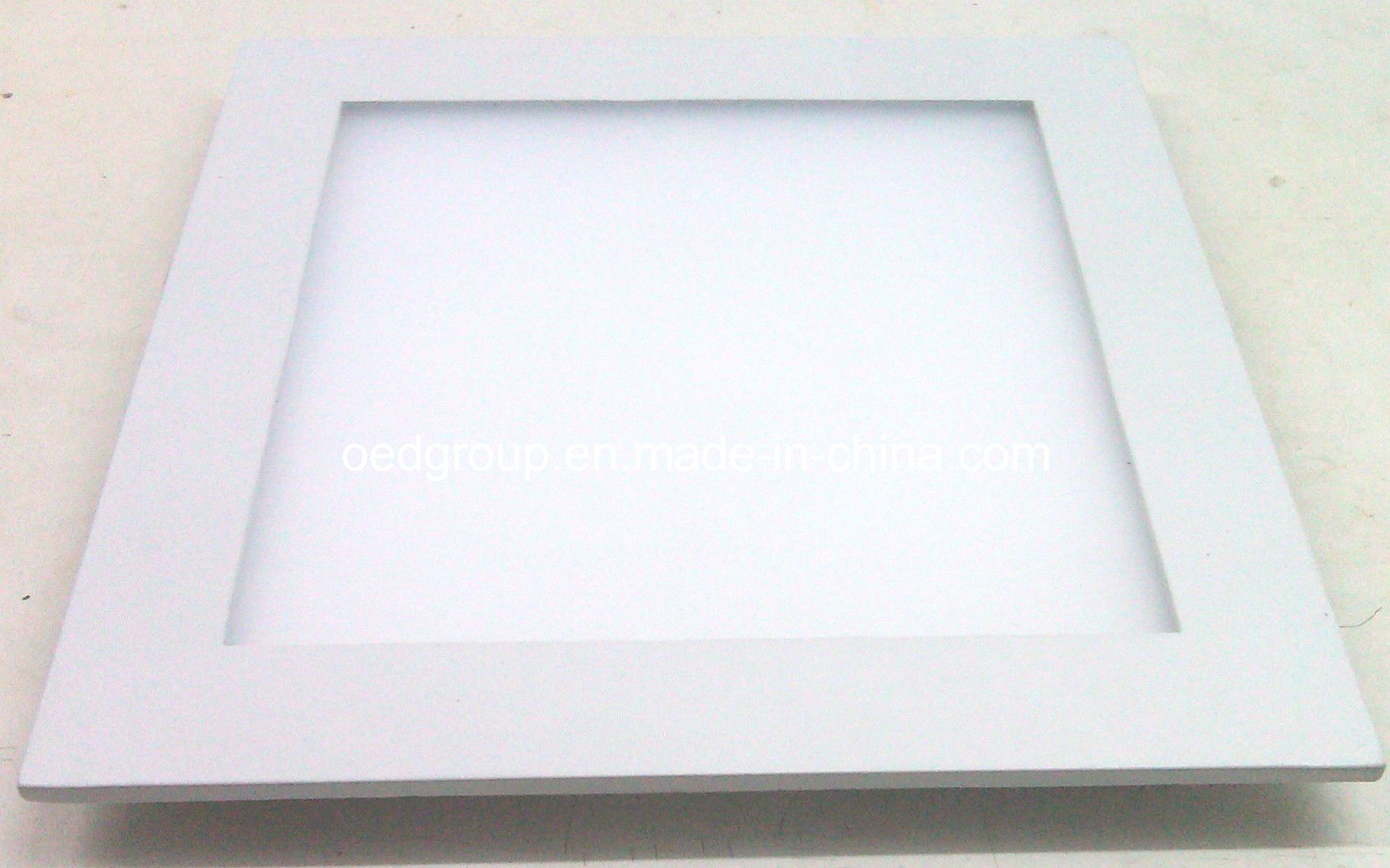

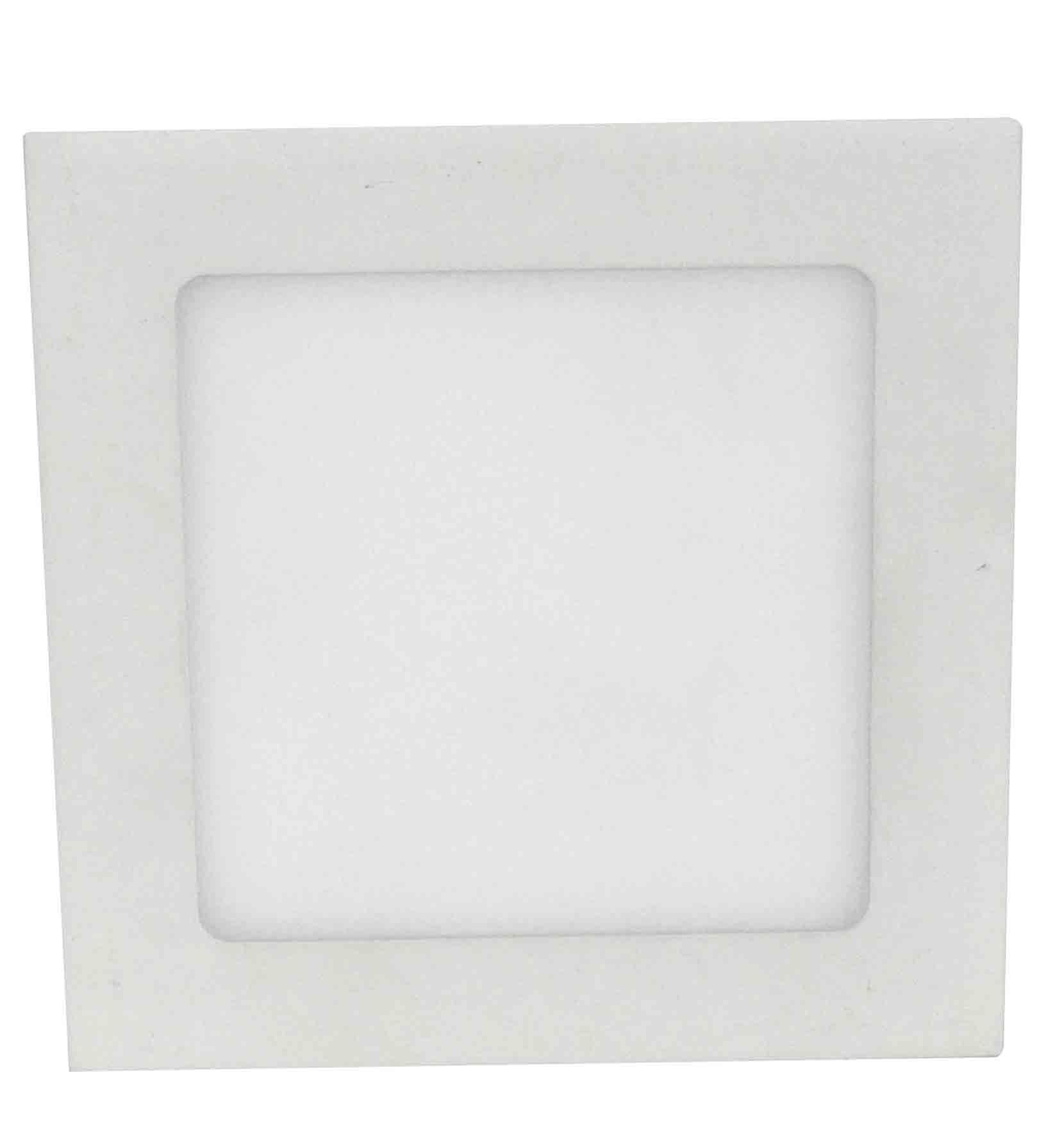

untra thin 300*300mm 24w led panel lamp
Part Number: OED-P30030024W;
Input Voltage: AC100~240V, 50/60Hz;
Input Power: 24W;
Power Factor: ≥ 0.90;
Luminous Flux: 2250-2400LM;
LED Power: 0.2W;
LED Quantitys: 120PCS 2835SMD;
Life Time: 50,000H;
LED Color: White/Warm white /Red/Green/Blue;
Color Rendering: Ra≥ 75;
Fixture Material: 6063 Aluminium;
Protection Level: IP20;
Safety Level: I Type;
Temperature: -20º C~+50 º C;
Size: 300(D) × 300 × 25(H)mm;
Cut/hole: 280*280mm
Net Weight: 0.95kg/pc
Packing: 30pcs/carton, Carton size: 45*28*49cm
Advantages:1. Ultra-thin, only 25mm,
tough and attractive silver aluminum frame with very beautiful design;
2. High quality power supply backside attached;
3. Energy-saving up to 70% with even lighting output;
4. Wide range of input voltage: 100 to 240V AC with constant current driver;
5. Instant start, no flickering, no RF interference, mercury free, RoHS standard;
6. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
7. CE RoHS listed;
8. Very competitive price.
Delivery time: 5-6 working days for samples.

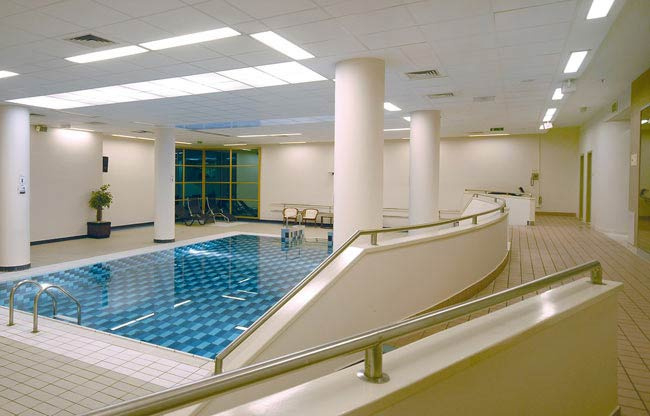

Installation: EmbeddedApplications:1. Hotel, 2. meeting room, 3. office, 4. hospital, 5. school, 6. factories, 7. museum,
8. home, 9. decorating light, 10.showing and wall light, 11.retail store, 12.commercial lighting, 13.shopping mall, 14.supermarket, 15.kitchen, 16.home indoor lighting and so on.
