| Prod Model: |
OED-DD170-12W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power;: |
12W |
| Input Voltage: |
AC85-265V |
| LED Qty: |
SMD2835 60PCS |
| P F: |
>0.90 |
| CRI: |
75 |
| Lumens: |
1000lm |
| Life Span: |
2 Years |
| Light Source: |
LED |
| Emitting Color: |
White |
| Dimmable: |
With Dimmable |
| Appearance: |
Square |
| Type: |
Hanging |
| Base Material: |
Metal |
| Certification: |
CCC |
| Voltage: |
85V-265V |
| Housing Material: |
Aluminum+PC |
| Beam Angle: |
140° |
Product Description

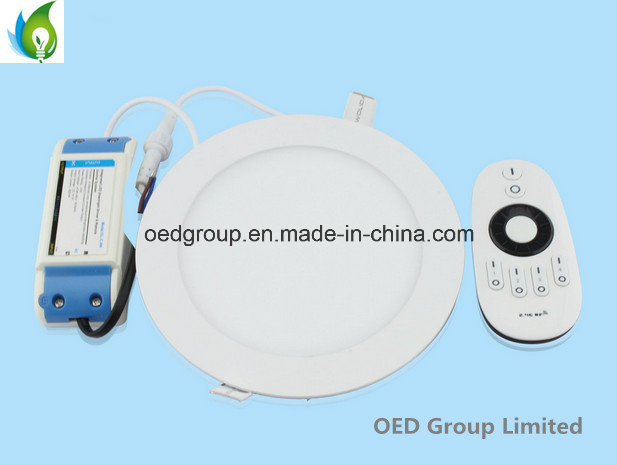

Color and CCT dimmable led panel light 12W
Describe:
Model: OED-DD170-12W
Power: 12W
Voltage:AC85-265V
Light efficiency: 80-90LM/W
With 3000K, 4500K and 6000K three colors, 2.4G dimming with R/C, and lumens can be also dimmable.
LED Chip: SMD2835 60PCS
CCT: 2700-6500K
CRI: 75Ra
Material: Aluminum+PC
Beam angle:140°
Working Temperature: -40~+50ºC
PF:0.90
IP rate:IP40
Warranty: 2 years
LED Panel Features:
1. 70% energy saving, high brightness, light uniformity.
2. All of our products with CE, RoHS standard. Anti-radio interference, lead-free, green.
3. Adopt isolated external power supply, safe and reliable
4. 50,000 hours life, reduce labor costs, replacement
5. High-quality aluminum housing, good heat dissipation, strength, not easy to deformation, surface oxidation treatment, beautiful and durable
6. Professional circuit design, each LED work separately can avoid bad influences the whole single lamp light effect
7. Light source using low power SMD LED
8. Using high optical materials to make more efficient light fixtures
9. Wide range of applications: hotels, conference rooms, factories or offices, schools, hospitals and other lighting places.
LED Panel light Application:
Shopping Mall, Museum, Meeting Room, Hospital, Office, Kitchen, Church, Bathroom, Airport, Car Park, Bathroom Room, Restaurant,Hotel,
Gallery, Sitting Room, Garage, School, Cinema, Bedroom etc.
| Power | diameter | cut hole | led chip |
| 3W | Ø90 | Ø70 | 2835/15pcs |
| 4W | Ø105 | Ø90 | 2835/20pcs |
| 6W | Ø120 | Ø100 | 2835/30pcs |
| 9W | Ø145 | Ø130 | 2835/45pcs |
| 12W | Ø170 | Ø150 | 2835/60pcs |
| 15W | Ø190 | Ø175 | 2835/75pcs |
| 18W | Ø225 | Ø200 | 2835/90pcs |
