Prod Model: |
KXZ-PL00350 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
LED |
Appearance: |
Round |
Type: |
Flat-Type |
Emitting Color: |
White |
Certification: |
CCC |
Base Material: |
Metal |
Voltage: |
85V-265V |
Dimmable: |
Without Dimmable |
Housing Material: |
Aluminum |
Beam Angle: |
114 |

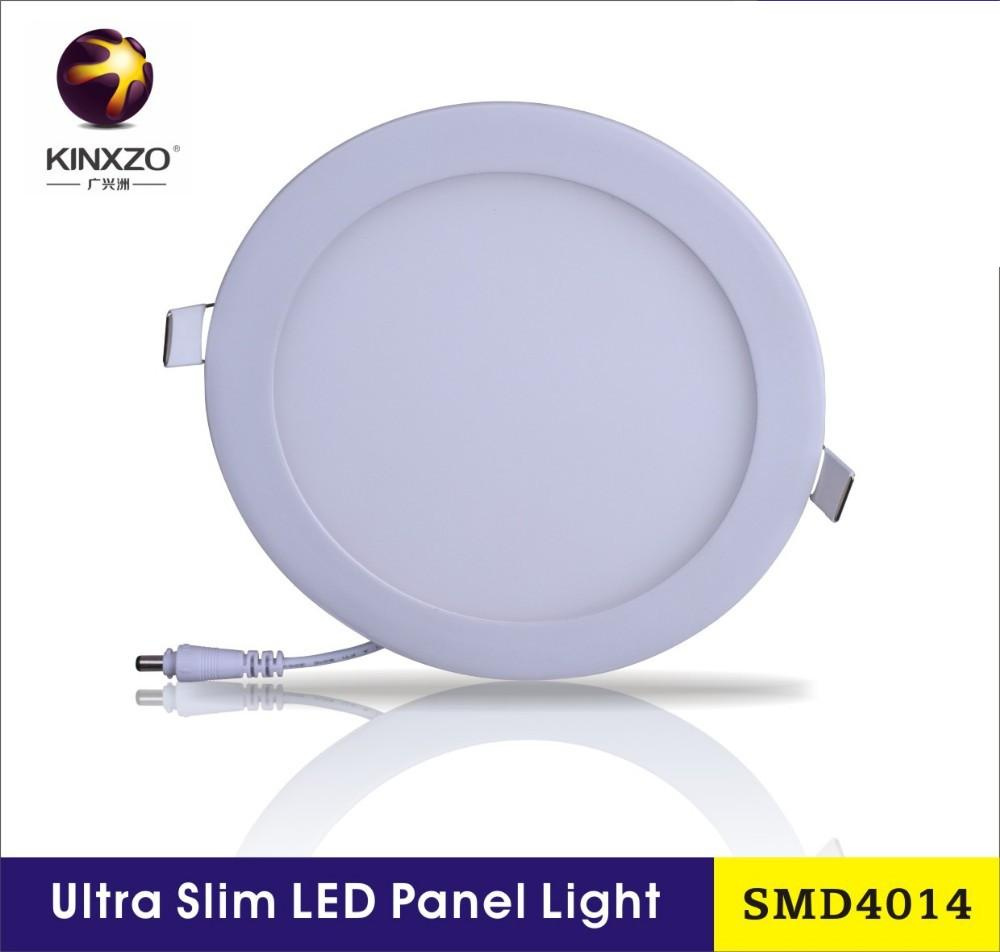

Product Description
Panel light is our hot selling products and very popular at HK fair. Pls check attached quotation of our panel light.
For our panel light, the advantages are:
1. We use SMD4014 which Sanan LED chips and packaged by Shenzhen Refond company, not use SMD2835(You must know the unit price of SMD4014 is almost twice of SMD2835)
2. We use our own brand driver, we have professional driver production, so we can control the quality(all driver is isolated)
3. We have the laser cutting machine(we do LGP by ourselves)
4. Square and circle type are available, and the prices are same.
5. We can print your logo on our products.
Model No. |
Description |
Power |
Light Source |
Lumen |
CRI |
Model Size(mm) |
Cut hole(mm) |
Voltage |
Color Temp. |
Material |
Warranty |
Housing color |
KXZ-PL00350 |
Round Panel light |
3W |
SMD4014 |
210 |
74 |
Φ85*H25 |
Φ70 |
AC85-265V/50-60Hz |
Warm White
Neutral White
Cool White |
Alu |
2 Years |
White |
KXZ-PL00450 |
4W |
280 |
Φ105*H25 |
Φ92 |
KXZ-PL00650 |
6W |
420 |
Φ120*H25 |
Φ106 |
KXZ-PL00950 |
9W |
670 |
Φ145*H25 |
Φ131 |
KXZ-PL01250 |
12W |
900 |
Φ173*H25 |
Φ157 |
KXZ-PL01550 |
15W |
1170 |
Φ200*H25 |
Φ182 |
KXZ-PL01850 |
18W |
1440 |
Φ225*H25 |
Φ205 |
KXZ-PL02450 |
24W |
1800 |
Φ300*H25 |
Φ280 |
