Size:
600*600*11mm/12.5mm
Wattage:
36W/48W/54W/72W
Cover:
PC
LED Light Source:
SMD 5630
Housing Color:
Silver
Heat Dissipation Structure:
Baseboard Heat Dissipation Structure
Power:
36W/48W/54W/72W
Finish:
Silver/White
Aprroved:
CE, RoHS, TUV, UL
Light Guide Plate:
Mitsubishi
Light Source:
LED
Emitting Color:
White
Dimmable:
With Dimmable
Appearance:
Square
Type:
Ceiling
Certification:
ISO9001
Voltage:
100-240V
Housing Material:
Aluminum with PC Cover
Base Material:
Aluminum
Beam Angle:
>110°
Product Description
Feature:
Ultra-thin LED Panel Lights 11MM

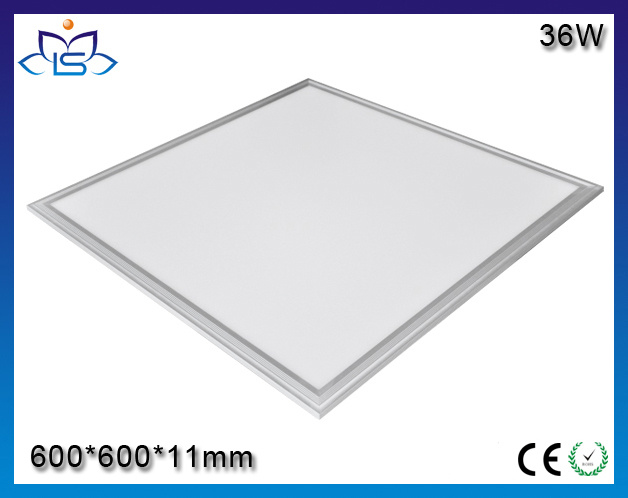

600*600*11mm/12.5mm LED Panel Light(595x595x11mm/12.5mm)
A. Voltage AC100-277V
B. Baseboard Heat Dissipation Structure
C. Wattage 36W/48W/54W/72W
D. TUV,CB,CE,GS, ROHS,PSE;
E. 3 Years Warranty
Products Character:
A:SMD5630 with Epistar chips adopted, energy saving up to 50%;
B:MOSO CE external constant-current driver adopted, with power factor over 0.95;
C:Baseboard heat dissipation structure, long life span,normal use can reach over 50,000hours;
D:Diversified installation methods can meet customers requirments.
E:two difference frames for your options.
Trade terms:
A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).
Name
IS PANEL LIGHT
Lighting Source
SMD5630
LED Chip Brand
Samsung/Seoul/Epistar
LED Quantity
120/240pcs
Driver Brand
UL External Constant-Current Driver
Power Consumption
36W/48W/54W/72W
Input Voltage
AC100-277V
Working Voltage
30-42V
Constant Current
900MA/1150MA/1280MA/1800MA
LED Luminous Efficiency
80±5lm/w/ 75±5lm/w/ 75±5lm/w/ 75±5lm/w/
Power Factor
>0.95
LED Life Expectancy
50000hours
Beam Angle
120°
Luminous Flux
3000±200lm/3800±200lm/4200±200lm/5700±200lm
Color Temperature
WW/NW/CW
Protection Grade(IP)
IP20
Color Rendering Index(Ra)
>80
Temperature Rising
Pass according to En60598
Operation Temperature
-10°~40°
Relative Humidity
Pass according to En60598
Fixture Material
Junction Box, Hanglig Cable, Screws
Cover Brand
Al R9016
Housing Color
Silver/White
Dimension/Size
600x600x11mm/12.5mm
Net Weight
4Kg
Shock Test
0.35-0.5Nm
Insulation Class
ClassII
Certification
TUV/CE/FCC/PSE/RoHS
Warranty
3years
Frame option
600*600*11mm/600*300*12.5mm
