| Prod Model: |
IS-1260-72W-A2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Quantity: |
240PCS |
| Lighting Model: |
2 Sides |
| Power(Excluding Driver): |
72W |
| Input Vol: |
AC100-277V |
| Luminous Flux: |
5200±200lm |
| Cct: |
Warm White |
| LED Luminous Efficiency: |
72±5lm/W |
| Housing Color: |
Silver |
| MOQ: |
100PCS |
| Light Source: |
LED |
| Emitting Color: |
Warm White |
| Appearance: |
Square |
| Type: |
Hanging |
| Certification: |
CB, GS, PSE TUV |
| Housing Material: |
Aluminum |
| Base Material: |
Aluminum |
| Voltage: |
110-277V |
| Beam Angle: |
120° |
Product Description
Product Name:
A. Voltage AC100-277V
B. Baseboard Heat Dissipation Structure
C. Wattage 18W/36W
B. TUV, CB, CE, GS, ROHS, PSE;
E. 3 Years Warranty
-------------------------------------------------------------------------------------------------------------------------------- Products Character:
A: SMD5630 with Epistar chips adopted, energy saving up to 50%;
B: MOSO CE external constant-current driver adopted, with power factor over 0.95;
C: Baseboard heat dissipation structure, long life span, normal use can reach over 50, 000hours;
D: Diversified installation methods can meet customers requirments.
E: Two difference frames for your options.
--------------------------------------------------------------------------------------------------------------------------------
Trade terms:
A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).
--------------------------------------------------------------------------------------------------------------------------------
| IS-126-AB |

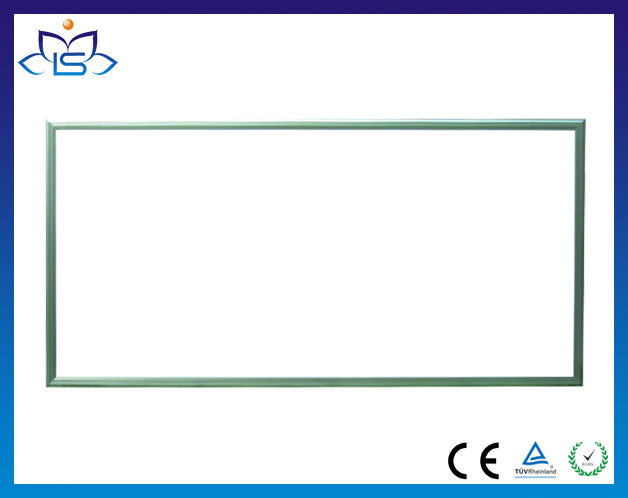

| Name | IS LED Panel Light |
| Lighting Source | SMD5630 |
| LED Chip Brand | Samsung/Seoul/Epistar |
| LED Quantity | 240pcs |
| Driver Brand | UL External Constant-Current Driver |
| Power Consumption | 72W |
| Input Voltage | AC100-240V |
| Working Voltage | 30-42V |
| Constant Current | 1800MA |
| LED Luminous Efficiency | 75+5lm/w |
| Power Factor | >0.95 |
| LED Life Expectancy | 50000hours |
| Beam Angle | 120° |
| Luminous Flux | 5500lm |
| Color Temperature | WW/NW/CW |
| Protection Grade(IP) | IP20 |
| Color Rendering Index(Ra) | >80 |
| Temperature Rising | Pass according to En60598 |
| Operation Temperature | -10°~40° |
| Relative Humidity | Pass according to En60598 |
| Fixture Material | Junction Box, Hanglig Cable, Screws |
| Cover Brand | Al 6063 |
| Housing Color | Silver/White |
| Dimension/Size | 1200x600x12.5mm/1200x600x11mm |
| Net Weight | 7kg |
| Shock Test | 0.35-0.5Nm |
| Insulation Class | ClassII |
| Certification | TUV/CE/FCC/PSE/RoHS |
| Warranty | 3years |
