Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Application:
Stage Performance
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
10mm
IP Rating:
IP43
Certification:
CE
Pixel Density:
10,000 dots / m²
System Operating Platform:
WIN XP
Product Description

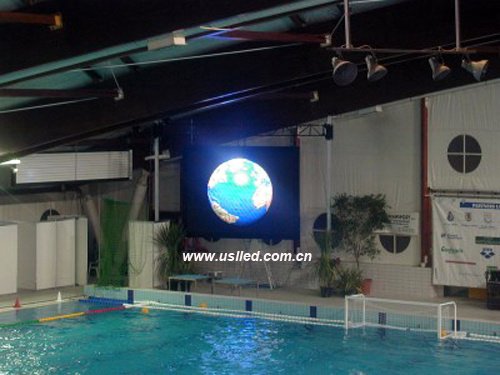

Sports Field LED Display P10mm, sport led display, Indoor LED Display P10mm
1. Slim and light weight panel, convenient to install
2. High-definition viewing effect with 281trillion colors displaying
3. Update PCB design match ideal IC, the whole display energy saving30%
4. Best white balance and color uniformity with best heat dissipation design
5. Support DOT by DOT correction function, high-definition display
6. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
7. Our engineer team have more than 15years LED display design experience
8. Top quality with best price
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
Model
ISP10
Pixel pitch
10mm
Pixel composition
3SMD in one Black body
Pixel Density per SQM
10000pixels/SQM
LED
SMD3528
Brightness
>2000CD/SQM
Scan Mode
1/8
Drive Mode
Constant Current
Panel Dimension
1280x960(MM)
Panel Dimension
50.4x37.8(Inch)
Panel Material
Aluminum
Weight
33KG/pcs
Module Dimension
320x160(MM)
Module Dimension
12.6x6.3(Inch)
Pixel Matrix per Module
32x16pixels
Pixel Matrix per Panel
128x96pixels
Refresh Rate
≥2000HZ
Contrast ratio
3000:1
Gray Scale per Color
65536Level
Colors
281trillion
Viewing Angle(H/V)
300/100(deg)
IP Rate (Front /Rear)
IP43
Power Consumption ( Max /Avg)
300/100(W/Panel)
Input Voltage(AC)
110V-240V
Operating Temperature
-20deg---+60deg
Operating Humidity
10%_95%RH
Source Compatibility (with Video Processor)
AV, S-Video, VGA, DVI, HDMI, SDI, DP
Shenzhen USL Optoelectronics Technology Co., Ltd. established on DEC of 2009 year, focus on LED Display innovation, development and production, our core technicians average experience in LED display research and production field more than 15 years, our products focus on Outdoor Full color LED Display both rental and advertising, in order to meet outdoor LED display market higher definition, best viewing effect requirement and convenient our clients to operate LED display and save cost both transport and labor, we already push outdoor SMD P6, P8, P10 LED panel with wider viewing angle, in the future USL will continue our LED display target "stable quality of products, convenient clients, creative value for clients", promote LED display innovation and development.
Meanwhile, USL make quality as life, quality and specialty is our exist foundation, we strictly guide production according to ISO9001, ISO14000, TS16949 international management rules and quality management system, from martial choice to each procedure of production, we have special QC to check and test by instruments, also after long years cooperation and good reputation, USL with our suppliers together formed one mature and complete supply chain, fully practice complementary advantage, efficient operation, based on this virtuous beneficial cycle, further firmly stable our quality again. "Top quality with best price" is our production target, all our products have CE and RoHS certification.
USL Specialize in Outdoor LED Display, Indoor LED Display, Traffic LED Signs match with LED Display Modules, which convenient our experienced clients to assemble display their local place, save cost win time, assist maximum clients value, Customize is our most outstanding feature, all display modules is our own design, very good capability with stable lighter structure together, great convenience to clients, now our display already export to England, Romania, Indonesia, Malaysia, Thailand, Vietnam, Philippines, Sri Lanka, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Finland, France, Grace, Portugal, Poland, Spain, USA, Canada, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
As one responsible and creative LED Display Enterprise, USL will solid step of the way in the future with all our clients friends!
