Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
CE
Pixel Density:
3906dots/Sqm
Average Power Consumption:
250W/Sqm
Product Description

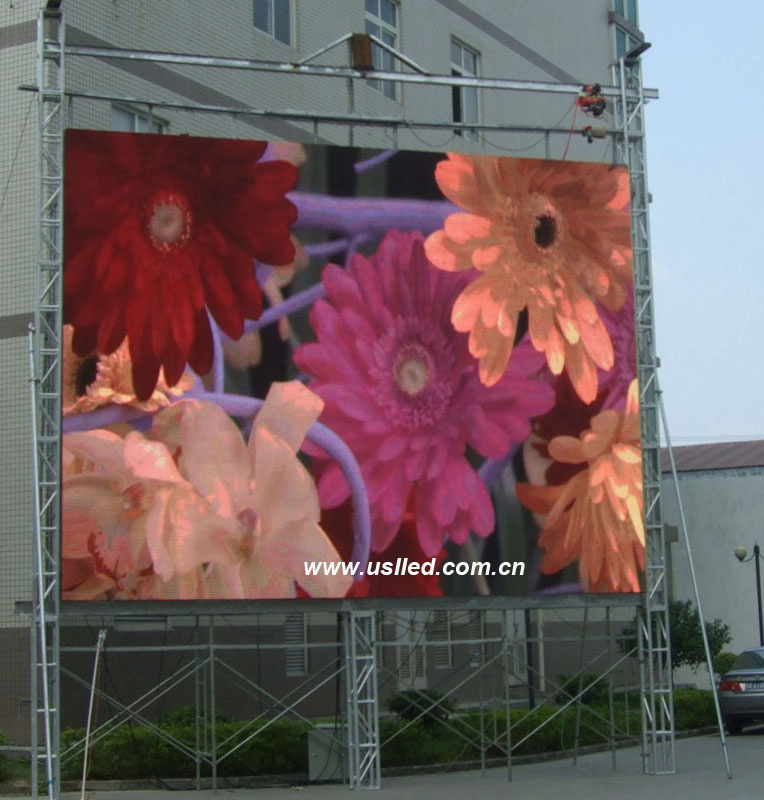

Outdoor LED Video Display , rental LED Display screen P16mm ,rental LED Display DIP ,Outdoor rental LED Display
Product Description:
1. High brightness and adjustable according to the application environment LED Display
2. Update PCB desgin match ideal IC, the whole LED display energy saving30%
3. Each color processing 16bit, 281trillion colors vividly displaying LED Screen
4. Best white balance and color uniformity with best heat dissipation design
5. Modular design, standard cabinet, easy and fast to install
6. Support DOT by DOT correction function, high-definition display
7. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
8. Our engineer team have more than 15years LED display design experience
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
Model
ODP16
Pixel pitch
16mm
Pixel composition
1 red, 1 green and 1 blue LED
Pixel Density per SQM
3906pixels/SQM
LED
DIP346
Brightness
>6500CD/SQM
Scan Mode
Static
Drive Mode
Constant Current
Panel Dimension
768x768(MM)
Panel Dimension
30.24x30.24(Inch)
Panel Material
Aluminum
Weight
27KG
Module Dimension
256x256(MM)
Module Dimension
10.08x10.08(Inch)
Pixel Matrix per Module
16x16pixels
Pixel Matrix per Panel
48x48pixels
Refresh Rate
≥3000HZ
Contrast ratio
3000:1
Gray Scale per Color
65536Level
Colors
281trillion
Viewing Angle(H/V)
120/60(deg)
IP Rate (Front /Rear)
IP65/IP54
Power Consumption ( Max /Avg)
450/150(W/SQM)
Input Voltage(AC)
110V/220V
Operating Temperature
-20deg---+60deg
Operating Humidity
10%_95%RH
Source Compatibility (with Video Processor)
AV, S-Video, VGA, DVI, HDMI, SDI, DP
