Brightness:
6,000nits
Viewing Angle:
140/140
Panel Weight:
42kg
Panel Width:
1152mm
Panel Height:
576mm
Panel Depth:
200mm
Resolution Per Panel:
192 X 96
Panel Material:
Epoxy Paint Coated Cold Rolled Steel
Mounting System:
Fixed with 4PCS M10 Bolts
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Pixel Configuration:
3in1 SMD
Product Description

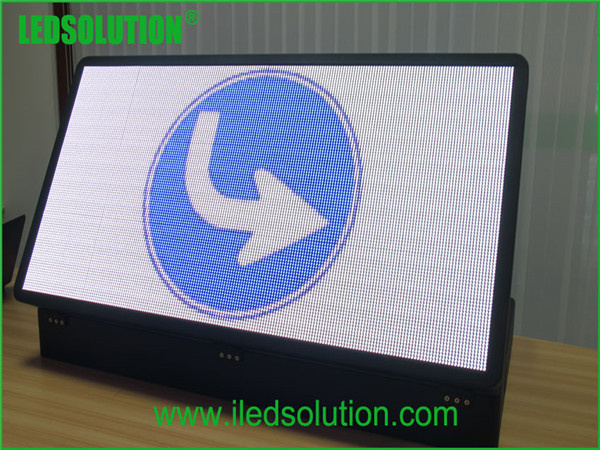

P6 SMD Outdoor LED Display
The Outdoor SMD LED Display use state-of-art outdoor application LEDs, the display brightness can be comparable with DIP oval LED Display but with much wider viewing angle reach to 140 degree both horizontal and vertical. The LEDs has the advantage of UV against.
Features of the outdoor SMD LED Display: *Wide viewing angle: Horizontal 140degree, Vertical 140degree *Weatherproof to IP65 standards *UV against *Easily configured for various size and aspect ratios *Brightness from 6000 nits onwards
LEDSolution LED Display:
Parameter
Unit
Value
Pitch
mm
6
Brightness
nits
6, 000
Color temperature
deg. K
6, 500
Viewing angle Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
50
Panel width
mm
1152
Panel height
mm
576
Panel depth
mm
200
Panel area
sq. m.
0.664
Panel material
Epoxy paint coated Cold rolled steel
Ingress protection (front/rear)
IP
IP65/IP43
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
192 x 96
Dot per panel
9, 216
Dot per sq. meter
13, 888
LED per sq. meter
13, 888
Recommended minimum viewing distance
m
10
Recommended best viewing distance
m
13~34
Colors
1, 073.7 millions
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts /sq. m.
860
Input power (typical)
Watts /sq. m.
344
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
525~530
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Fixed with 4pcs M10 bolts
