Panel Size:
500X500mm
Brightness:
1,500nits
Viewing Angle:
140/140
Resolution Per Panel:
128X128
Mounting System:
Hanging / Fixed
Display Color:
281 Trillion
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Advertising
IP Rating:
IP43
Certification:
CCC
Pixel Pitch:
3.91
Pixel Configuration:
3in1 SMD
Pixel Density:
16,384 Pixels/Sqm;
System Operating Platform:
Windows7, Vista, XP, 2000, 98
Product Description
P3.91 Die-cast Indoor Rental LED Display
LEDSOLUTION's P3.91 indoor die-cast aluminum LED display is a new product. It's extremly light, perfect for rental or fixed installation.
Main Benifits: 1) Light: only 6kg/panel. 2) Thickness: 78mm 3) Easy assembly & disassembly by hands without tools. 4) Excellent flatness 5) Seamless tiled display 6) Long durability and High Reliability 7) Energy Efficient 8) Superb Picture Quality .
Specifications:
Parameter
Unit
Value
Pitch
mm
3.91
Brightness
nits
1,500
Color temperature
deg. K
6,500
Viewing angle - Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
6
Panel width
mm
500
Panel height
mm
500
Panel depth
mm
78
Panel area
sq. m.
0.25
Panel material
Epoxy paint coated Aluminum
Panel Mode
Die-Cast rental
Operating temperature range
deg. C
-20 to +60
Humidity operating
RH
10% ~ 60%
Pixel type and configuration
R/G/B
3-in-1 SMD
Resolution per panel
128x128
Dot per panel
16,384
Dot per sq. meter
65,536
LED per sq. meter
65,536
Recommended minimum viewing distance
m
2.98
Recommended best viewing distance
m
3~100
Colors
281 Trillion
Grey scale (linear)
Levels
65,536
Brightness control
Levels
256
Contrast ratio
2,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts / panel.
300
Input power (typical)
Watts / panel.
120
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging/Fixed

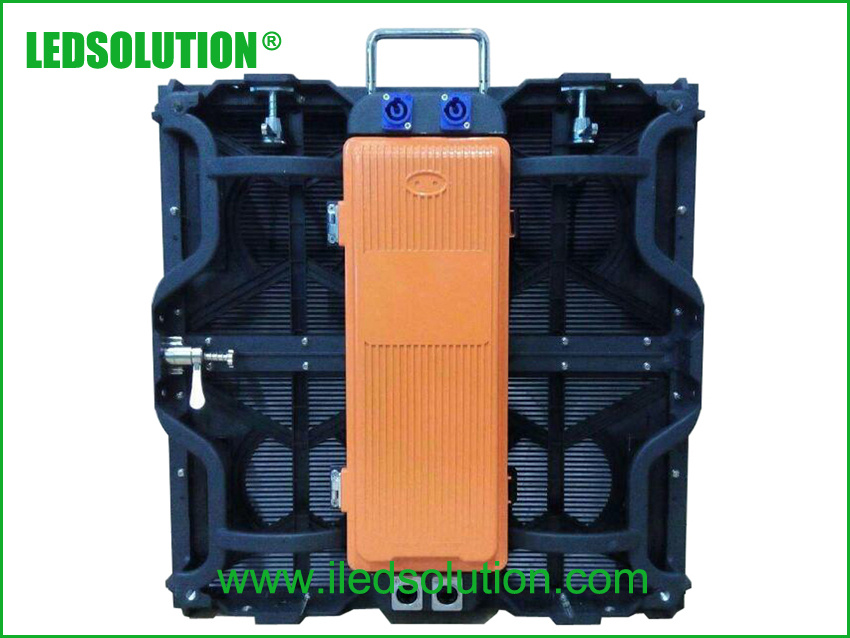

Product photos:
