North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:
1,500nits
Panel Weight:
9.4kg
Panel Width:
500mm
Panel Height:
500mm
Panel Depth:
94mm
Resolution Per Panel:
80X80
Panel Material:
Die-Cast Aluminum
Panel Mode:
Slim Rental
Mounting System:
Hanging / Fixed
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Certification:
ETL
Application:
Stage Performance
IP Rating:
IP40
Pixel Configuration:
3in1 SMD
Pixel Pitch:
6.25mm
Pixel Density:
25, 600 DOT/Sqm
System Operating Platform:
Windows7, Vista, XP, 2000, 98
Product Description

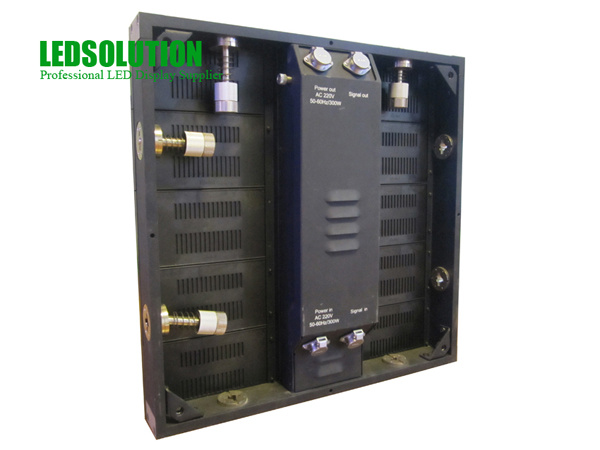

LED display, Slim LED display, Slim LED screen, Slim cabinet LED display, Lightweight LED display, Indoor LED display:
Slim LED display is light in weight, about 40kg/sqm; Quick and easy assembly; Perfect for rental applications; Low power consumption.
Parameter
Unit
Value
Pitch
mm
6.25
Brightness
nits
1, 500
Color temperature
deg. K
6, 500
Viewing angle - Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
9.4
Panel width
mm
500
Panel height
mm
500
Panel depth
mm
94
Panel area
sq. m.
0.25
Panel material
Die-cast aluminum
Panel Mode
Slim rental
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
80x80
Dot per panel
6, 400
Dot per sq. meter
25, 600
LED per sq. meter
25, 600
Recommended minimum viewing distance
m
5
Recommended best viewing distance
m
7~21
Colors
1, 073.7 million
Grey scale (linear)
Levels
1, 024 levels per color
Brightness control
Levels
100
Contrast ratio
1, 000: 1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3, 000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts /panel.
300
Input power (typical)
Watts /panel.
120
Lifetime (50% brightness)
Hours
≥ 100, 000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging / Fixed
